45
5. Operation and maintenance devices
5.7.2. Pivotable motor bracket (optional)
To pivot the motor bracket follow these points:
1. Make sure that the motor is switched off.
2. Take off the drive belt cover (1).
3. Remove the bolt (2) (AF 30) from the motor bracket support (between Service-Center
and infeed chute) and open the eccentric lock (3).
4. The motor can be rotated up to the block. The safety bolt (4) locks automatically. The
motor cannot be started in this position. Cover the motor bracket support while
maintenance work (rag or similar).
5. Lift up the safety bolt (4) and rotate the motor back. Pull the motor into working
position with the eccentric lock (3). Watch out for the drive belt to fit right onto the
pulley
6. Secure the motor bracket with the bolt (2) (AF30).
7. Close and secure the drive belt cover.

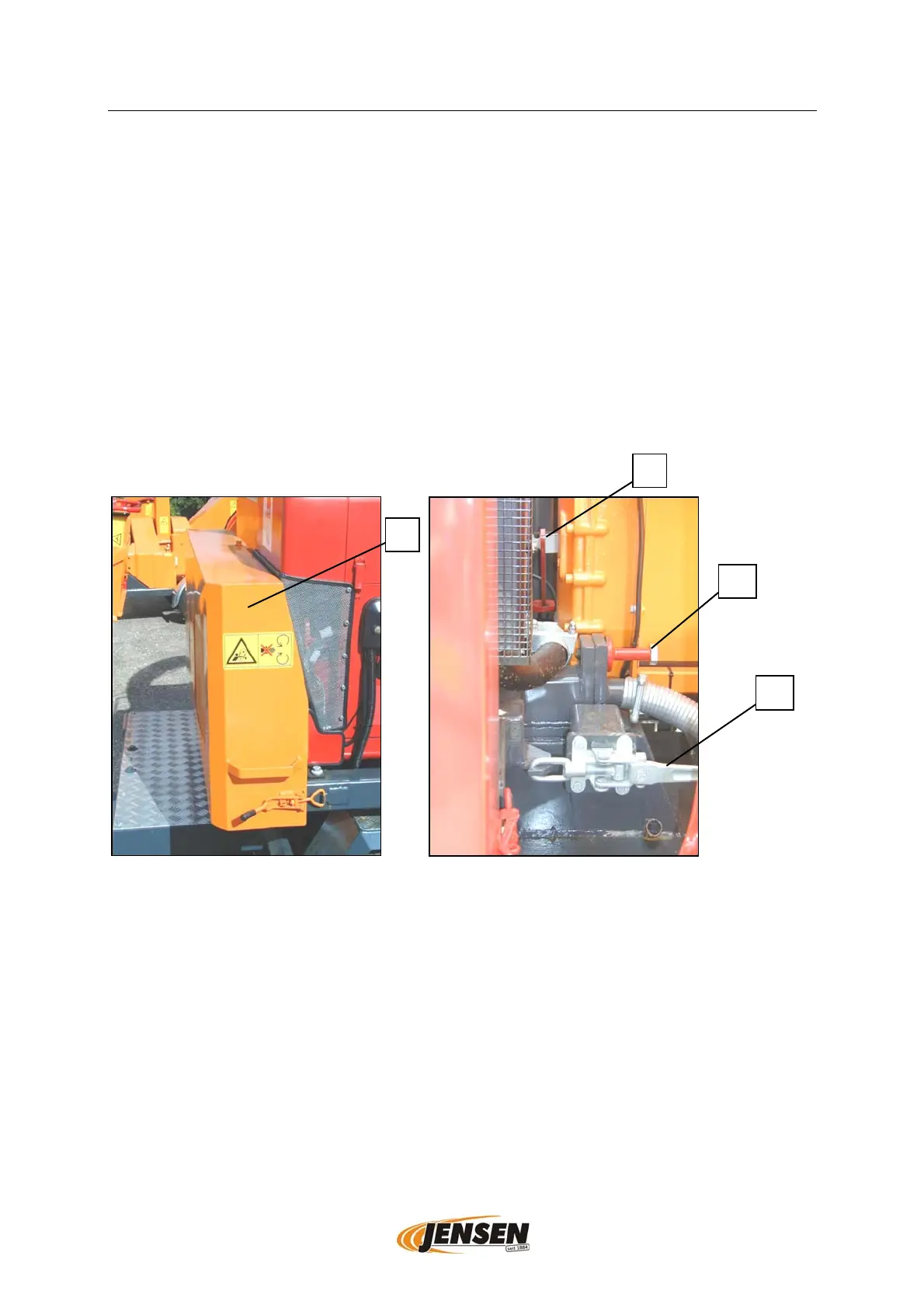

Swivel mechanism for the motor bracket Schematic display, differences in design and type possible.
5.7.3. Cover safety switch
For maintenance work the ejector cap and the engine cover (optional) can be opened.
When opened a safety switch inhibits the motor from starting.
5.7.4. Tools
Every machine has a lockable toolbox incl. tools.
1
4
2
3
