 Assemble lower thrust washer and pulley and reinstall the pulley pin to
hold these in place.
 Assemble four more thrust washers (as shown) and the top pulley with
front left cable 2-1360 wrapped around the pulley. Push pulley pin further
up to hold these in place.
 Install remaining thrust washers and 1" spacer then complete assembly of
pulley pin and lock in place with hardware.
 Install rear right cable 2-1363 around the lower pulley.

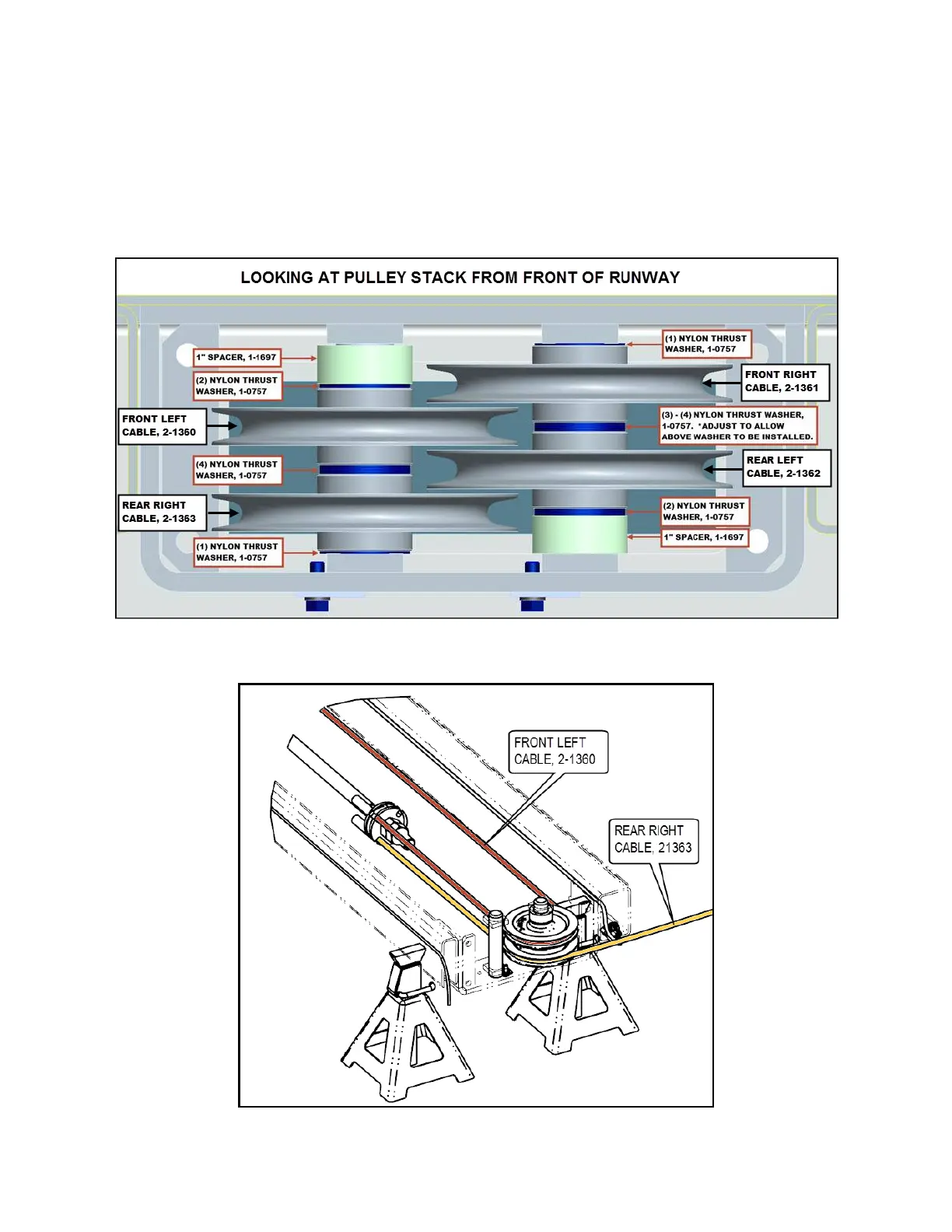

Figure 7. Rear Pulley Stack Assembly
Figure 8. Front Left and Rear Right Cable Installed at Rear
