5.2 Preparation
• The operator should be familiar with the warnings
and cautions.
• The operator should be qualified to work with the
unit.
• Always make sure that the wheel guard (when fitted)
is raised and the gauge arm is in the idle position
(on the far left) when the unit is turned OFF.
5.2.1 Power up
• Do not keep any key pressed!
See Figure 5.2.1-1.
• Plug the mains cable plug into the power outlet.
PLEASE READ THROUGH THE OPERATION
MANUAL AND FOLLOW THE INSTRUCTIONS,
ESPECIALLY WHEN OPERATING THE WHEEL
BALANCER FOR THE FIRST TIME.

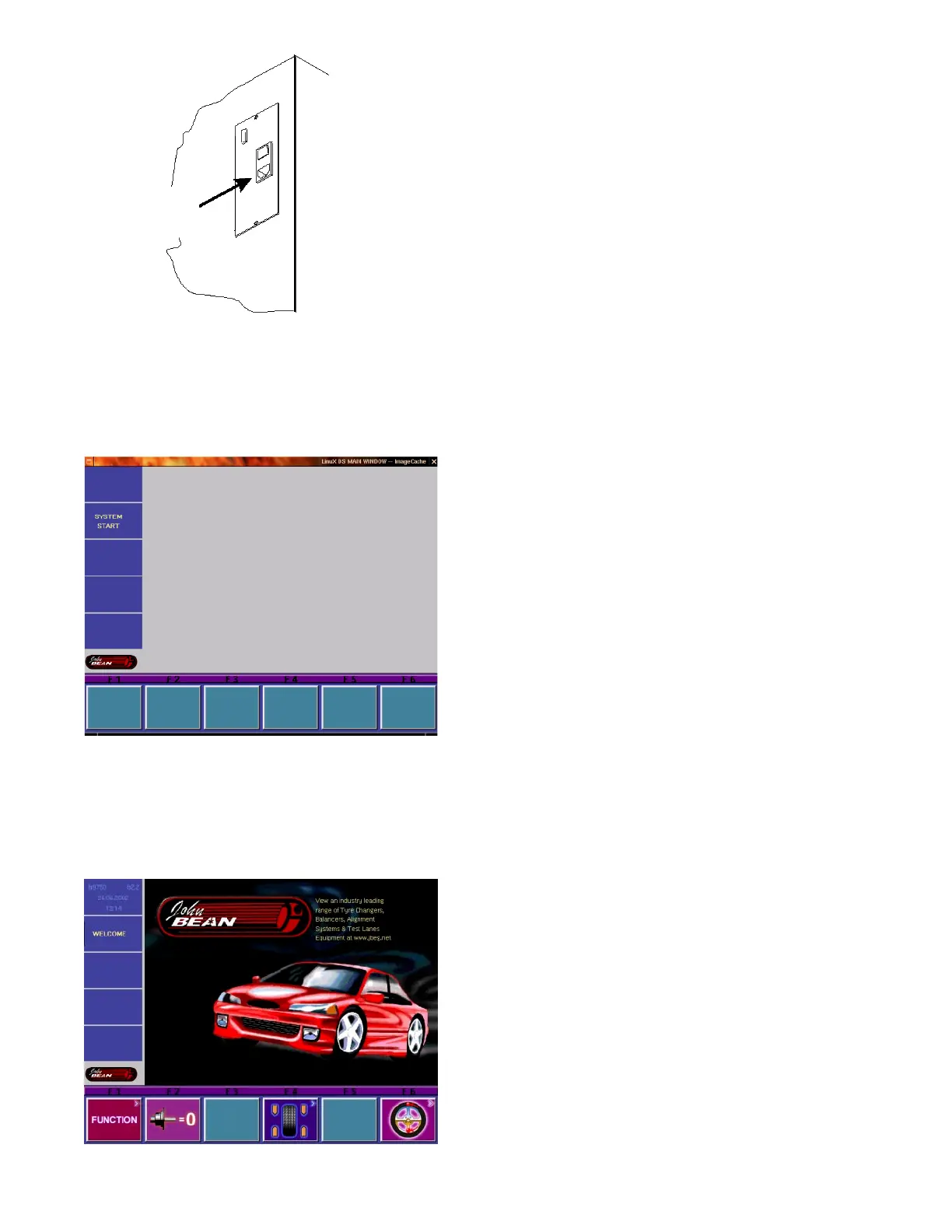

Switch on the machine by the mains switch (1 Fig.
5.2.1-1). The electronic unit now performs a number of
self-tests during which the screen views SYSTEM
START (Fig. 5.2.1-2).
As long as the machine is carrying out the self-tests,
no inputs and no other operations whatsoever must be
made. During this starting phase the machine must not
be subjected to even the slightest vibrations.
Upon completion of the self-tests a melodious signal is
heard, the screen shows the main menu (Fig. 5.2.1-3)
and the machine is ready for operation.
Fig. 5.2.1-3 Main menu
The menu fields of the function keys F1 to F6 show:
F1 Change to the screen FUNCTION
F2 Carry out compensation run
F3 Not assigned
F4 Change to the screen BALANCING
F5 Not assigned
F6 Change to the screen OPTIMIZATION MENU
Error codes at power on
If an error code occurs it must be acknowledged by
pressing the STOP key or the ESC key. No audible
signal is given.
The following malfunction codes may occur at power-
on:
Blue Screen
The communication between the micro controller and
em-bedded PC is interrupted.
• Check connecting lead
E900
Unknown machine model.
E901
The machine is not calibrated.
E89
