11
2.6 INSTALLATION PRECAUTIONS (Floor Level)
All models of Wheel Balancers have to be placed on a well levelled ! oor (± 1º tolerance). If you have already veri" ed
the ! oor levelling, skip this section, otherwise proceed as explained below.
Remove the weights tray and check the levelling by mean of a spirit level or electronic inclinometer.

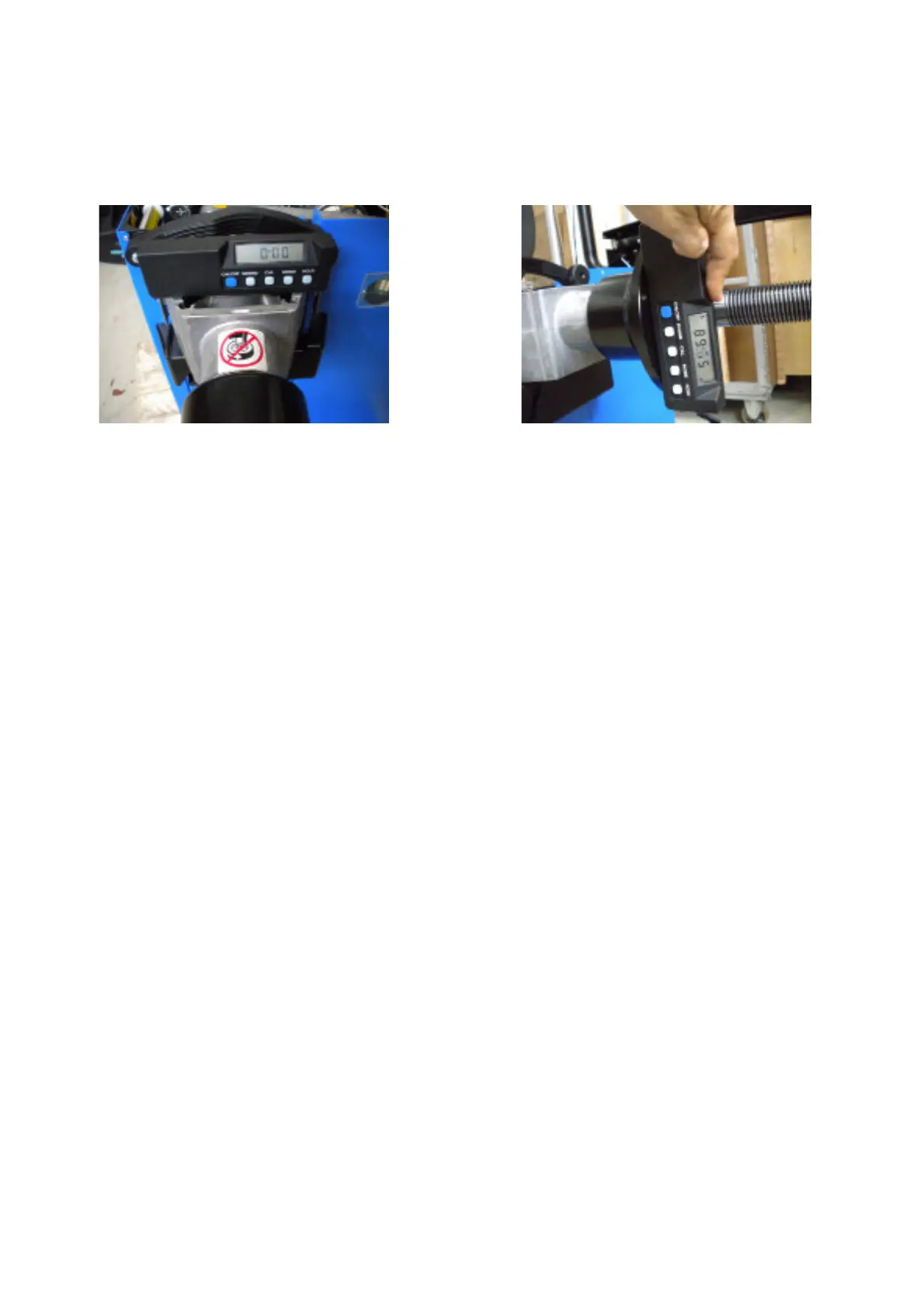

1. Put the level on the vibratory system (Fig.1). The value must be 0° ±1º.
2. Put the level vertically on the ! ange (Fig.2). The value must be in the range 90º± 1 °.
Fig.1 Fig.2
