12
CHAPTER 3
BALANCER COMPONENTS
3.1 INTRODUCTION
The balancer is manufactured with the following main components:
Ø INTEGRATED IBP BOX
Ø VIBRATORY ASSEMBLY
Ø BRAKING SYSTEM
Ø SAPE ARM

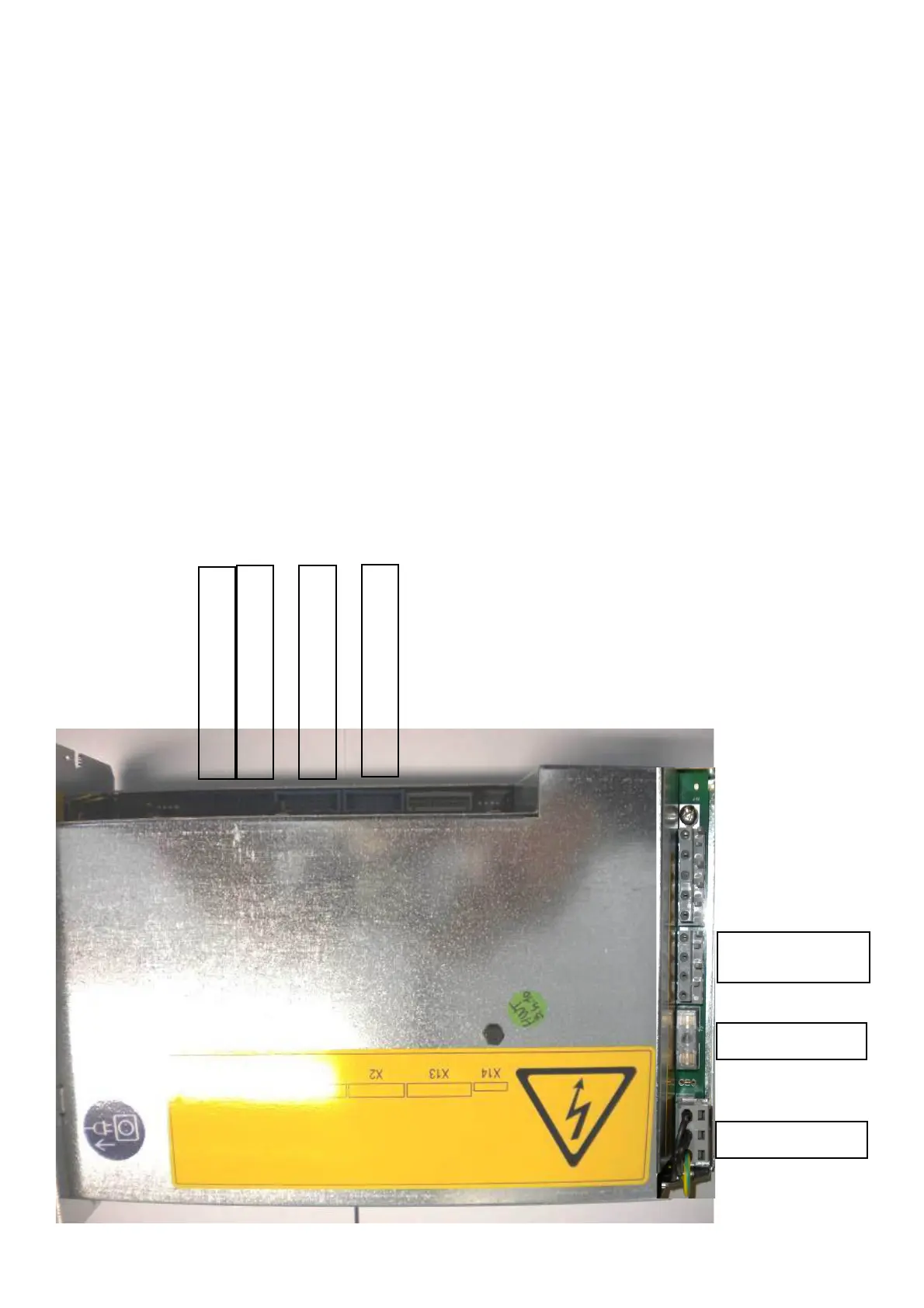

3.2 INTEGRATED IBP ASSEMBLY
The IBP box consists in a Controller Board integrated with the Power Supply.This retrofi t box allows an easier softwa-
re installation because it can be done via MMC/SD card from the back of the box without remove the balancer weight
tray and the cover of the Electronic box. The IBP box contains the following components:
Ø Power Entry Module
Ø Controller board integrated with the Power Interface Board
Ø Motor Capacitors
The IBP contains a processor and the memory EEP1 on which is running the Kernel or BK.
The Kernel is the group of instructions that allow to the wheel balancer to perform the balancing operations
Fuse
X42 Motor out
X41 Power supply
X2 Keypad
X3 Optoencoder,
X7 Off set potentiometer
X6 Diameter potentiometer
To Next Page
