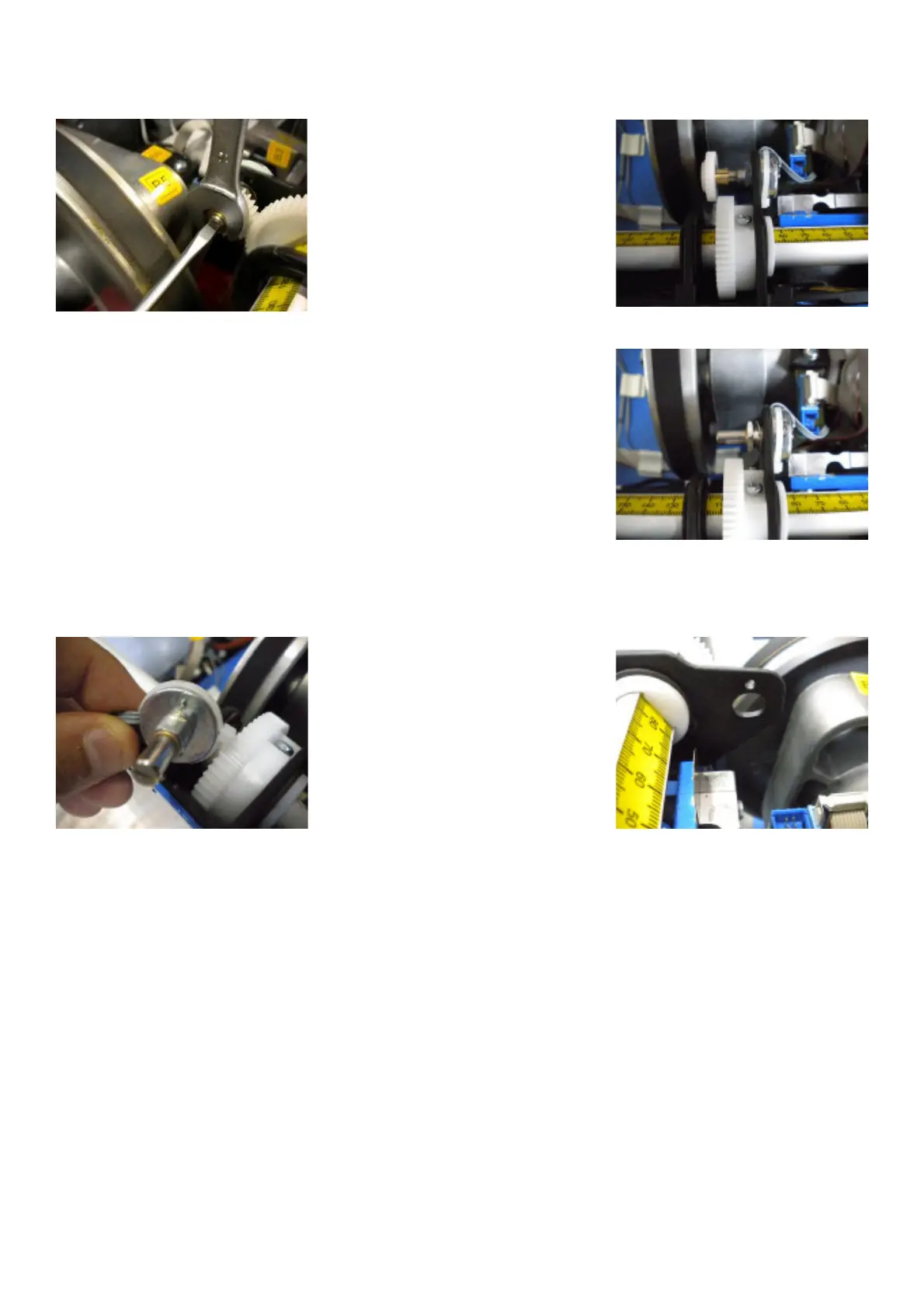

Ø Remove the 10mm nut holding the SAPE wheel to the mounting bracket and slide the cog wheel off of the
potetiometer shaft.
Ø Remove the conical bushing.
Ø Remove the 13mm nut holding the potentiometer to the frame.
Ø Install potentiometer onto bracket and tighten 13mm nut.
Ø Install cog wheel onto potentiometer shaft and hand. Tighten nut.
Ø Attach SAPE harness to Processor Board.
Ø Turn on the machine
Ø Run service code C80, C81 for SAPE calibration.
Ø Mount the weight tray.
Ø Check if the machine works fine.
4.20 CHECK AND REPLACEMENT OF HOOD SWITCH
" : Medium and big philip screwdriver, 5mm wrench, electronic inclinometer.
6 : 1h
i : Defective hood switch may cause the following malfunctions:
1. Lowering the wheel guard the wheel does not start.
2. The balancer shows E2
TO CHECK THE SWITCH
Ø Check with service code C56. When the wheel guard is lowered it should show 100.
