Technical description
Compressor description

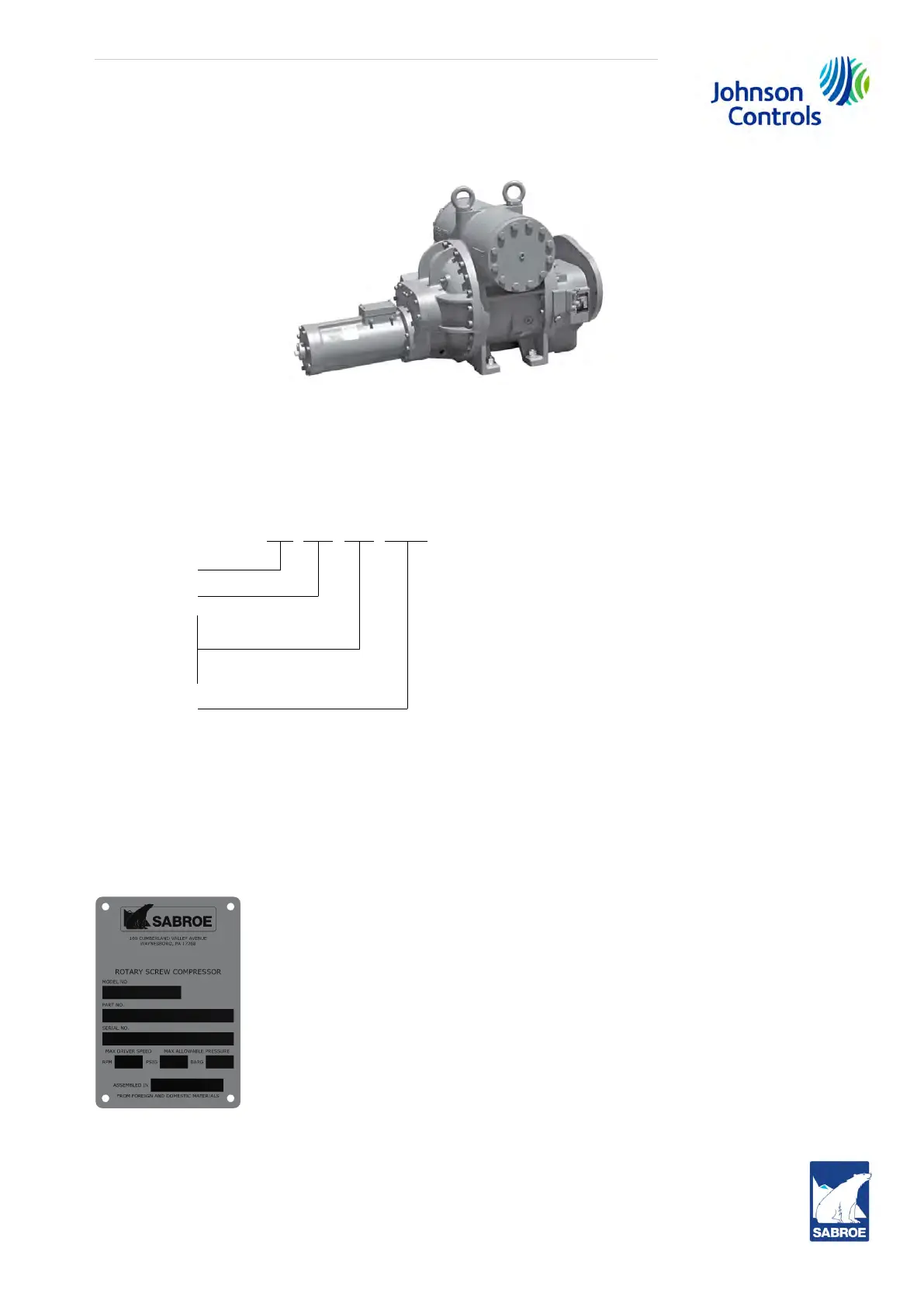

Fig. 11: Screw compressor
The screw compressor unit type SAB 193 S, L, includes the SGC compressor series, types SGC
1913 and SGC 1918.
The drawing below illustrates and explains the compressor name:
Fig. 12: Model and serial number explanation
Chapter 6. Technical data contains a list of tables of the screw compressors indicating weight, di-
mensions and geometric swept volume, among other things.
The compressor type is stated on the name plate shown in Fig. 13 and all compressors are equip-
ped with such a name plate. See details in chapter 2. Signs and warnings.
The serial number of each compressor is stamped into the compressor block.
Fig. 13: Compressor name plate
Always state the compressor serial number when contacting Johnson Controls Denmark.
L
R otor diameter
Compressor
S erial number
SGC 193
R otor
S hort - S
Long - L
E xtended - E
1001A
