INDOOR UNITS

3-8

TC-15001-rev.3

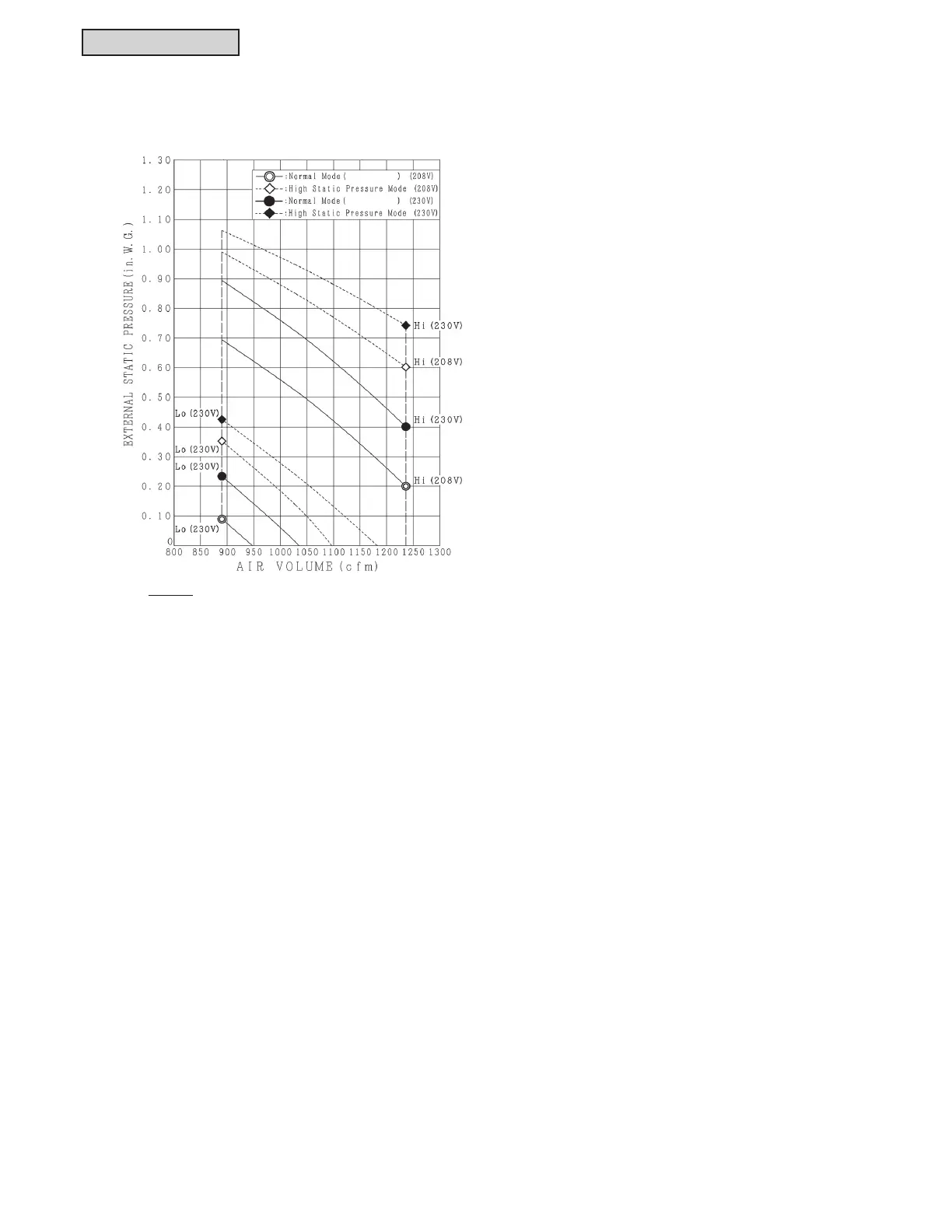

(H,Y)IDH048B21S

NOTE:

The settings for Normal and High Static Pressure Mode can be changed by changing the position of the

connector inside of the indoor unit.
