5.4.2 Filter Box: B-160H3
6SHFL¿FDWLRQV
Model
Item
B-160H3
Applicable Indoor Unit Model
((H,Y)IC4**B21S)
MBH 012 to 036
Material
Polyethylene, Galvanized Steel Plate,
EPDM-FO, Polystyrene
Color of Foam Bluish Gray
Weight lbs (kg) 5.5 (2.5)
Applicable Air Filter F-71M-K2 F-160M-K2
NOTES:
7KHWRWDOKHLJKWRIWKHXQLWLVLQFUHDVHGE\DSSUR[LPDWHO\LQFKPPZKHQWKH¿OWHUER[LV
installed. Pay attention to the amount of space needed for installation.
2. Refer to the “Installation Manual for Filter Box” for installation details.

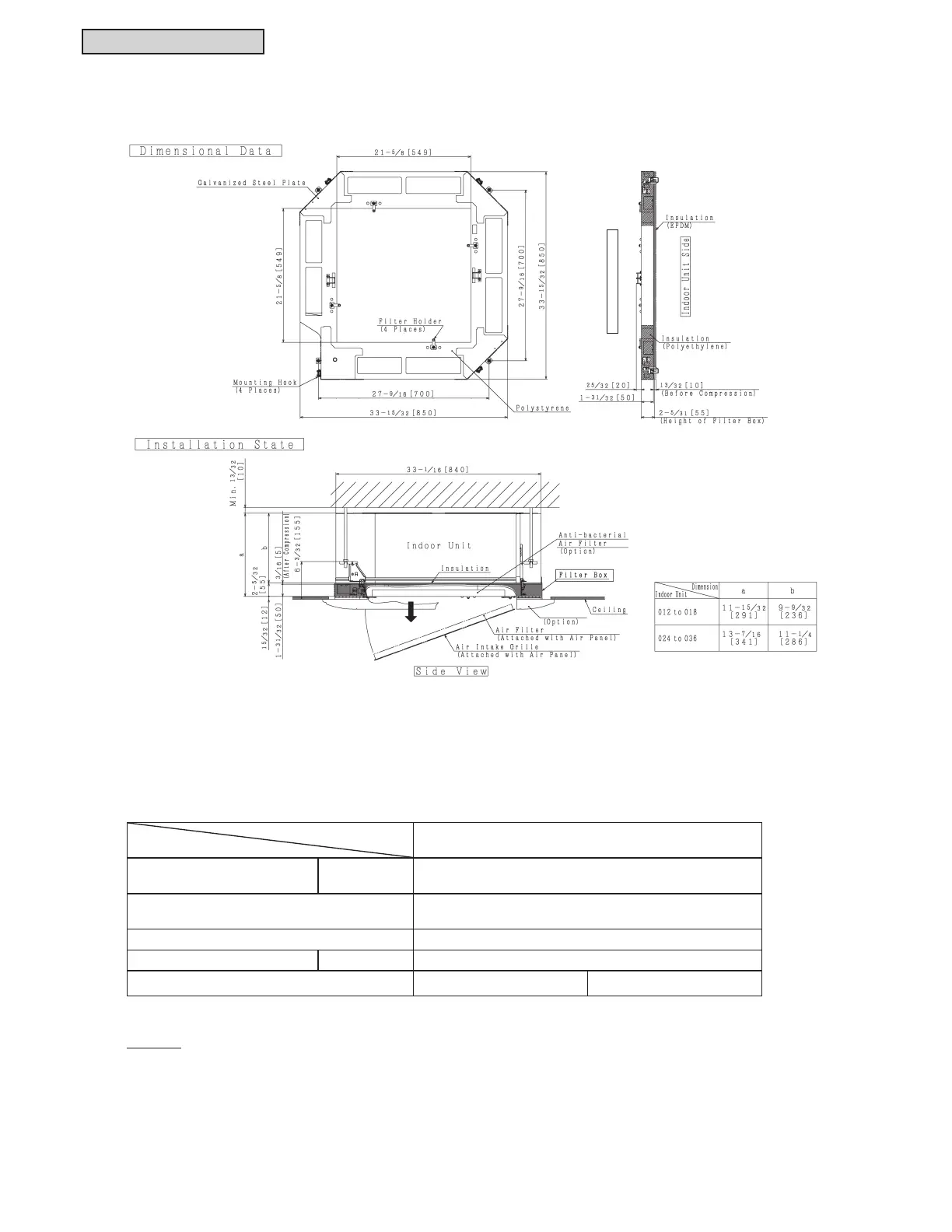

Unit: inch [mm]
(Decorative Panel Mounting Position)
(Decorative Panel Mounting Position)
Decorative Panel Side
MBH
MBH
Panel
Decorative
