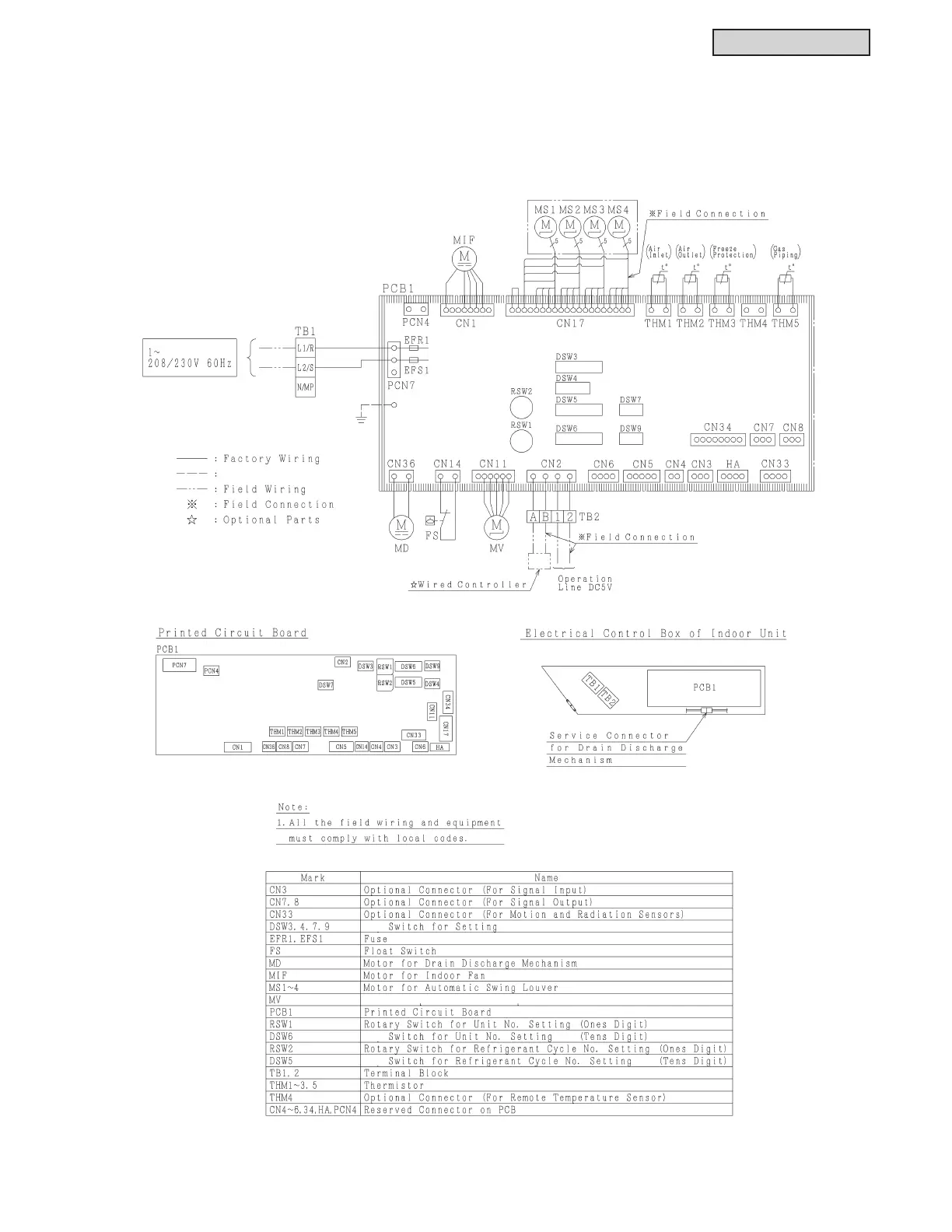

3.2.11.4 Wiring Diagram
Models: (H,Y)IC4012B21S, (H,Y)IC4015B21S, (H,Y)IC4018B21S, (H,Y)IC4024B21S
(H,Y)IC4030B21S and (H,Y)IC4036B21S with Decorative Panel P-AP160NA2
Decorative Panel
DIP
DIP
Electronic Expansion Valve
Ground Wiring
DIP
