5.3 Ducted Models
5.3.1 Air Filter
Ɣ'XFWHG+LJK6WDWLF
Model Applicable Model
KW-PP8Q (H,Y)IDH018B21S
KW-PP3Q (H,Y)IDH024 ~ 030B21S
KW-PP4Q (H,Y)IDH036 ~ 048B21S
Ɣ'XFWHG0HGLXP6WDWLF
Model Applicable Model
KW-PP7Q (H,Y)IDM006 ~ 012B21S
KW-PP8Q (H,Y)IDM015 ~ 018B21S
KW-PP9Q (H,Y)IDM024 ~ 030B21S
KW-PP10Q (H,Y)IDM036 ~ 048B21S
Ɣ'XFWHG6OLP
Model Applicable Model
KW-PP5Q (H,Y)IDS006 ~ 012B21S
KW-PP6Q (H,Y)IDS015 ~ 018B21S
Air Filter
Air Filter
Air Filter
< KW-PP3Q, KW-PP4Q >
< KW-PP5Q, KW-PP6Q >
< KW-PP7Q, KW-PP8Q, KW-PP9Q, KW-PP10Q >
Suction Flange
Suction Flange
Suction Flange
2-1/4 [57]
2-1/8 [54]
b
Filter Aluminum Frame
Filter
Aluminum Frame
Side Plate
(2 Places)
a
b
a
7-17/32
[191]
a
13-15/32 [342]
Holder of
Air Filter
(4 Places)
b
12-7/16 [316]
Filter Aluminum Frame
c
d
2-1/8 [54]
19/32 [15]
25/32 [20]
6-1/2
[165]
25/32 [20]
Holder of
Air Filter
(4 Places)
Unit: inch [mm]

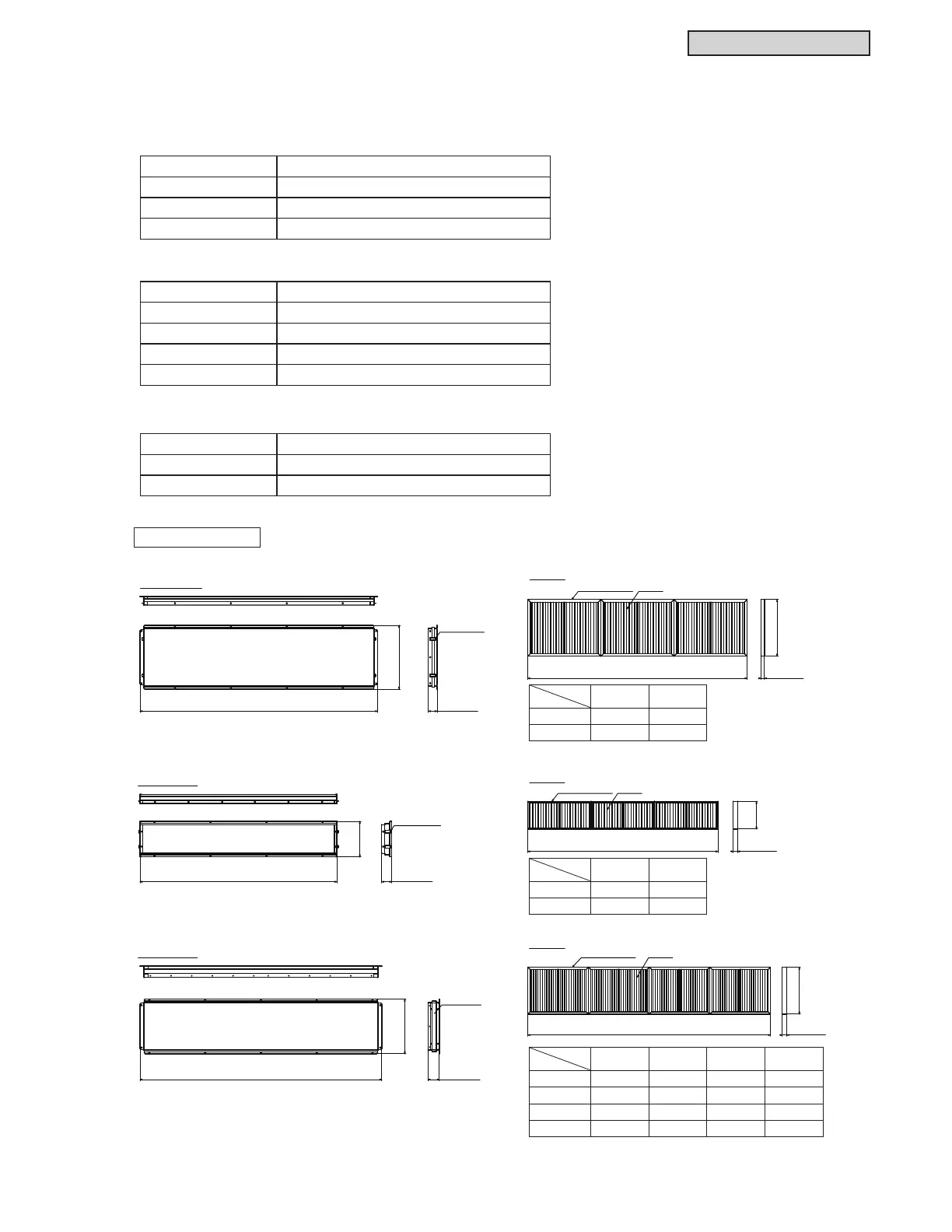

Dimensional Data
Dimension
Model
abcd
KW-PP7Q
25-7/16 [646] 10-7/16 [265] 24-1/32 [610] 9-17/32 [242]
KW-PP8Q 35-9/32 [896] 10-7/16 [265] 33-27/32 [860] 9-17/32 [242]
KW-PP9Q 43-9/32 [1099] 11-21/32 [296] 41-27/32 [1063] 10-23/32 [272]
KW-PP10Q 55-3/32 [1399] 11-21/32 [296] 53-5/8 [1362] 10-23/32 [272]
Dimension
Model
ab
KW-PP5Q 30-7/8 [784]
30-25/32[782]
KW-PP6Q 41-1/2 [1054] 41-11/32[1050]
Dimension
Model
ab
KW-PP3Q 34-1/4 [870] 32-3/4 [832]
KW-PP4Q 50 [1270]
48-7/16[1230]
