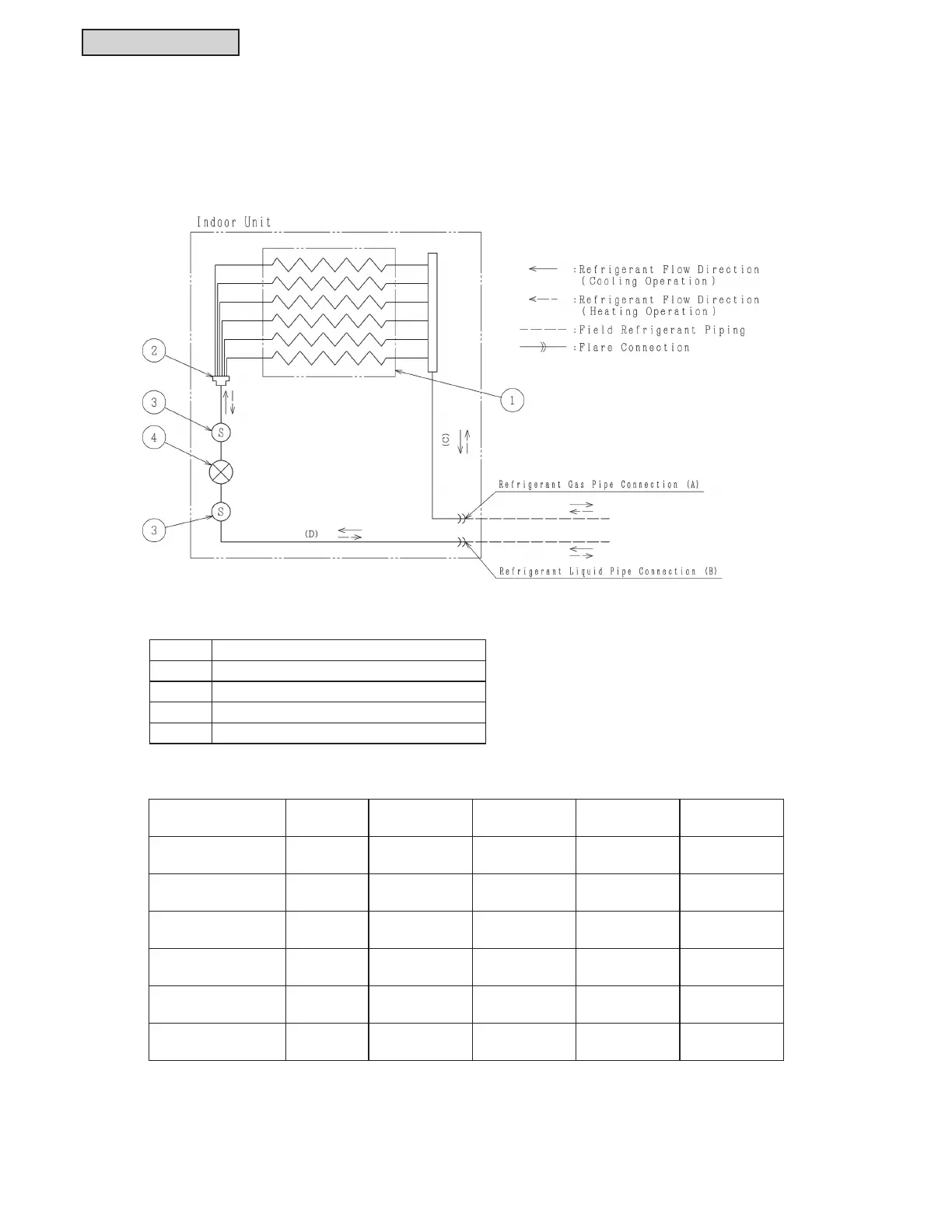

3.4.11 Control System
3.4.11.1 Refrigerant System
Mark Part Name
1 Heat Exchanger
2 Distributor
3 Strainer
4 Electronic Expansion Valve
Models: TIWM006B21S, TIWM008B21S, TIWM012B21S, TIWM015B21S
TIWM018B21S and TIWM024B21S
Model Distributor
(A) Gas Pipe
Connection
(B) Liquid Pipe
Connection
(C) (OD×T) (D) (OD×T)
TIWM006B21S
3 Pass
I
1/2
(12.70)
I
1/4
(6.35)
I
3/8×t0.031
(9.52×0.7)
I
1/4×t0.031
(6.35×0.7)
TIWM008B21S
3 Pass
I
1/2
(12.70)
I
1/4
(6.35)
I
3/8×t0.031
(9.52×0.7)
I
1/4×t0.031
(6.35×0.7)
TIWM012B21S
3 Pass
I
1/2
(12.70)
I
1/4
(6.35)
I
3/8×t0.031
(9.52×0.7)
I
1/4×t0.031
(6.35×0.7)
TIWM015B21S
4 Pass
I
1/2
(12.70)
I
1/4
(6.35)
I
1/2×t0.031
(12.7×0.7)
I
1/4×t0.031
(6.35×0.7)
TIWM018B21S
5 Pass
I
5/8
(15.88)
I
3/8
(9.52)
I
1/2×t0.031
(12.7×0.7)
I
5/16×t0.031
(7.94×0.7)
TIWM024B21S
6 Pass
I
5/8
(15.88)
I
3/8
(9.52)
I
1/2×t0.031
(12.7×0.7)
I
5/16×t0.031
(7.94×0.7)
Unit: inch (mm)
