CONTROL SYSTEM
TC-15001-rev.3
6-5

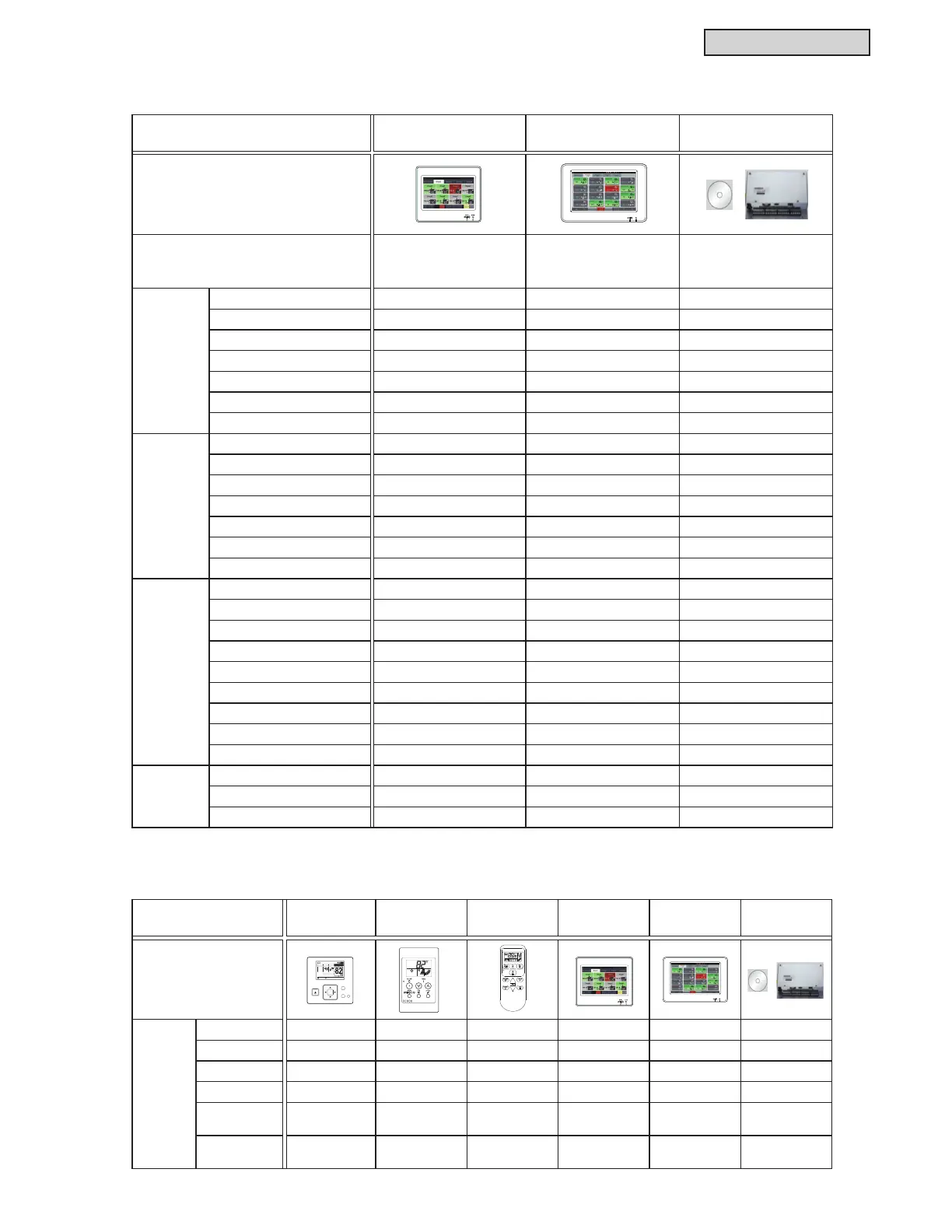

6.1.3 Controller Line Up
CCM01 CCL01
CCCS01
CCCA01
Overview
Remote Control Group Numbers 32 64
CCCS01: 2048
(CCCA01×16)
CCCA01: 128
Monitor
On/Off O O O
Mode O O O
Set Temp. O O O
Fan Speed O O O
Louver Angle O O O
Remote Control Prohibited O O O
Alarm O O O
Operation
On/Off O O O
Mode O O O
Set Temp. O O O
Fan Speed O O O
Louver Angle O O O
Remote Control Prohibited O O O
Filter Sign Clear O O O
Schedule
:HHNO\ OOO
Numbers per day 10 10 16
Special Day × × O
On/Off O O O
Mode × × O
Set Temp. O O O
Fan Speed × × O
Louver Angle × × O
Remote Control Prohibited × × O
Option
Digital Input 4 4 3 × 16
Digital Output 2 2 3 × 16
Memory Card × O use PC
O: Available ×: Not Available
6.1.4 Remote Controller Physical Data Reference Table
CIW01 CIS01 CIR01 CCM01 CCL01
CCCS01
CCCA01
Overview
Dimension
Weight (lbs) 0.4 0.2 0.2 1.1 3.3 3.1
Height (in.) 4-23/32 4-23/32 5-33/64 4-23/32 6-11/16 6-1/16
Width (in.) 4-23/32 2-3/4 2-11/64 5-33/64 9-27/32 9-1/8
Depth (in.) 45/64 43/64 21/32 55/64 31/32 2-11/16
Display Size
(H×W) (in.)
1-23/22 × 2-21/32 1-5/32 × 1-51/64 3/4 × 1-15/32 5 inch 8.5 inch depend on PC
Display LCD or
Touchscreen
Display LCD Display LCD Display LCD Touchscreen Touchscreen depend on PC
OK
Menu
Back/Help ECO
On/Off
A/C
MODE SPEED TEMP
COOL
LOUV. Adj.
Meeting Room
LOUV.
FLTR
Motion Sensor ON
Avoid
