INDOOR UNITS
3-96
TC-15001-rev.3

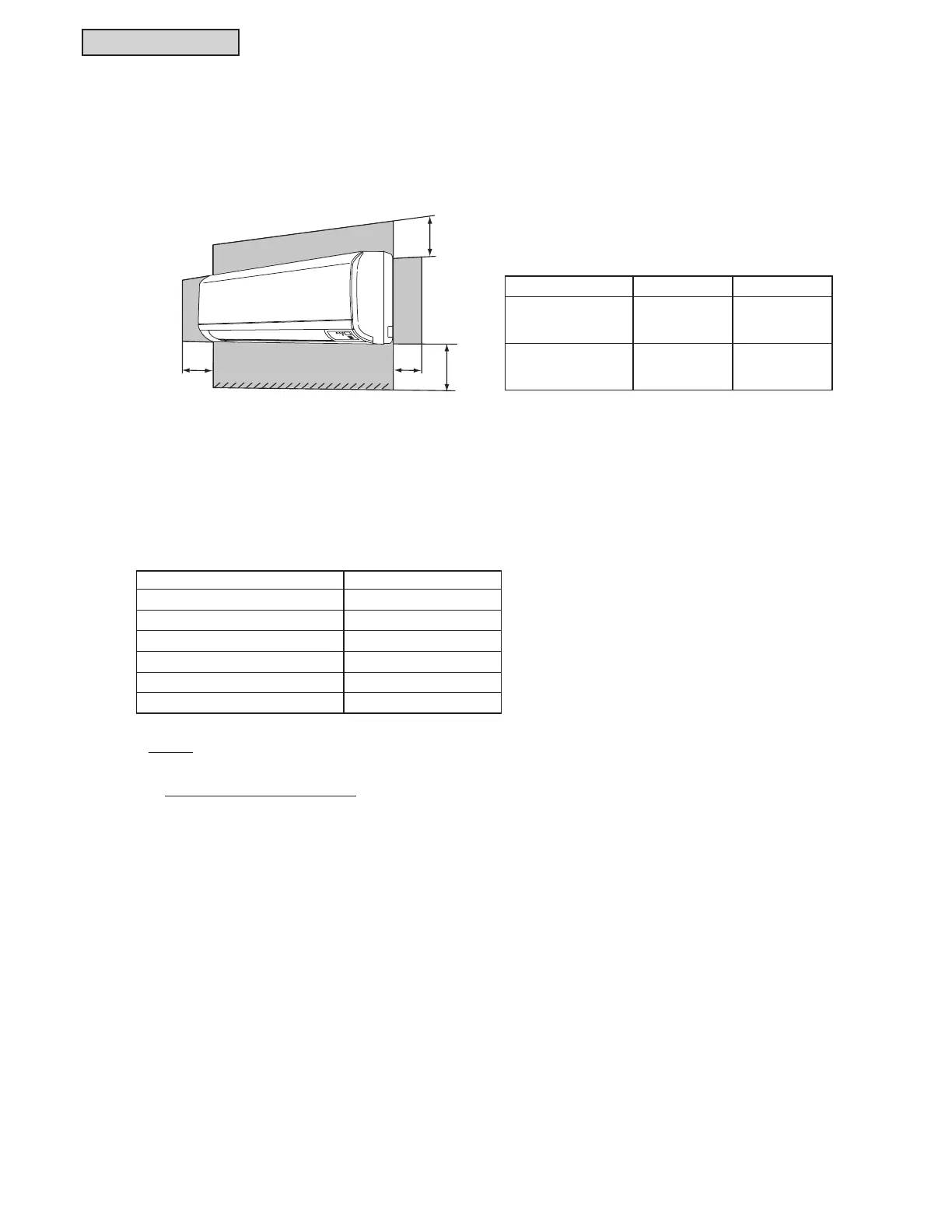

3.4.7 Operation Space
3.4.8 Sensible Heat Factor (SHF)
Models: TIWM006B21S, TIWM008B21S, TIWM012B21S, TIWM015B21S
TIWM018B21S and TIWM024B21S
7KHDERYH¿JXUHVKRZV7,:0%6DQG7,:0%6XQLWV
Model a b
TIWM006B21S
TIWM008B21S
TIWM012B21S
5-29/32 (150) 3-15/16 (100)
TIWM015B21S
TIWM018B21S
TIWM024B21S
3-15/16 (100) 7-7/8 (200)
Model SHF*1
TIWM006B21S
0.73
TIWM008B21S 0.73
TIWM012B21S 0.74
TIWM015B21S 0.75
TIWM018B21S 0.73
TIWM024B21S 0.73
NOTE:
1. SHF is based on combinations within the VRF system and the following conditions:
Cooling Operation Conditions
Indoor Air Inlet Temperature: 80
o
F DB (26.7
o
C DB)
67
o
F WB (19.4
o
C WB)
Outdoor Air Inlet Temperature: 95
o
F DB (35.0
o
C DB)
Piping Length: 24 ft. 7-3/16 in. (7.5m)
Piping Lift: 0 ft. (0m)
Unit: inch(mm)
Min.
a
Min.
b
Min.
94-1/2
(2400)
Min.
3-15/16
(100)
Unit: inch (mm)
Floor
