INDOOR UNITS
TC-15001-rev.3
3-81
3.3.11 Control System

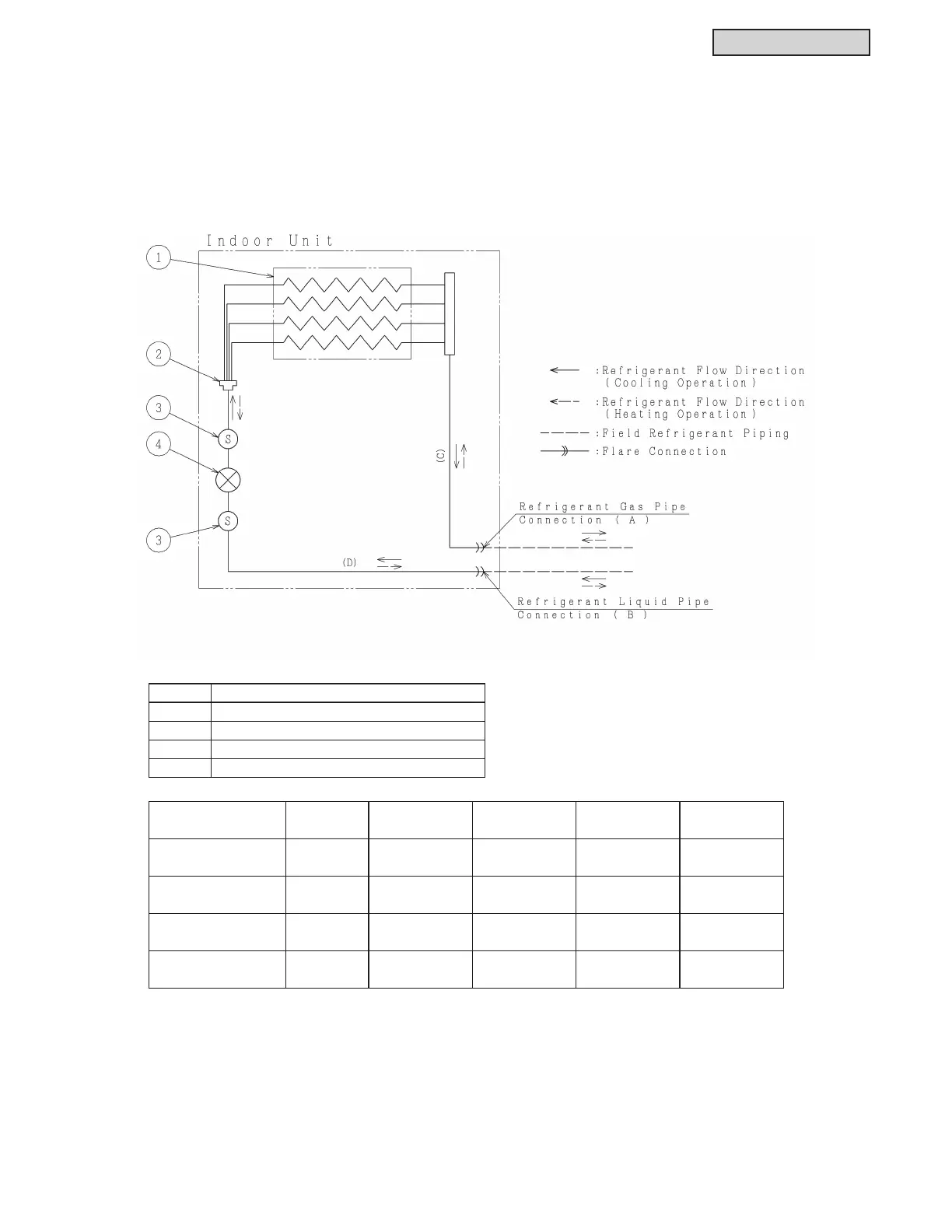

3.3.11.1 Refrigerant System
Models: (H,Y)IC1006B21S, (H,Y)IC1008B21S, (H,Y)IC1012B21S and (H,Y)IC1015B21S
Mark Part Name
1 Heat Exchanger
2 Distributor
3 Strainer
4 Electronic Expansion Valve
Model Distributor
(A) Gas Pipe
Connection
(B) Liquid Pipe
Connection
(C) (OD×T) (D) (OD×T)
(H,Y)IC1006B21S 3 Pass
I
1/2
(12.7)
I
1/4
(6.35)
I
1/2×t0.031
(12.7×0.8)
I
1/2×t0.031
(12.7×0.8)
(H,Y)IC1008B21S 3 Pass
I
1/2
(12.7)
I
1/4
(6.35)
I
1/2×t0.031
(12.7×0.8)
I
1/2×t0.031
(12.7×0.8)
(H,Y)IC1012B21S 5 Pass
I
1/2
(12.7)
I
1/4
(6.35)
I
1/2×t0.031
(12.7×0.8)
I
1/2×t0.031
(12.7×0.8)
(H,Y)IC1015B21S 5 Pass
I
1/2
(12.7)
I
1/4
(6.35)
I
1/2×t0.031
(12.7×0.8)
I
1/2×t0.031
(12.7×0.8)
Unit: inch (mm)
