Johnson Controls HIDH018B21S - Identifying Indoor Units Installed in a Side-By-Side Operation

CONTROL SYSTEM
TC-15001-rev.3
6-51
7XUQ2))WKHSRZHUVRXUFHFRPSOHWHO\EHIRUHVHWWLQJWKH',3VZLWFKIRUWKH,5UHFHLYHUNLW
1RWGRLQJVRFDQFDXVHDQHOHFWULFVKRFN
When two indoor units are installed side by side,
the commands from the wireless controller may
be received by both indoor units. The function,
³,GHQWLI\LQJRI,QGRRU8QLWV,QVWDOOHG6LGHE\6LGH´
enables operation of the individual unit correctly
without interfering with the other unit’s operation.

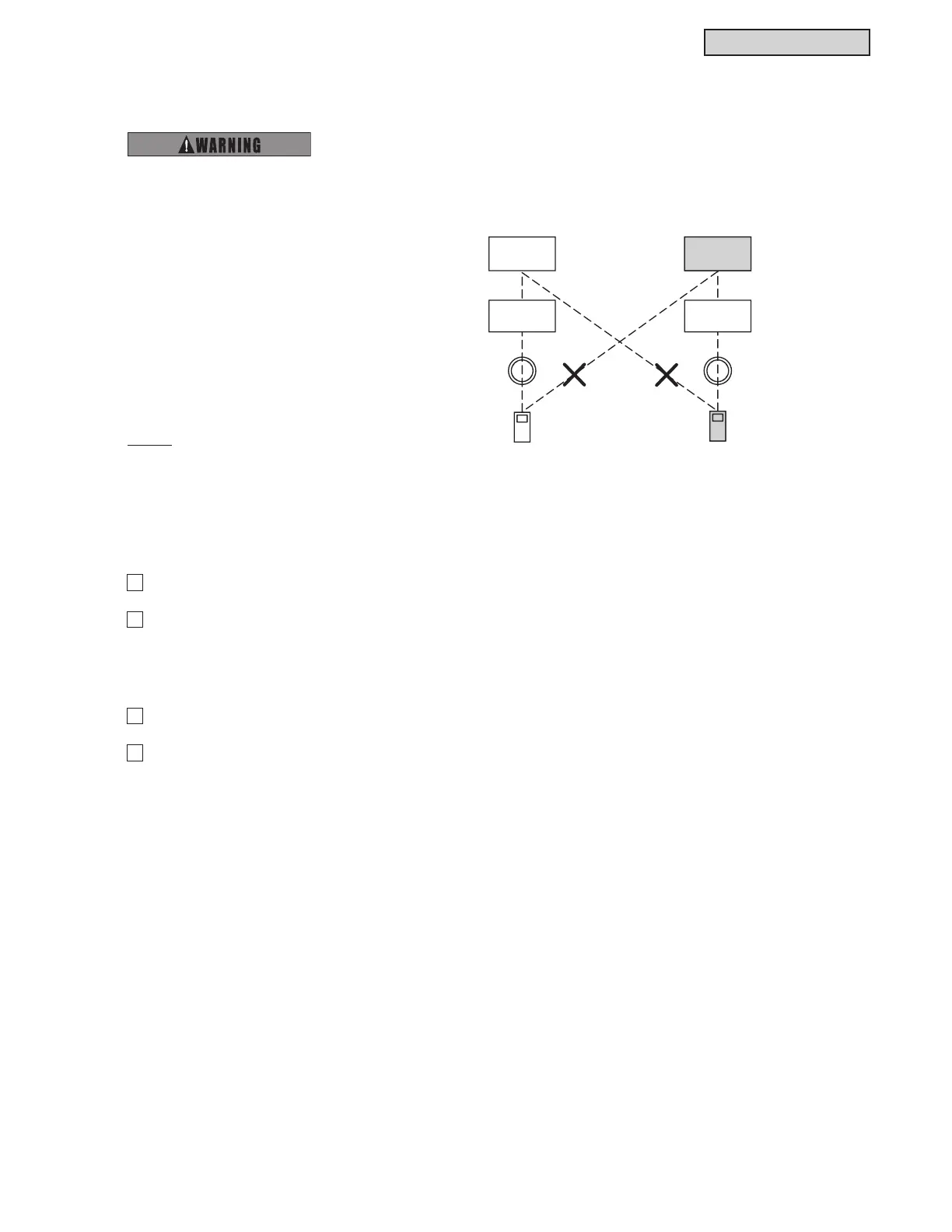

$VVKRZQLQWKH¿JXUHDWWKHULJKWWKH,5UHFHLYHU
NLWRI$DQG%DUHVHWVLGHE\VLGH,QWKLVLQVWDQFH
unit B is set as “Identifying Indoor Units Installed
6LGHE\6LGH´
< Setting of Identifying of Indoor Units Installed Side by Side >
1
IR Receiver Kit Setting
6HWWKH1XPEHUSLQRIWKH,5UHFHLYHUNLW',3VZLWFK'6:DWWKH³,GHQWL¿HG´8QLW%³21´VLGH
2
Wireless Controller
Set the wireless controller according to the Installation and Maintenance Manual for the Wireless
Controller.
< Cancellation of Identifying of Indoor Units Installed Side by Side >
1
IR Receiver Kit Setting
6HWWKH1XPEHUSLQRIWKH,5UHFHLYHUNLW',3VZLWFK'6:³2))´VLGHIRUFDQFHOODWLRQ
2
Wireless Controller
Cancel the wireless controller setting according to the Installation and Maintenance Manual for the
Wireless Controller.
127(
This function setting is required at the receiver side.
It should be set according to the Installation Manual
for indoor units. Contact your distributor for details.
Indoor Unit
A
Indoor Unit
B
"Identified"
IR Receiver Ki
t
"Identified"
Wireless Controller
IR Receiver
Kit A
IR Receiver
Kit B
6.7.9 Identifying Indoor Units Installed in a Side-by-Side Operation
