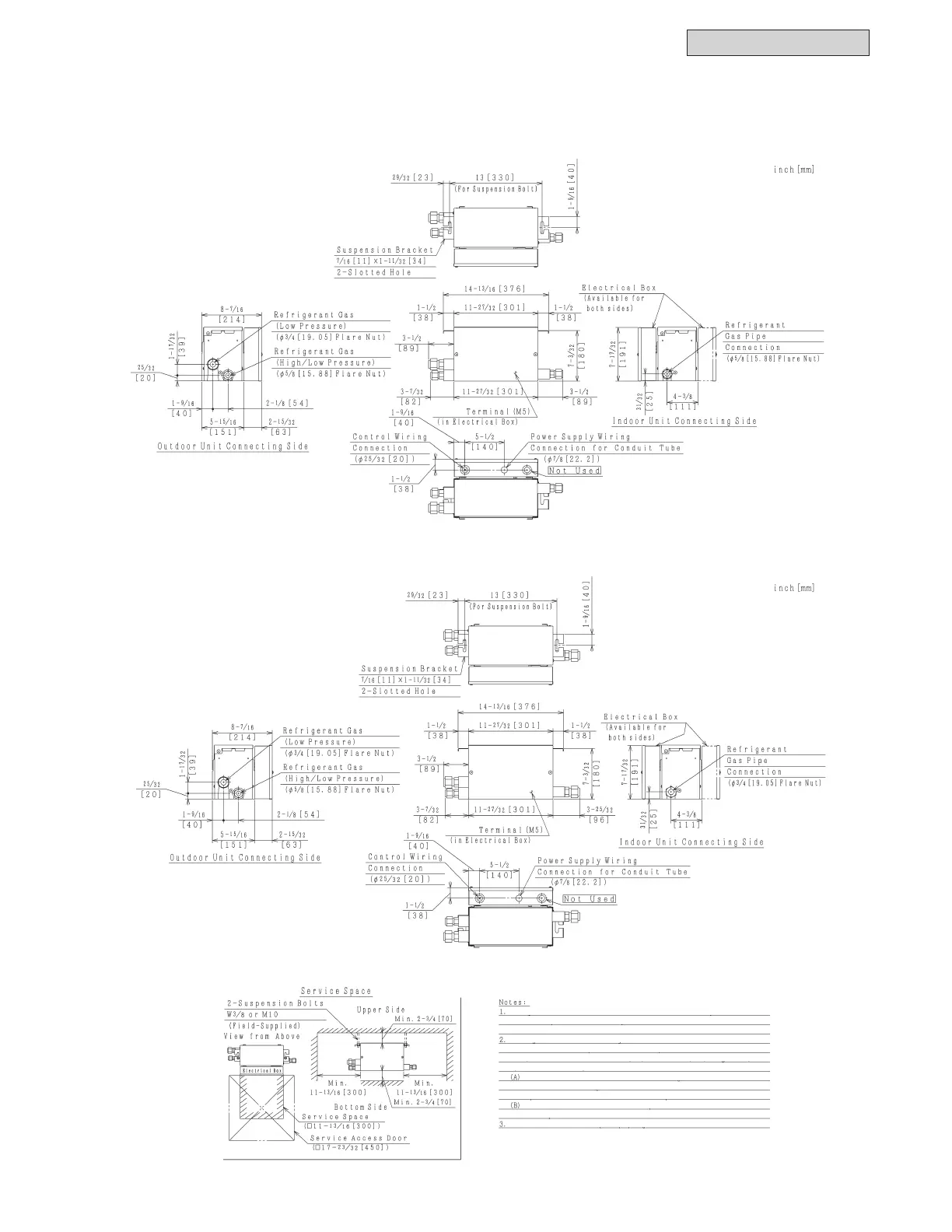

4.4 Dimensional Data
< COBS048B21S >
< COBS096B21S >
Ground
Ground
Change-over box consists of mechanical parts such as
electronic expansion valves. Ensure the service access door
is below the electrical box.
Do not install the change-over box in a place that may be
noise sensitive.
5HIULJHUDQWÀRZVRXQGPD\EHKHDUGIURPWKHFKDQJHRYHUER[
when the micro-computer control expansion valve in the
cnage-over box is activated. Therefor, take the following action
WRPLQLPL]HWKHVRXQG
Install the change-over box inside the ceiling.
As for the ceiling material, select a material like
DSODVWHUERDUGZKLFKPLQLPL]HVRSHUDWLRQVRXQG
Do not connect the liquid piping to other units.
CHANGE-OVER BOX
TC-15001-rev.3
4-3
