Johnson Controls HIDH018B21S - Dimensional Data

INDOOR UNITS
3-90
TC-15001-rev.3

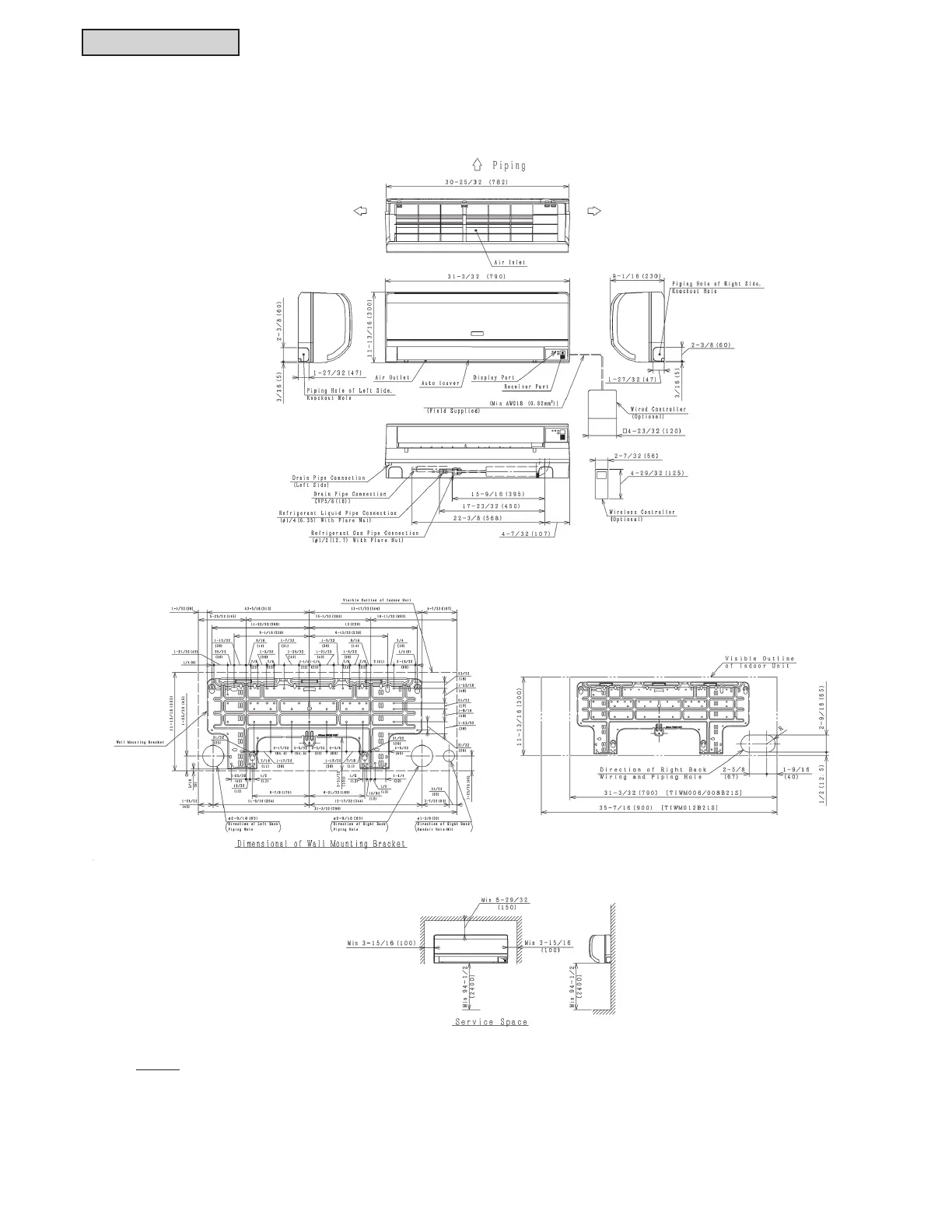

3.4.4 Dimensional Data
Unit: inch(mm)
Models: TIWM006B21S and TIWM008B21S
Opening Direction Option 1: Opening Direction Option 2:
Communication Cable
NOTES:
1. Removal of the drain pipe is possible from either side of the knockout holes. If using the left side, install a drain hose to the drain
pipe drain at the left side.
0DNHVXUHWKHUHLVQRJDSDWWKHFHQWHUSRVLWLRQRIWKHEUDFNHWDQGWKHXQLW0RXQWWKHPDFFRUGLQJWRWKH¿JXUHDERYH
