INDOOR UNITS
TC-15001-rev.3
3-59

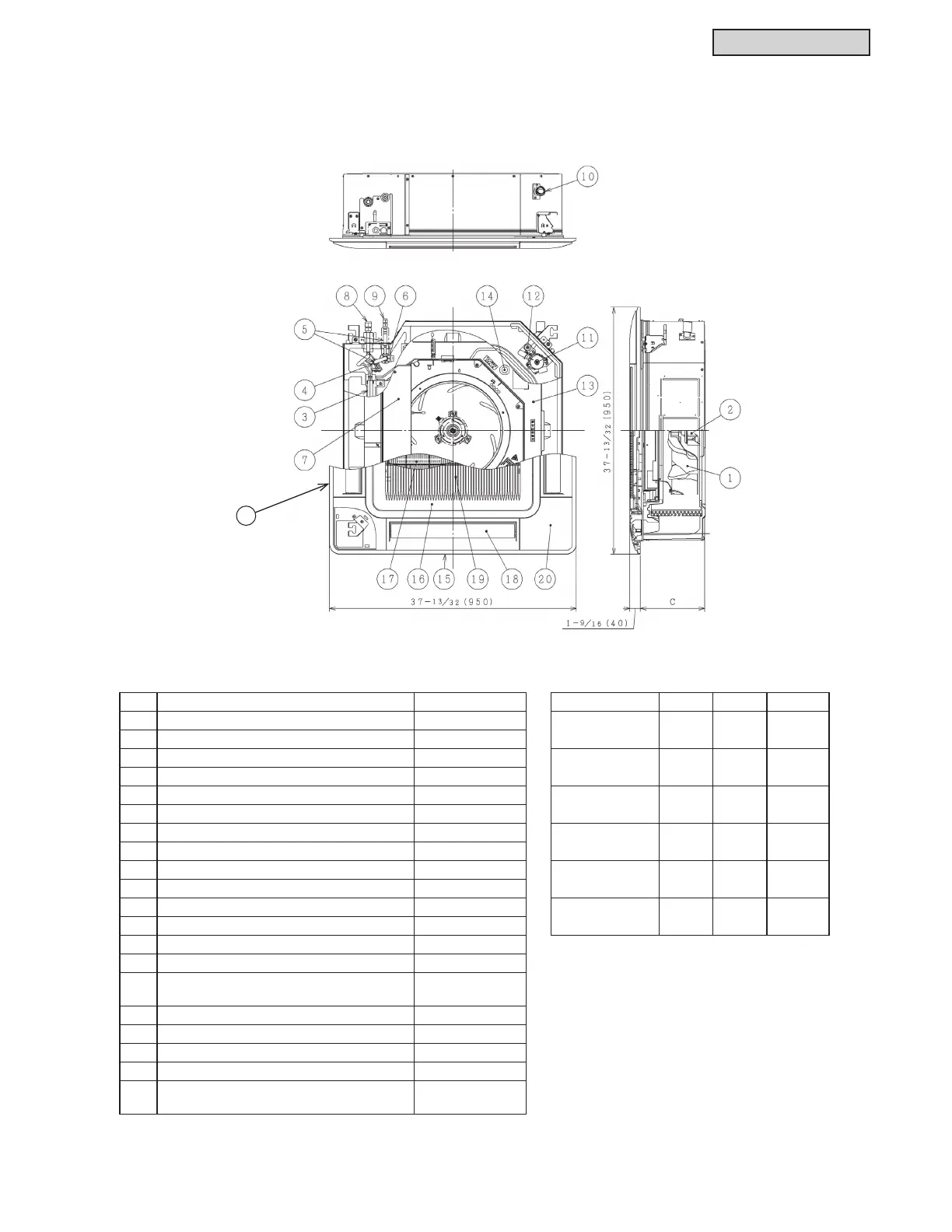

3.2.5 Structure
No. Part Name Remarks
1Fan
2 Fan Motor DC
3 Heat Exchanger
4 Distributor
5 Strainer
6 Electronic Expansion Valve
7 Electrical Control Box
8 Refrigerant Gas Pipe Connection with
I
a Flare Nut
9 Refrigerant Liquid Pipe Connection with
I
b Flare Nut
10 Condensate Pipe Connection VP25
11 Condensate Mechanism
12 Float Switch
13 Condensate Pan
14 Rubber Plug for Drain
15
Decorative Panel (P-AP160NA2,
P-AP160NAE1)
Optional
16 Air Inlet Grille
17 Air Filter
18 Air Outlet
19 Air Inlet
20 Cover for Corner Pocket
(P-AP160NA2)
(P-AP160NAE1)
Model a b c
(H,Y)IC4012B21S
1/2
(12.7)
1/4
(6.35)
9-3/4
(248)
(H,Y)IC4015B21S
1/2
(12.7)
1/4
(6.35)
9-3/4
(248)
(H,Y)IC4018B21S
5/8
(15.88)
3/8
(9.52)
9-3/4
(248)
(H,Y)IC4024B21S
5/8
(15.88)
3/8
(9.52)
11-23/32
(298)
(H,Y)IC4030B21S
5/8
(15.88)
3/8
(9.52)
11-23/32
(298)
(H,Y)IC4036B21S
5/8
(15.88)
3/8
(9.52)
11-23/32
(298)
Unit: inch (mm)
(P-AP160NA2
without Motion
and Radiation Sensors
or
P-AP160NAE1
with Motion and
Radiation Sensors)
15
