INDOOR UNITS
3-58
TC-15001-rev.3

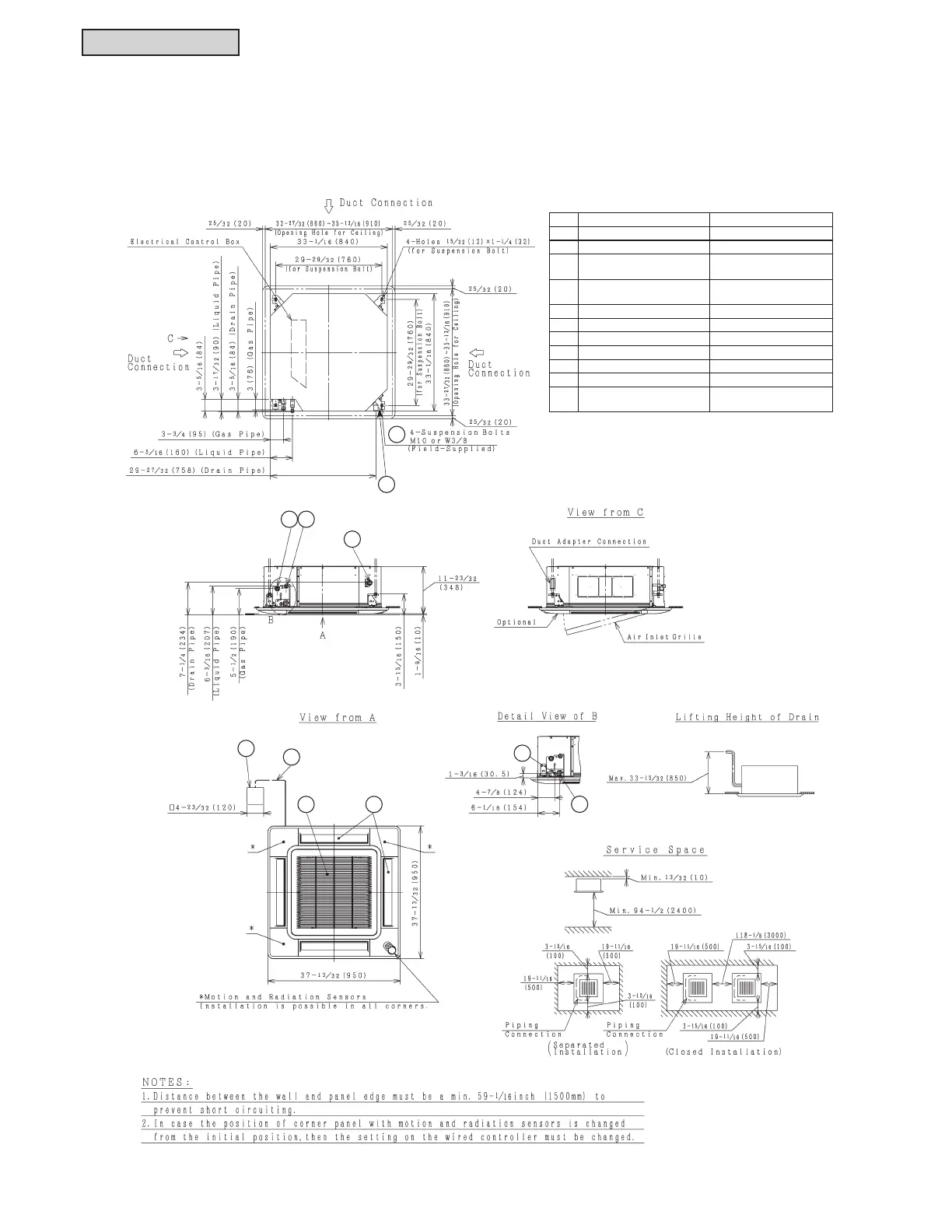

Unit: inch (mm)
Models: (H,Y)IC4024B21S, (H,Y)IC4030B21S and (H,Y)IC4036B21S
with Decorative Panel P-AP160NAE1
Mark Name Remark
1 Air Outlet 4-Way
2 Air Inlet
3
Refrigerant Gas Pipe
Connection
with
I
5/8 (15.88) Flare Nut
4
Refrigerant Liquid Pipe
Connection
with
I
3/8 (9.52) Flare Nut
5 Drain Pipe Connection VP25
6a Wiring Hole for Conduit Tube
I
7/8 (22.2) Hole
6b Wiring Hole
I
1/2 (13) Hole
7 Suspension Bracket
8 Suspension Bolt 4-M10 or W3/8
9 Wired Controller without Cable
10
Shielded Communication
Cable
Min. AWG18 (0.82mm
2
),
Field-Supplied
6b
6a
9
10
2 1
(Optional)
(Field-Supplied)
5
43
7
8
Decorative Panel
