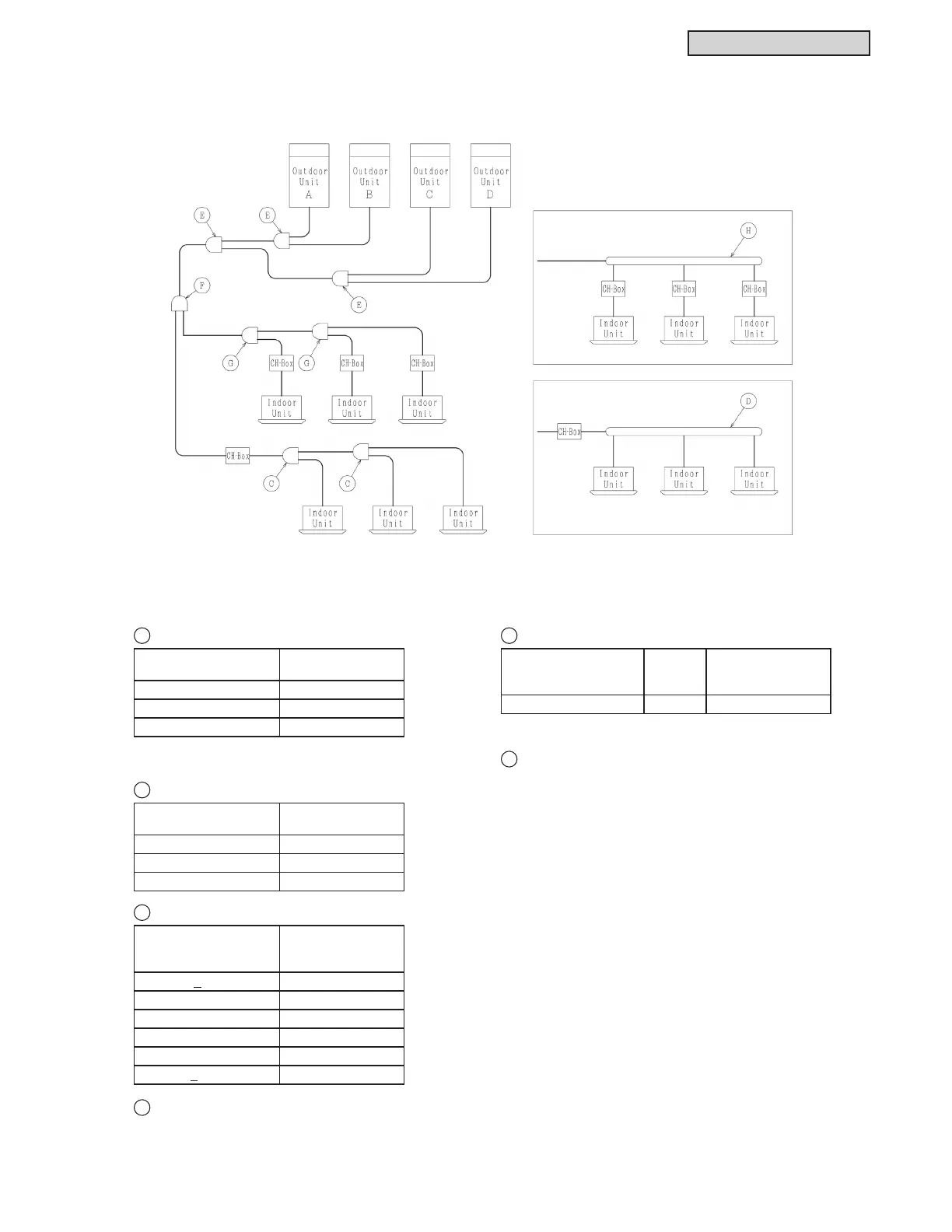

Piping Kit for Heat Recovery System
G
Line Branch after First Branch
Tota l
Indoor Unit Capacity
(MBH)
Model
< 41 MW-NP142X2
42 - 86 MW-NP282X2
87 - 113 MW-NP452X2
114 - 155
MW-NP562X2
156 - 185 MW-NP692X2
> 186 MW-NP902X2
• Piping Connection Kit
E
Piping Connection Kit
Outdoor Unit Capacity
(MBH)
Model
144 - 192 MC-NP21X1
216 - 312 MC-NP30X1
336 - 360 MC-NP40X1
• Multi-Kit (Line Branch)
F
First Branch
Outdoor Unit Capacity
(MBH)
Model
72 - 120 MW-NP452X2
144 MW-NP692X2
168 - 360 MW-NP902X2
• Multi-Kit (Header Branch)
H
Header Branch (3 Pipes Connection)
Tota l
Indoor Unit Capacity
(MBH)
No. of
Header
Branches
Model
36-72 8 MH-NP288X
C
Line Branch after First Branch (2 Pipes Connection)
Refer to (C) for Heat Pump System.
D
Header Branch (2 Pipes Connection)
Refer to (D) for Heat Pump System.
