CONTROL SYSTEM
6-76
TC-15001-rev.3

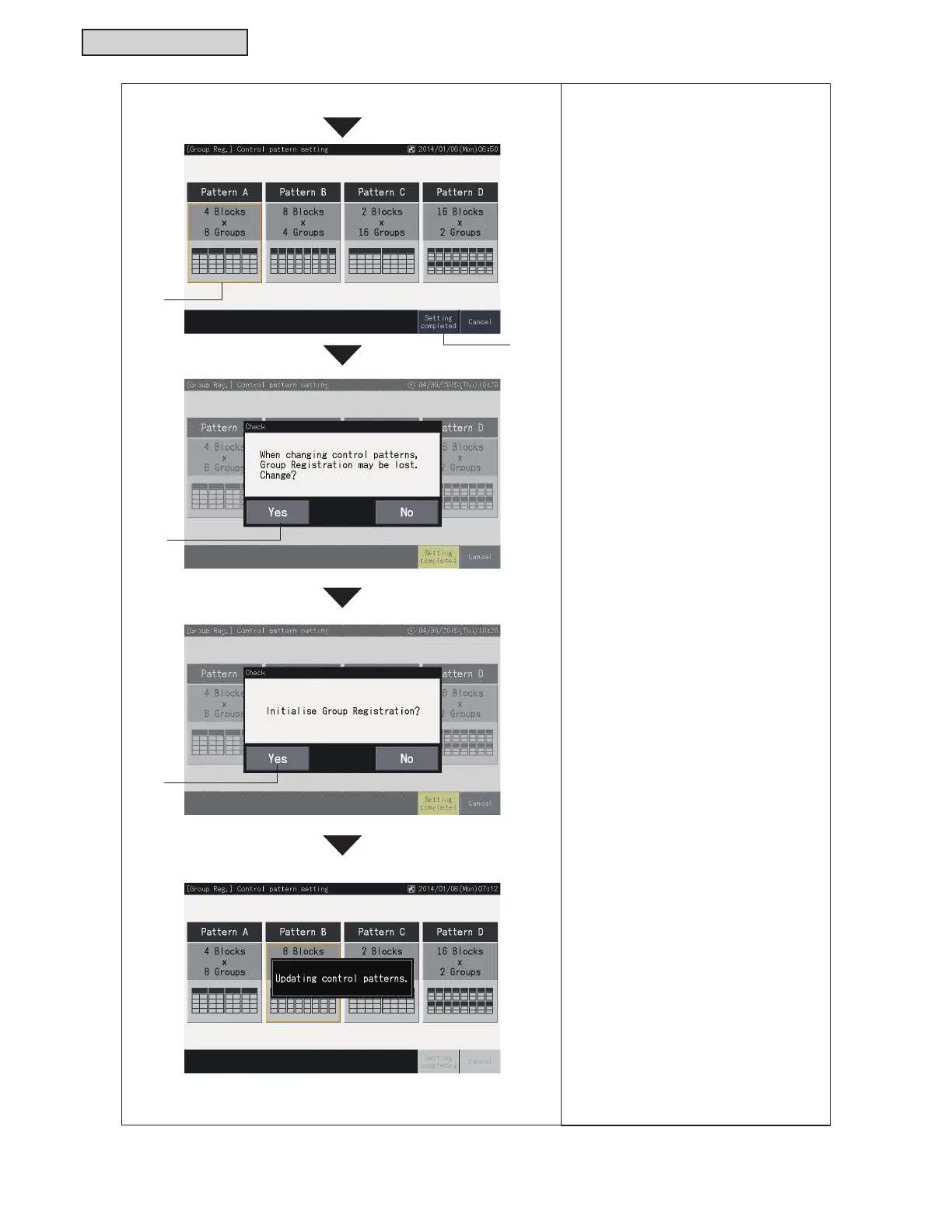

3. Set the Control Pattern.
Ɣ When touching on the Control Pattern
button, the selected button is trimmed
in an orange outline.
4. 7RXFK³6HWWLQJFRPSOHWHG´
Ɣ7RXFK³&DQFHO´DQGWKHVFUHHQZLOO
return to Group Register.
Ɣ The Group Register can be deleted
when modifying the Control Pattern.
5. Initialize Group Registration? T
RXFK³<HV´
RQWKHFRQ¿UPDWLRQVFUHHQ
Ɣ7RXFK³1R´WRUHWXUQWRWKH “Setting of
&RQWURO3DWWHUQV´VFUHHQ
6. 7RXFK³<HV´DQGLWZLOOFRQ¿UPWKH
Control Pattern selected and cancel all
the Group Registration.
Ɣ 7RXFK³1R´DQGLWZLOOFRQ¿UPWKH
Control Pattern selected and even
DIWHUWKH&RQWURO3DWWHUQLVPRGL¿HG
the Group within the Control range will
retain the Main/Sub Unit registration.
7. The Control Pattern up-dating screen is
displayed.
After up-dating the Control Pattern, the
Group Register screen will display when
registering the Main Unit. If the Main Unit
is not to be registered, the Unregister
Group screen will display.
