6.9.11.3 Group Register
6.9.11.3.1 How to Register Group (Main Unit)

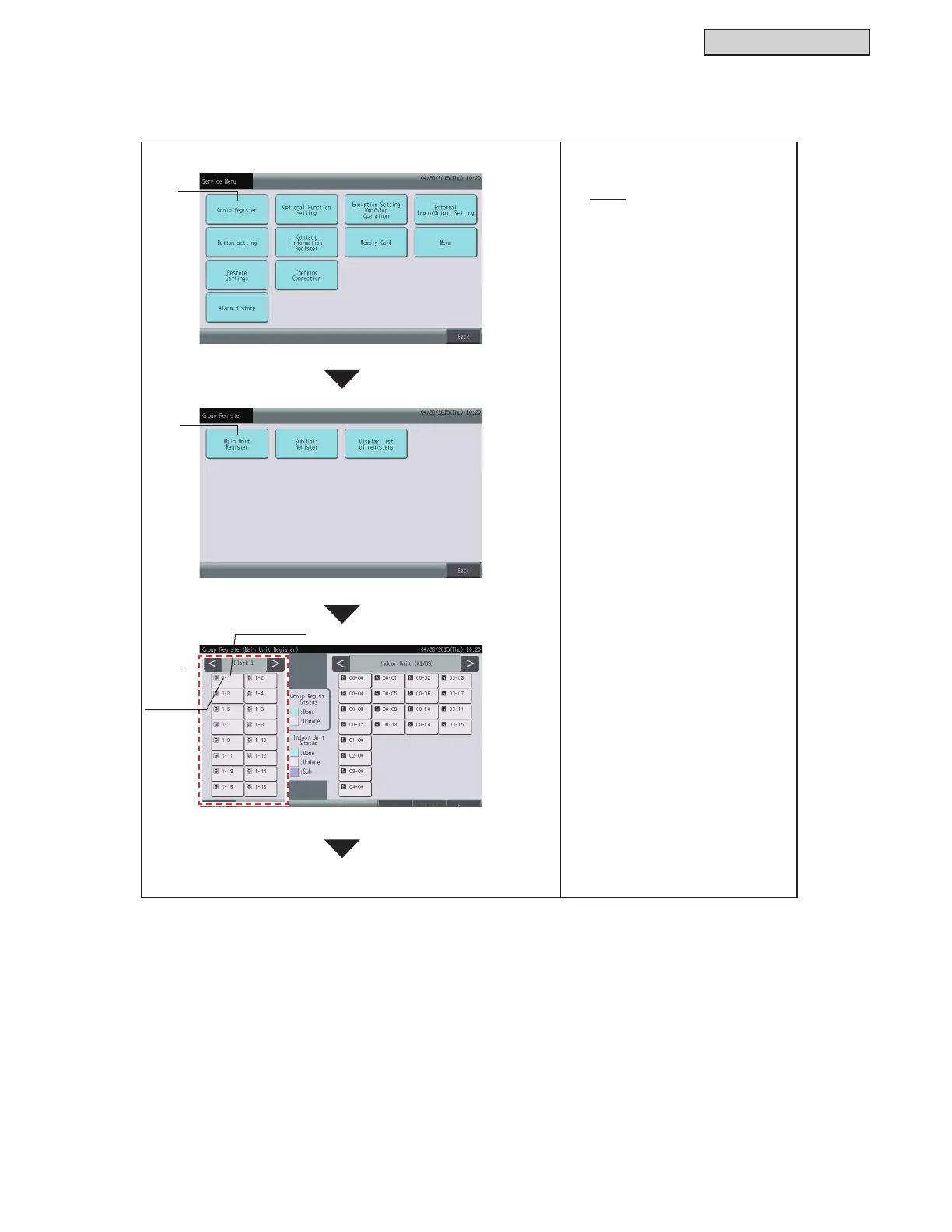

1. Select “Group Register” on the
“Service Menu” screen.
NOTE:
This function cannot be selected
when the external input signal is input
to external input terminal 1 or 2.
2. Select “Main Unit Register” on the
“Group Register” screen.
3. Select a group for main unit to
register.
Ɣ When touching “<” or “>” at the
upper left of the touchscreen, the
block display is switched.
Ɣ The information for Block No. and
Group number is indicated on
the button as
“Block No. - Group
Name”.
Ɣ Select the group button by touch.
The selected button is trimmed with
an orange outline.
If the selected group button is
touched again, the group selection
is cancelled.
1
2
3
Continue on to Next Page
Group No.
Block
No.
To Next Page
