Chapter - Fault Diagnosis
Page Issue A

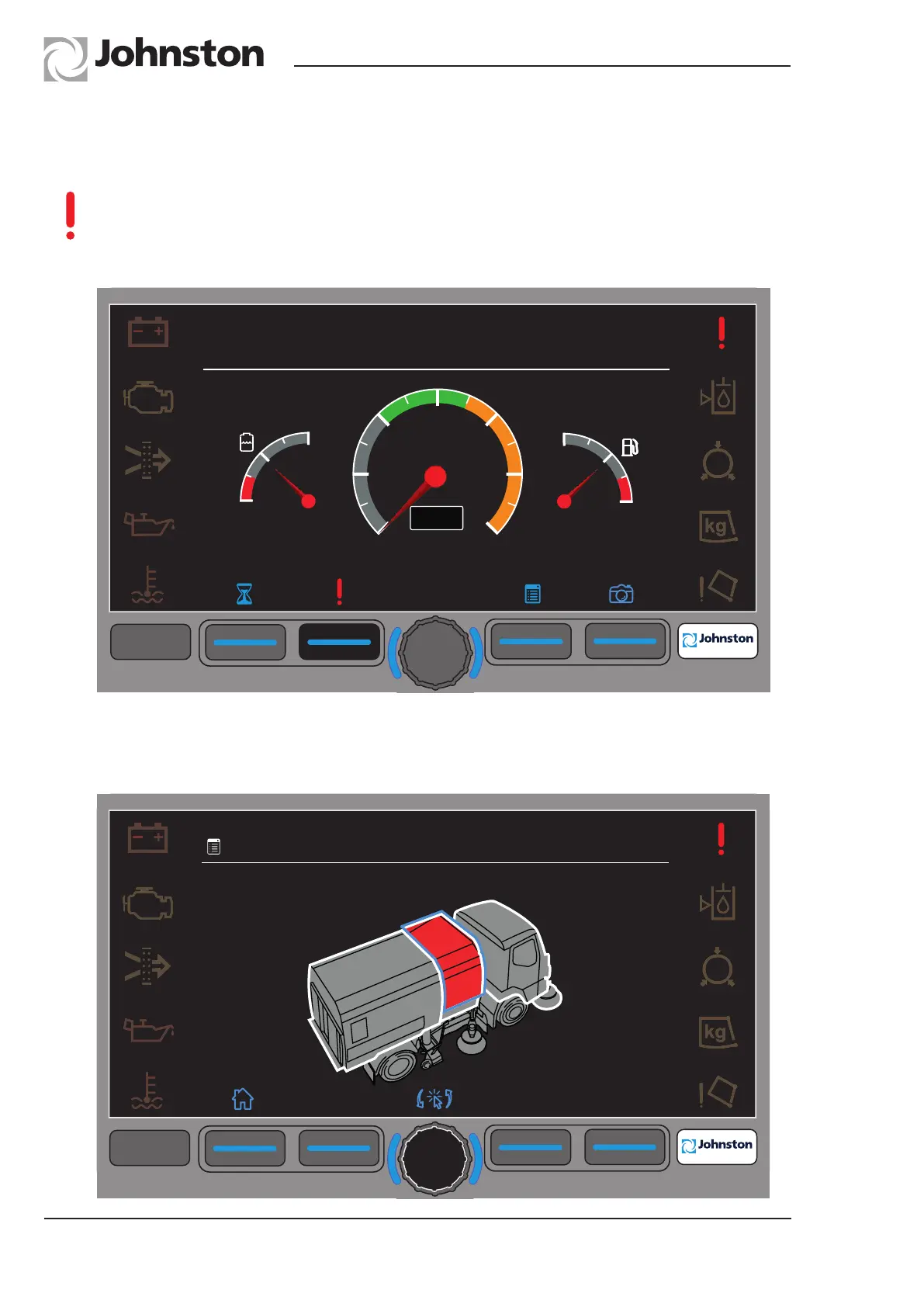

Should a fault occur in any of the equipment operating systems the fault icon (!) is
displayed over soft key F2.
Selecting F2 automatically opens Menu 4.2 (CANbus Network) which highlights the
location of the affected Node.
Menu 4.2 - CANbus Network Faults
Rotate the encoder to highlight the indicated area (Powapak).
Press the encoder to display the fault.
