Johnston VT501 - Power;Ignition Feed Display Operating Panel;Pendant & Key Pad

All Copyright and rights are the property of Johnston Sweepers Ltd
V Range 501 l 651 l 801 Maintenance Manual
MA3:32
Chapter - Electrical System
Page Issue B

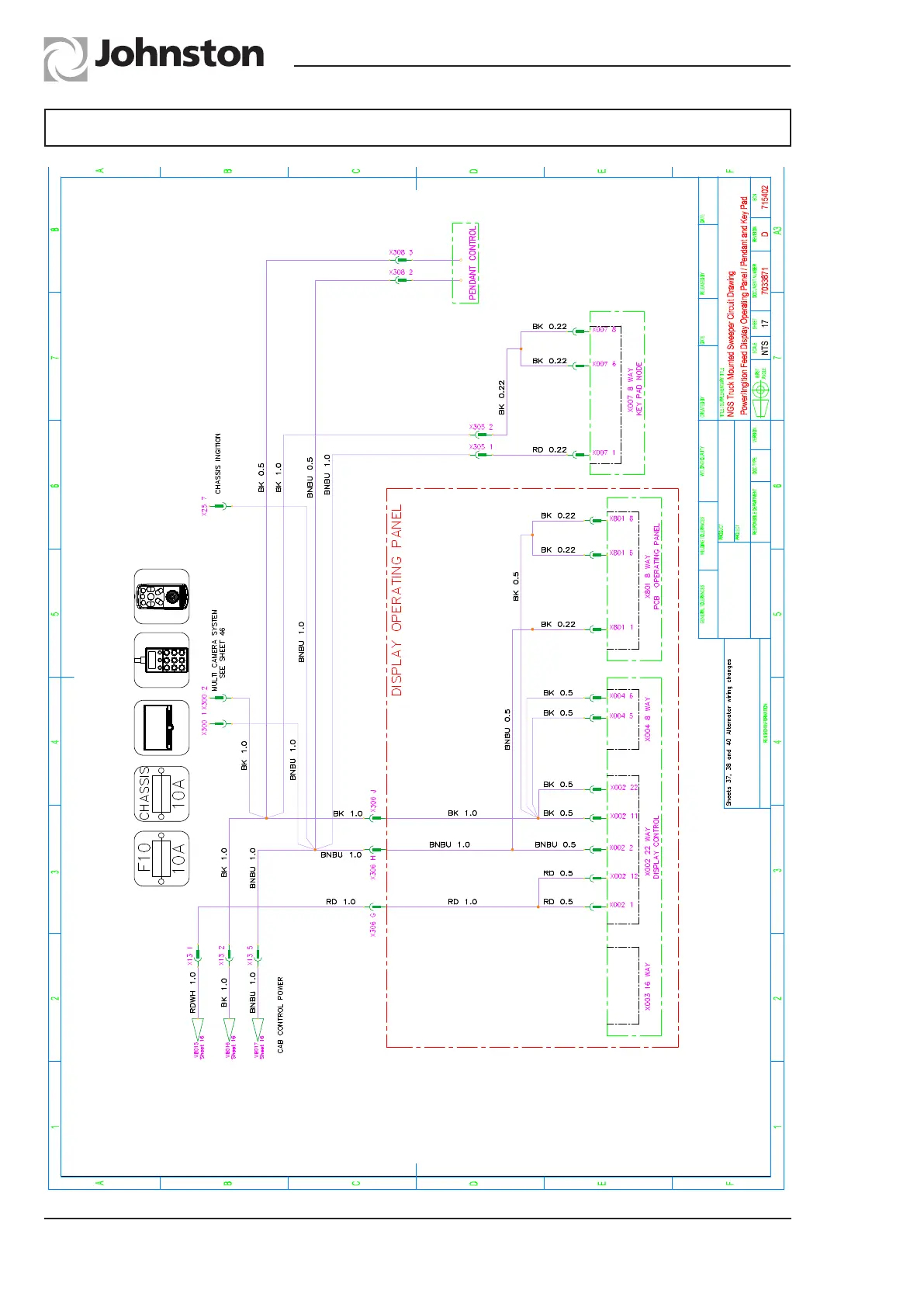

Power/Ignition Feed Display Operating Panel/Pendant & Key Pad - Sheet 17/64 Rev D
