A.3.3 Serial Interface
The serial interface has the following characteristics.
Baudrate (bps): 1200 bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps (selectable)
Data length: 7 or 8-bit (selectable)
Start bit: 1 bit
Parity bit: Odd, even, or none (selectable)
Stop bit: 1 bit
Handshaking: DTR protocol, XON/XOFF protocol (selectable)
Serial pin assignments
The following table lists the serial connector pin assignments and describes their respective interface
signals.
Pin No. Signal Direction Description
1 Protective Ground (FG)
—
Printer’s chassis ground
2 Transmitted Data (TXD/SD) Out Printer has transmitted serial data
3 Received Data (RXD/RD) In Printer has received serial data
7 Signal Ground (SG)
—
Return path for data control signals
20 Data Terminal Ready (DTR) Out
Positive when the printer is ready to receive data,
and negative when the printer is not ready
Contact Number Signal Name Color
1 VBUS
Red
2 D-
White
3 D+
Green
4 GND
Black
2 1
3 4

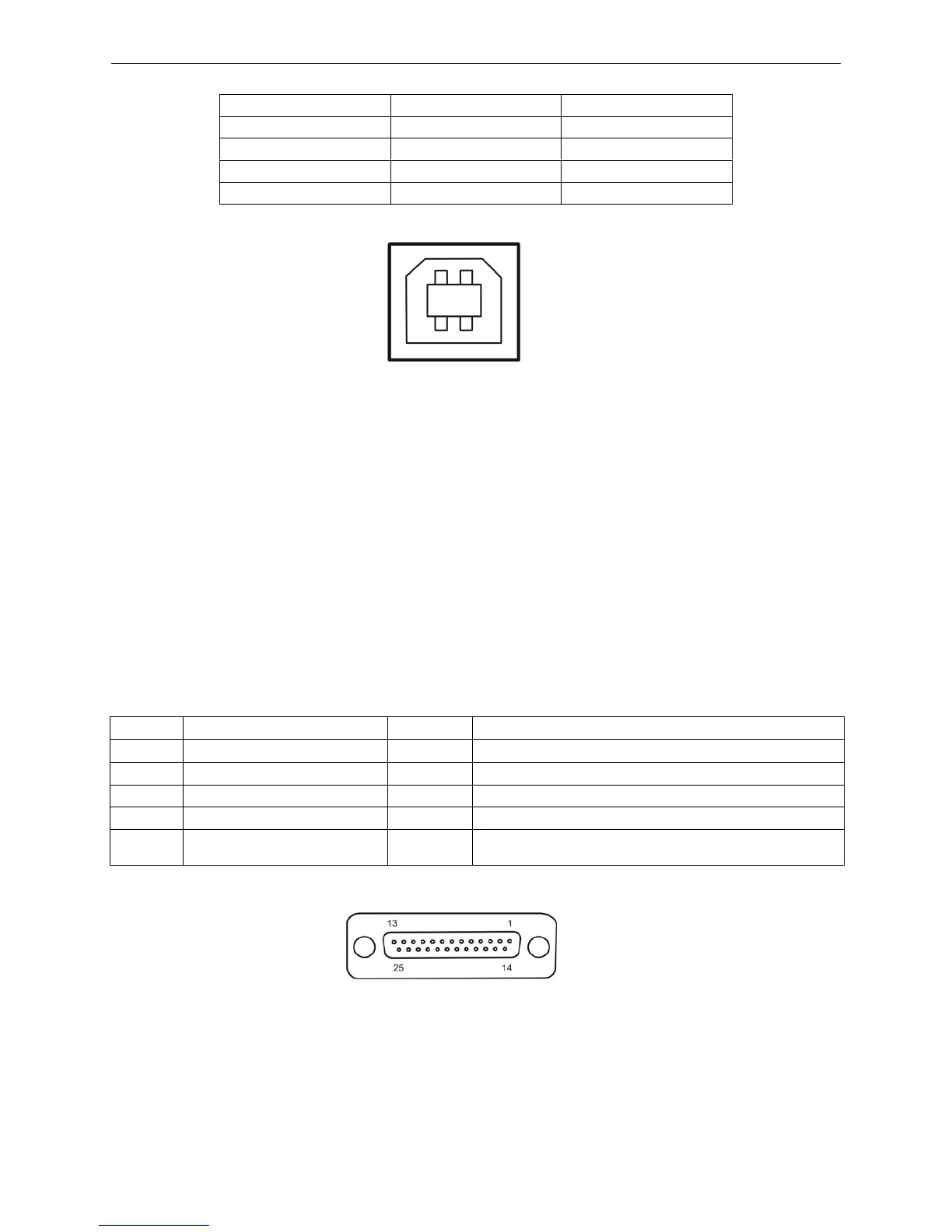

Figure A-2 USB-B type connector
Figure A-3 Serial interface connector pin numbers
