4.3.2 Main Machine Installation
a) Dismantle the plastic housing of the main machine before installation, keep the relevant fasteners
properly;
b) Please prepare the power cable for connecting the main machine to power supply (the number of
power supply cable cores should not be less than 3 PCS, the sectional area of cable core should be
over 1.5mm² and the length should be determined by users according to the situation of the
installation spot.)

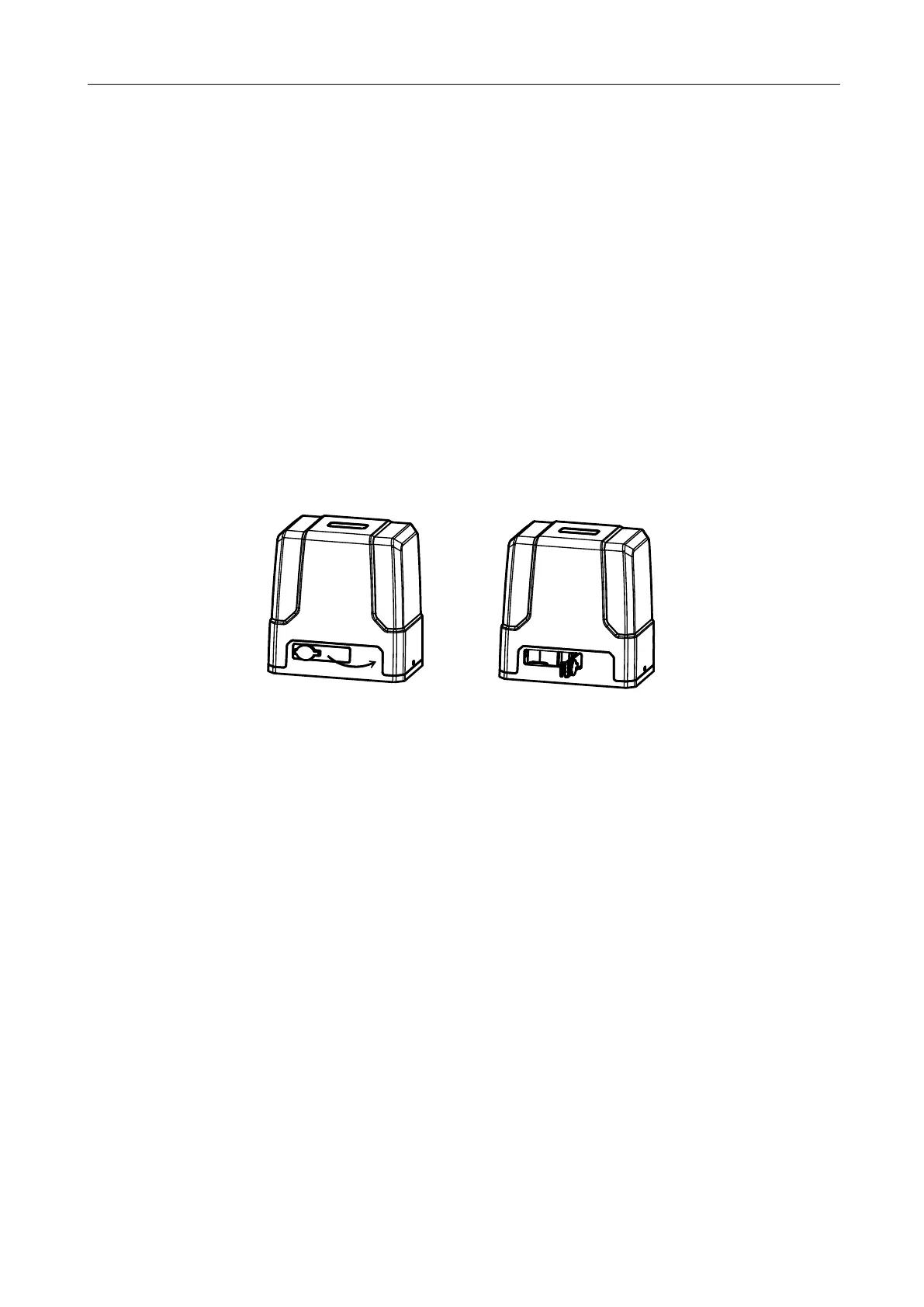

c) Please unlock the main machine before installation, the unlock method is: take out the key cover,
insert the key to open the manual release bar till it opens to 90° as shown in Figure 5. Then rotate
the output gear and the gear can be rotated easily.
Figure 6
4.3.3 Gear Rack Installation
Fix the mounting screws to the gear rack.
Put the gear rack on the output gear of the main machine; make the rack engage with the output
gear then weld the mounting screws to the gate (each screw marks with a solder joints in
advance).
Manually move the gate (gate should be moved smoothly after machine unlocked) to check
whether there is a fit clearance between gear rack and output gear, as shown in Figure 7.
Weld all the mounting screws to the gate firmly.
Make sure that all racks are on the same straight line.
Pull the gate after gear rack installed, make sure the entire trip is flexible without any stuck.
