JOYTECH SL800DC - Installation; Installation Drawing

4
Limit switch
Electronic limit switch
Electronic limit switch
Noise
≤60dB
≤60dB
Working duty
S2, 20min
S2, 20min
Recording of up remote controls
100
100
Frequency
433.92 MHz
433.92 MHz
Working temperature
-20°C ~ +70°C
-20°C ~ +70°C
Package weight
10Kg
11Kg
Battery Specification
12V/9Ah
12V/9Ah
4. Installation
SL500DC/SL800DC sliding gate opener is applicable to the type of sliding gate which weight is less
than 500kg/800kg, length less than 12m. The drive mode adopts the rack and gear transmission.
This gate opener must be installed inside the enclosure or yard for protection.

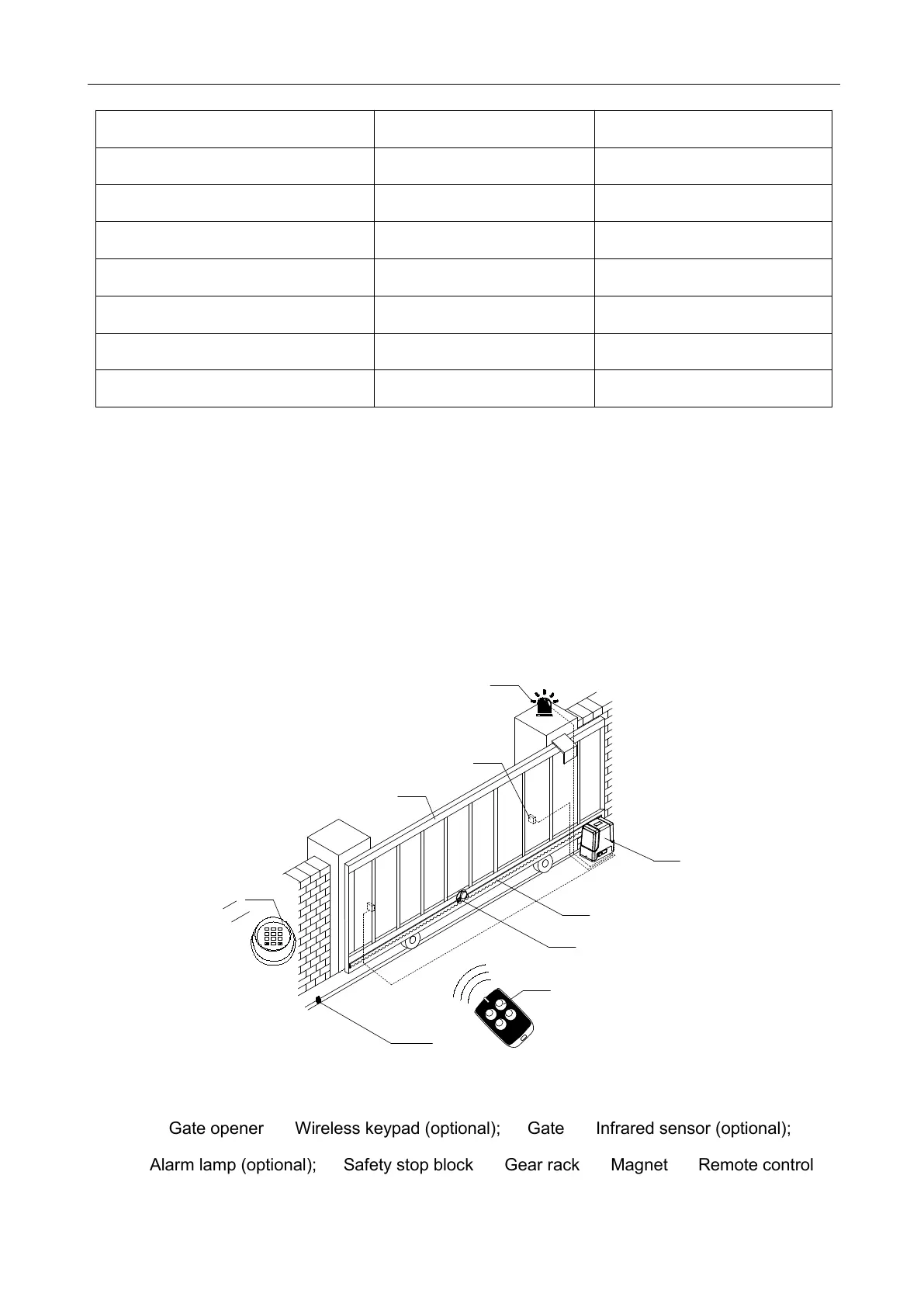

4.1 Installation Drawing
⑤
④
③
②
0
8
5 6
97
4
1 2 3
⑨
①
⑦
⑥
⑧
Figure 1
①
Gate opener;
②
Wireless keypad (optional);
③
Gate;
④
Infrared sensor (optional);
⑤
Alarm lamp (optional);
⑥
Safety stop block;
⑦
Gear rack;
⑧
Magnet;
⑨
Remote control;
