JR Vibe 90 3D User Manual

1-2

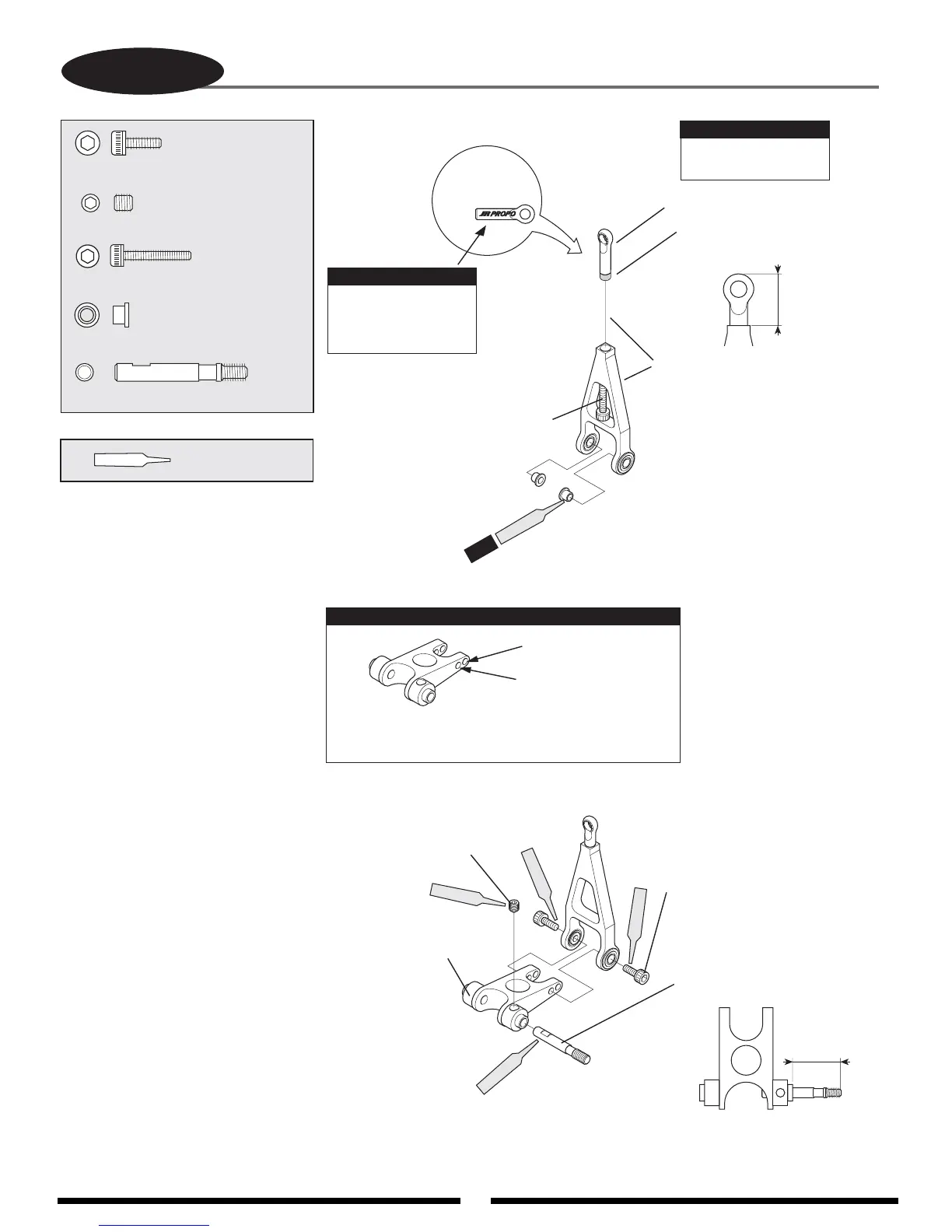

ELEVATOR A-ARM ASSEMBLY
..........................2 pcs
.............................2 pcs
...............................1 pc
.....1 pc
Socket Head Bolt, 3 x 8 mm
Socket Head Bolt, 2.3 x 15 mm
Set Screw, 4 x 4 mm
A-Arm Bearing Collar
A-Arm Link Base Spindle
Red
Red
Red
Red
18.5 mm
Socket Head Bolt, 3 x 8 mm (2 pcs)
A-Arm
Set Screw, 4 x 4 mm
A-Arm Base
Use Red
Threadlock
A-Arm
Bearing Collar (2 pcs)
Socket Head Bolt,
2.3 x 15 mm
11 mm
Elevator A-Arm
Remove 1 mm from the bottom
of this link using a hobby knife
Push link into A-Arm, then insert
2.3 x 15 mm Socket Head Bolt
Universal Link
2 pcs
Red
Remove JR
®
Propo
from outside of link
using a hobby knife.
Note:
Oil outside of link
to ease assembly.
Note:
*Connect the A-arm to the A-arm base
in the standard range position as shown.
Wide Range
Standard Range*
Note:
Apply a very thin coating of Threadlock
so that it will not seep into the bearing.
