JR XP810-3 User Manual

www.modelflight.com.au – World’s best source of JR products
1 . T ransmitter Controls
1
.

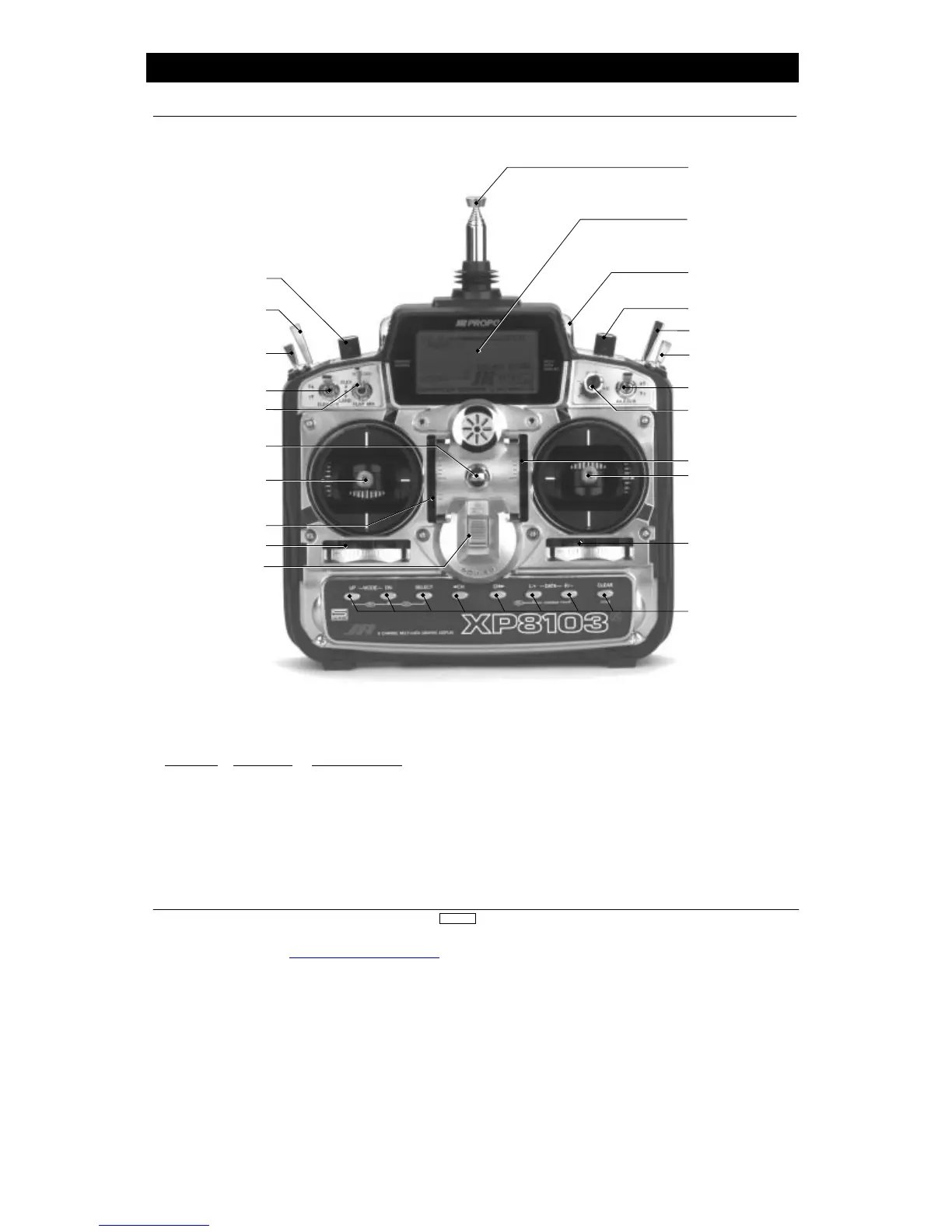

1 Control Identification and Location
A
ntenna
LCD Dis
p
la
y
(
Do Not Press
)
Dual Flap/Aileron
T
rim Knob
(
Pot #7
)
Car
r
y
in
g
Handle
T
imer T rainer Switch
A
ux 2 Flapron Flap Trim Kno
b
(Pot #5)
Mixin
g
Switch
Crow Switch
Rudde
r
Dual Rate Switch
Elevator Dual Rate Switch
A
ileron Dual Rate Switch
Flap Mixing Switch
 Reflex
 Of f
 Launch
Neck Strap Eyelet
Spoiler/Rudder Stic
k
Flap T rim Knob (Pot #6)
Elevator T rim
Aileron/Elevator Stick
S
p
oiler
T
rim
Rudder
T
rim
A
ileron
T
rim
Power Switch
In
p
ut Ke
y
s
Channel Assi
g
nment/Throttle
A
L T Throttle AL T
Channel # TX Function Airplane Function
1 Spoi Spoiler Channel
2 Ail 1 Left Aileron Channel (AIL1)
3 Elev Elevator Channel
4 Rudd Rudder Channel
5 Ail 2 Right Aileron Channel (AIL 2)
6 Flap Left Flap Channel for Dual Flaps
7 Aux 2 Right Flap Channel for Dual Flaps
8 Aux 3 Auxilla
r
y
3 Channel
This function makes the spoiler stick trim active only when the
spoiler stick is at less than 5 0%, which allows for fine adjustment
of the spoilers with the spoiler stick in the lower position.
GLID 100

JR XP810-3 Specifications

General

Brand	JR
Model	XP810-3
Category	Remote Control
Language	English
