1.Introduction
1-4
1.4 Construction
E
q
u
i
p
m
e
n
t
O
u
t
l
i
n
e

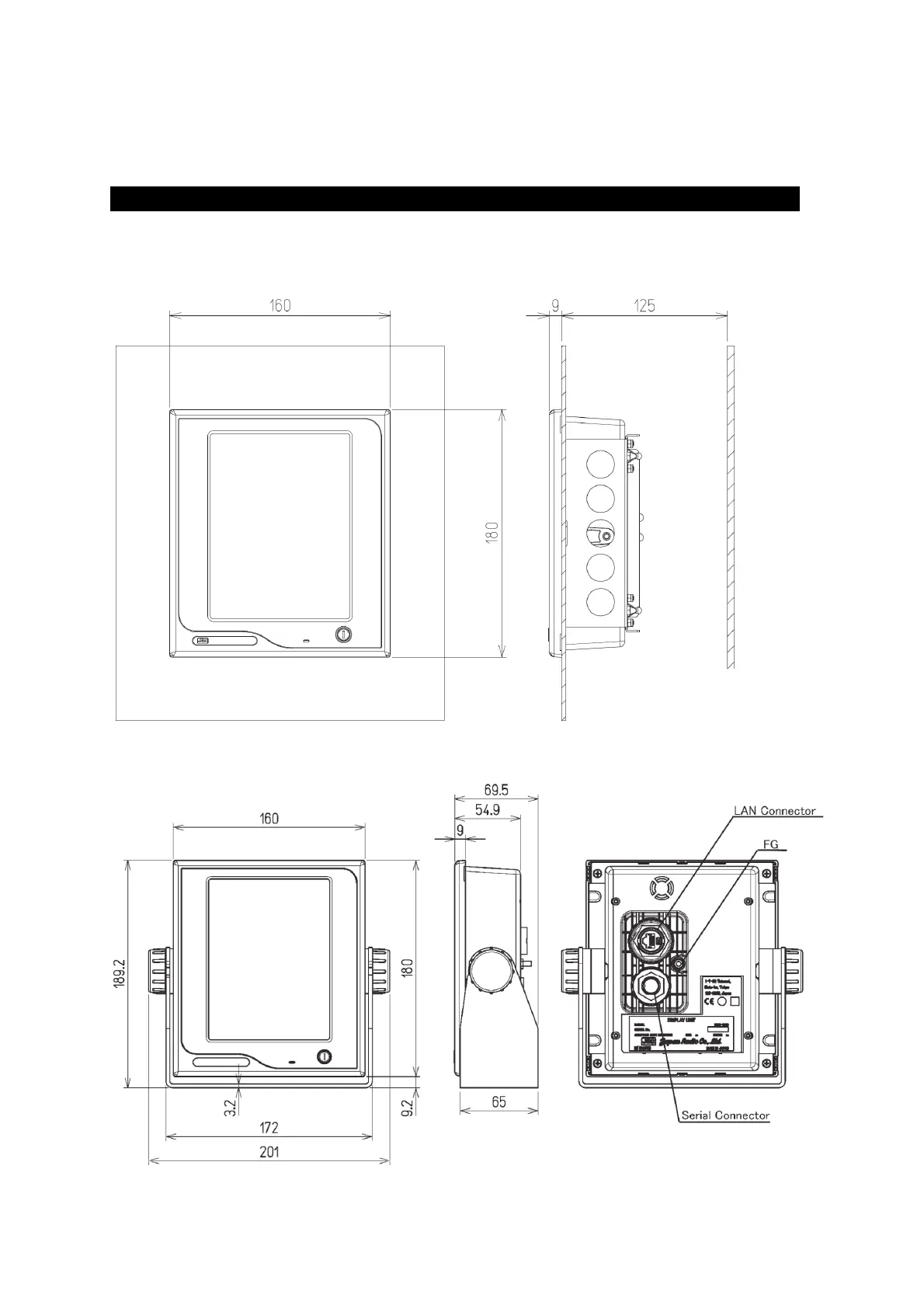

The following shows the external dimensions of the JFE-400.
External Dimension of NWZ-1650-E Display unit(Flash mount)
External Dimension of NWZ-1650-E Display unit(Desktop)
Unit : mm
Mass : Approximately 1kg
Unit : mm
Mass : Approximately 1.5kg
24
26
