2. Control Panel
2-1
2. Control Panel
This section describes the names and functions of the control panel, and its controls.

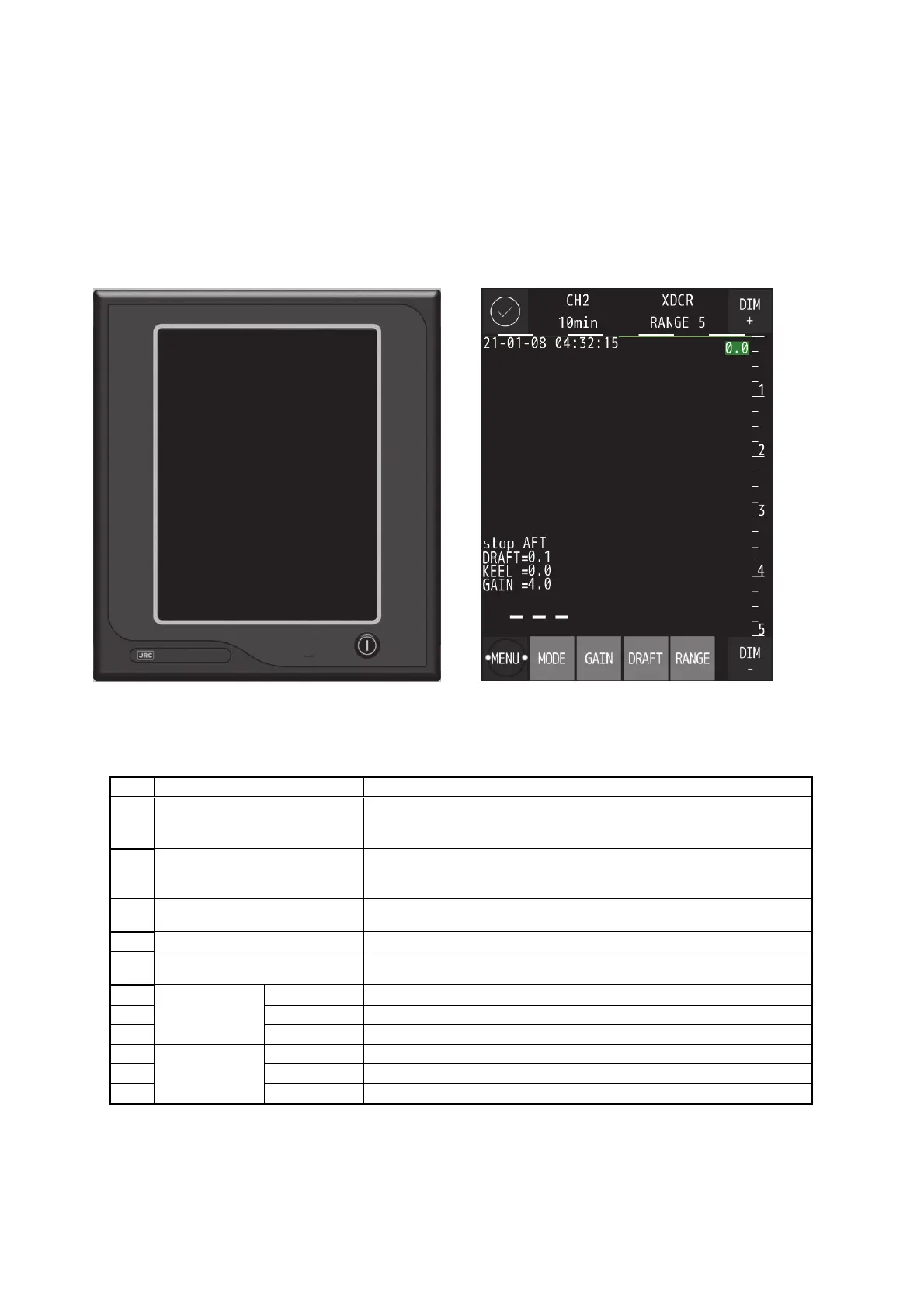

Figure 2-1 Display Unit and Screen
No.
Key Function
1
○
I
Switches the equipment power on and off.
Turn on and off: Press
○
I button
2
MENU Displays the menu screen.
To return the menu screen, press the MAIN key since the MENU key
will change to the MAIN key.
3
○
✓
When occurring alert, the icon will change depend on alert status.
And alert content will be displayed to the right of the icon.
4
DIM+/DIM- Adjusts the screen brilliance.
5
MODE Switches the display modes in order of STD mode, HIST mode,
DOCKING mode repeatedly.
6
STD/DOC
KING
GAIN Adjusts the sensitivity high or low.
7
DRAFT Sets the draft.
8
RANGE Switches the depth range to shallow or deep.
9
HIST RANGE Switches the depth range to shallow or deep.
10
ZOOM IN Switches the drawing time of the history shorter.
11
ZOOM OUT Switches the drawing time of the history longer.
