4. Operation
4-10

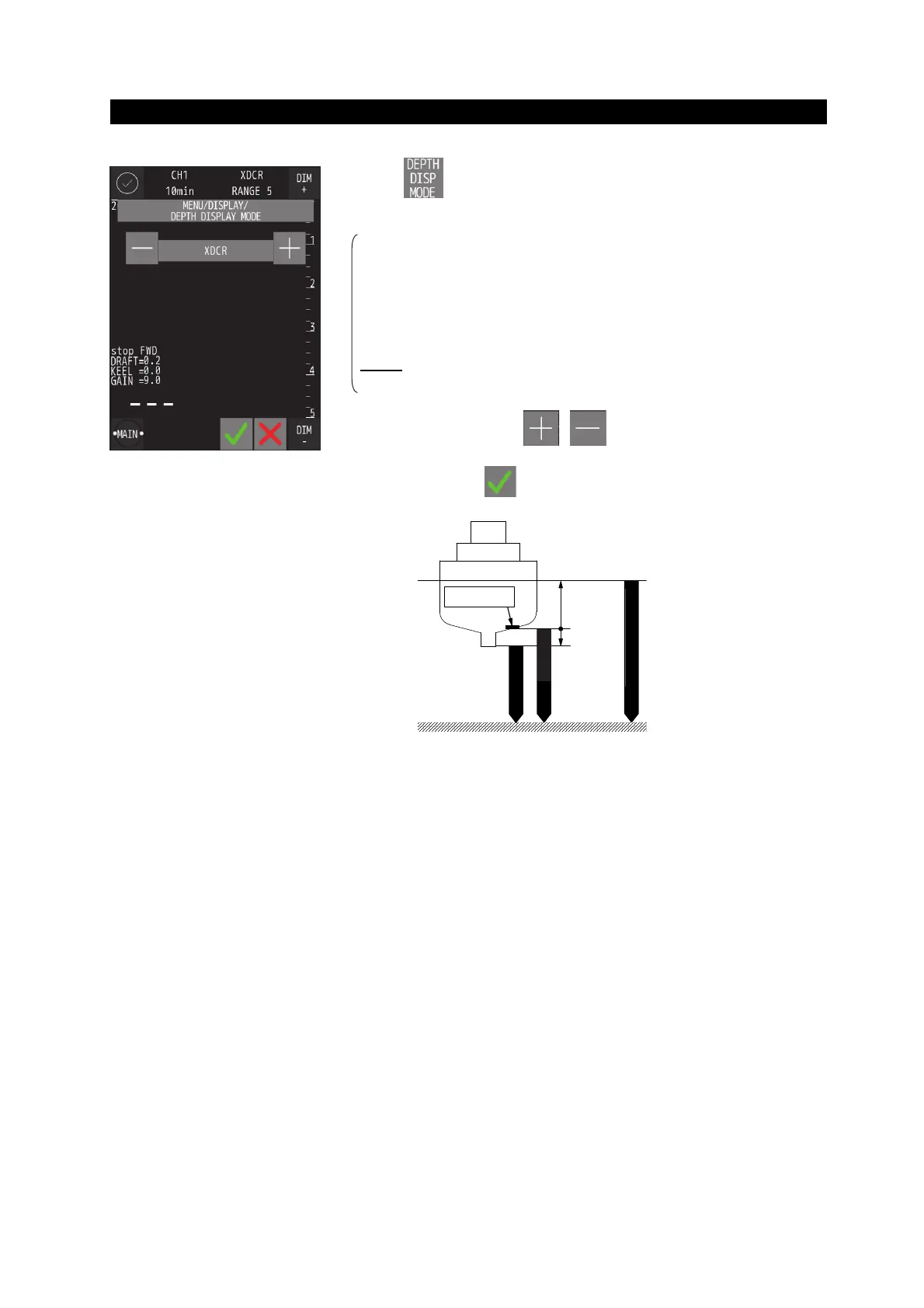

Setting Depth Display
◎The standard when the depth value is displayed is selected.
Transducer
Draft
Keel
height
Water surface
(Sea bottom)
ＤＩＳＰ ＳＵＲＦ
ＤＩＳＰ ＴＲＡＮＳ
ＤＩＳＰ ＫＥＥＬ
・ Touch and the settings will be displayed.
Set content：SURF/KEEL/XDCR
SURF：The record and the depth value in which the draft adjusted value is
considered are displayed.
KEEL：The record and the depth value in which the keel correction value
is considered are displayed.
XDCR：The record and the depth value right under the transducer
are displayed.
・ Change the settings with
, .
・ After setting, touch
.
XDCR
To Next Page
