2-29

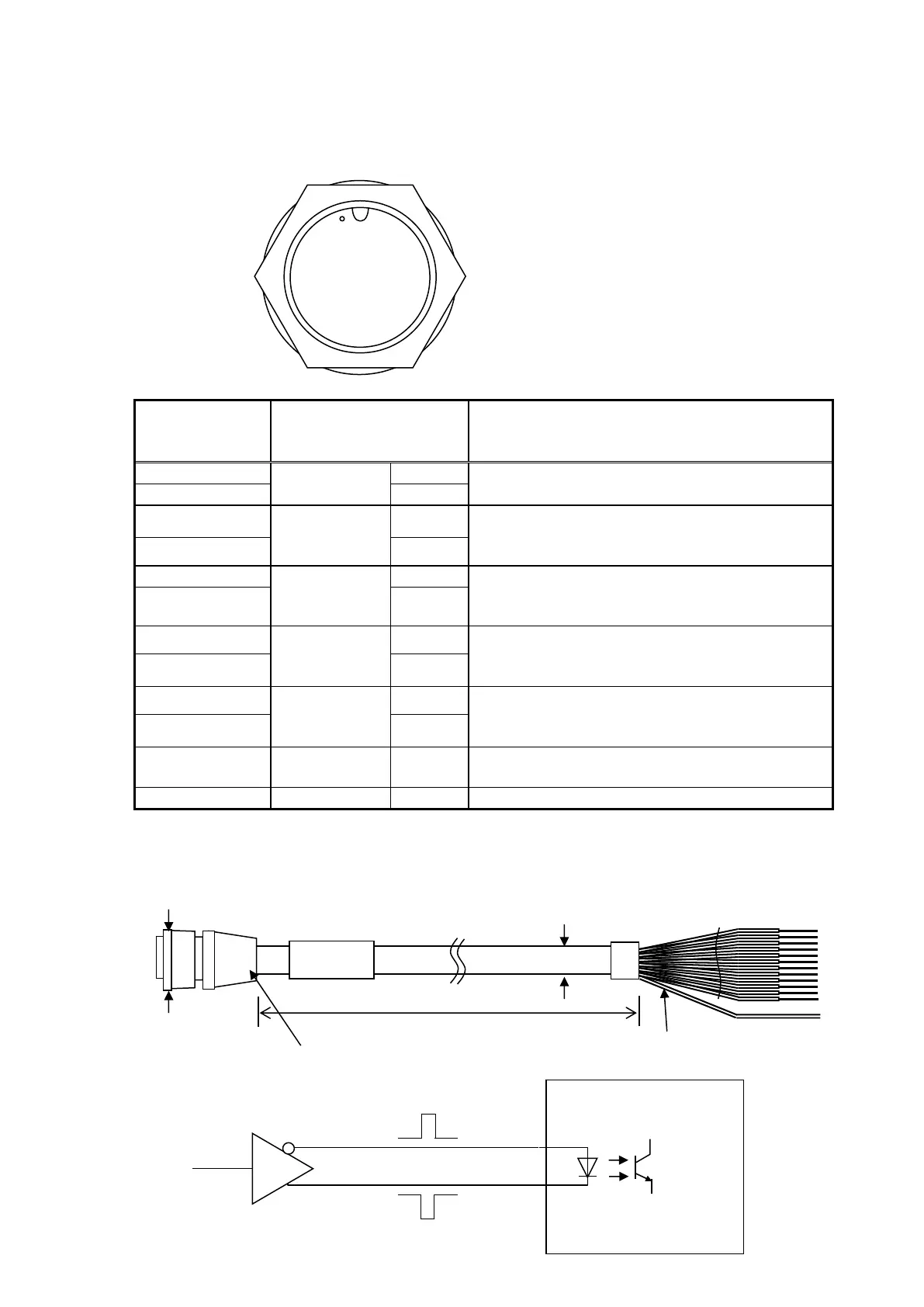

[Data IN/OUT 2 Connector]
DATA IN/OUT 2 (Label name of the back of Display)
Data Cable: CFQ-5374 (option)
Terminal
Number
(CFQ-5374)
Name Explanation
1 (Brown)
DATA IN4
(RXD4)
A
Receives the tide current data (Data IN4).
(Refer to "5.3.7 Data I/O Settings (DATA I/O)")
2 (Red) B
3 (Orange)
DATA OUT1
(TXD1)
A
Outputs as defined by "Data OUT 1"
configuration.
(Refer to "5.3.7 Data I/O Settings (DATA I/O)")
4 (Yellow) B
5 (Green)
DATA OUT1
(SCK1)
A Outputs clock when AD-10 configuration is
performed for "Data OUT 1".
This port is not used excluding AD-10. (*2)
6 (Blue) B
7 (Purple)
DATA OUT5
(TXD5)
A
Outputs as defined by "Data OUT 5"
configuration.
(Refer to "5.3.7 Data I/O Settings (DATA I/O)")
8 (Grey) B
9 (White)
DATA OUT4
(TXD4B) (*1)
A
Outputs as defined by "Data OUT 4"
configuration.
(Refer to "5.3.7 Data I/O Settings (DATA I/O)")
10 (Black) B
11 (Pink)
GND
ISO
Connects serial transmission cable ground.
12 (Light Blue) GND Chassis ground
*1 : Outputs parallel to the SENSOR connector 11 and 12 pins. (Refer to page 2-19)
*2: 4 pins are used for AD-10. Refer to “Output of AD-10 Format” in “5.3.7 Data I/O Settings
(DATA I/O)” for details.
Appearance of Connection Cable
① ⑧
② ⑨ ⑦
⑪ ⑫
③ ⑩ ⑥
④ ⑤
CFQ-5374
(CFQ5374-15)
CFQ-5374 3m
（CFQ5374-15 15m）
A
B
External Device
Approx.Φ6.5mm
Approx.Φ18mm
Shield for cable
Connector
Product by LTW : LTWCD-12BFFA-LI80
To Next Page
