– 52 –
Switch/display Description
1
Delivery data selection
switch
This switch is used to select the data to be delivered. When it is pressed, the com-
munication data selection screen is displayed.
2
ISS data communication
switch
This switch is used to select the type of ISS communication data. When it is
pressed, the ISS communication type selection screen is displayed.
3
Cancel switch
This switch is used to close the communication selection screen and to return the
screen to the work management screen.

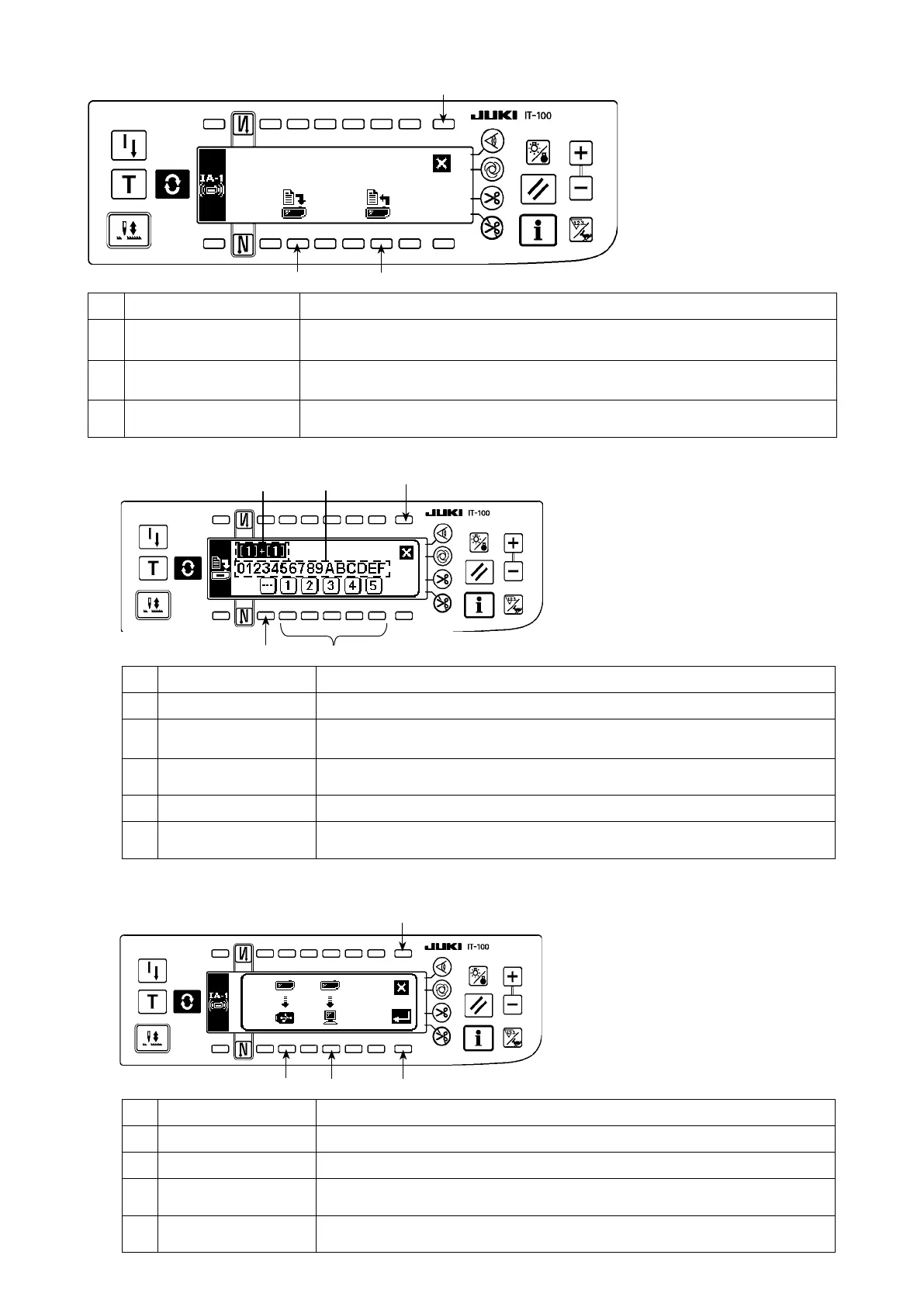

<Delivery data selection screen>
<ISS communication data selection screen>
(6) Communication selection screen
A
B
3
1 2 4
3
1
2
3
2
1
Switch/display Description
1
Clear switch This switch is used to bring the ID status to the unselected state.
2
Delivery data setting
switch
This switch is used to select an abbreviated number for the data to be delivered.
3
Cancel switch
This switch is used to cancel the operator ID selection and to return the screen
to the work management screen.
A
Delivery data display This section displays the two-digit abbreviated number selected with
1
.
B
Delivery data display
This section displays the delivery data which is designated as the one for select-
ed abbreviated number with 16-digit alphanumeric characters at the maximum.
Switch/display Description
1
USB selection switch This switch is used to set the destination of the ISS data to the USB thumb drive.
2
PC selection switch
This switch is used to set the destination of the ISS data to the personal computer.
3
Cancel switch
This switch is used to cancel the selected communication data and to return the
screen to the work management screen.
4
Enter switch
This switch is used to output the data to the selected destination and to return
the screen to the work management screen.
