3. LCD DISPLAY SECTION AT THE TIME OF INDEPENDENT SEWING

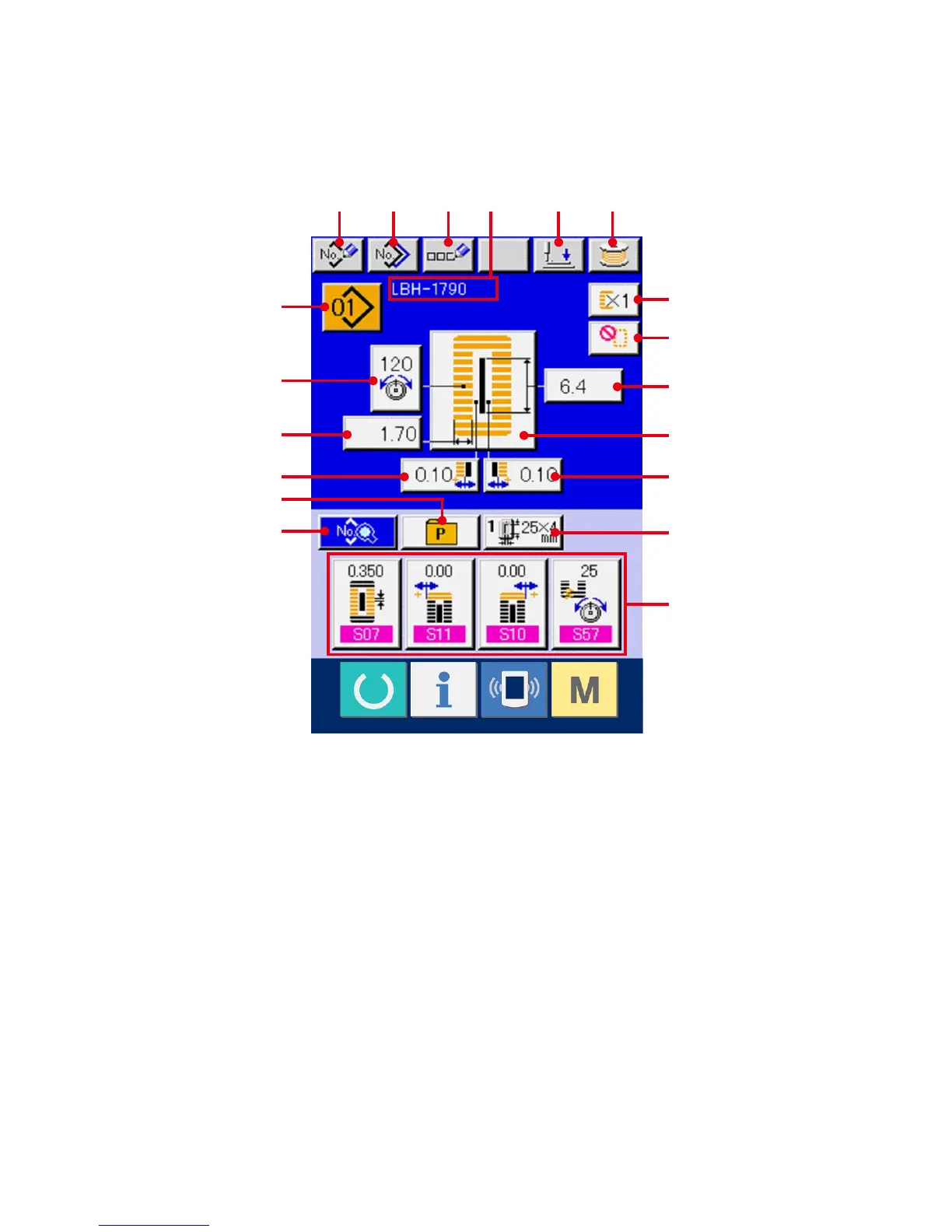

3-1 Data input screen

A B C D E F

M

N

O

P

Q

R

S

G

H

I

J

L

K
