3.2.5 Numerical representation

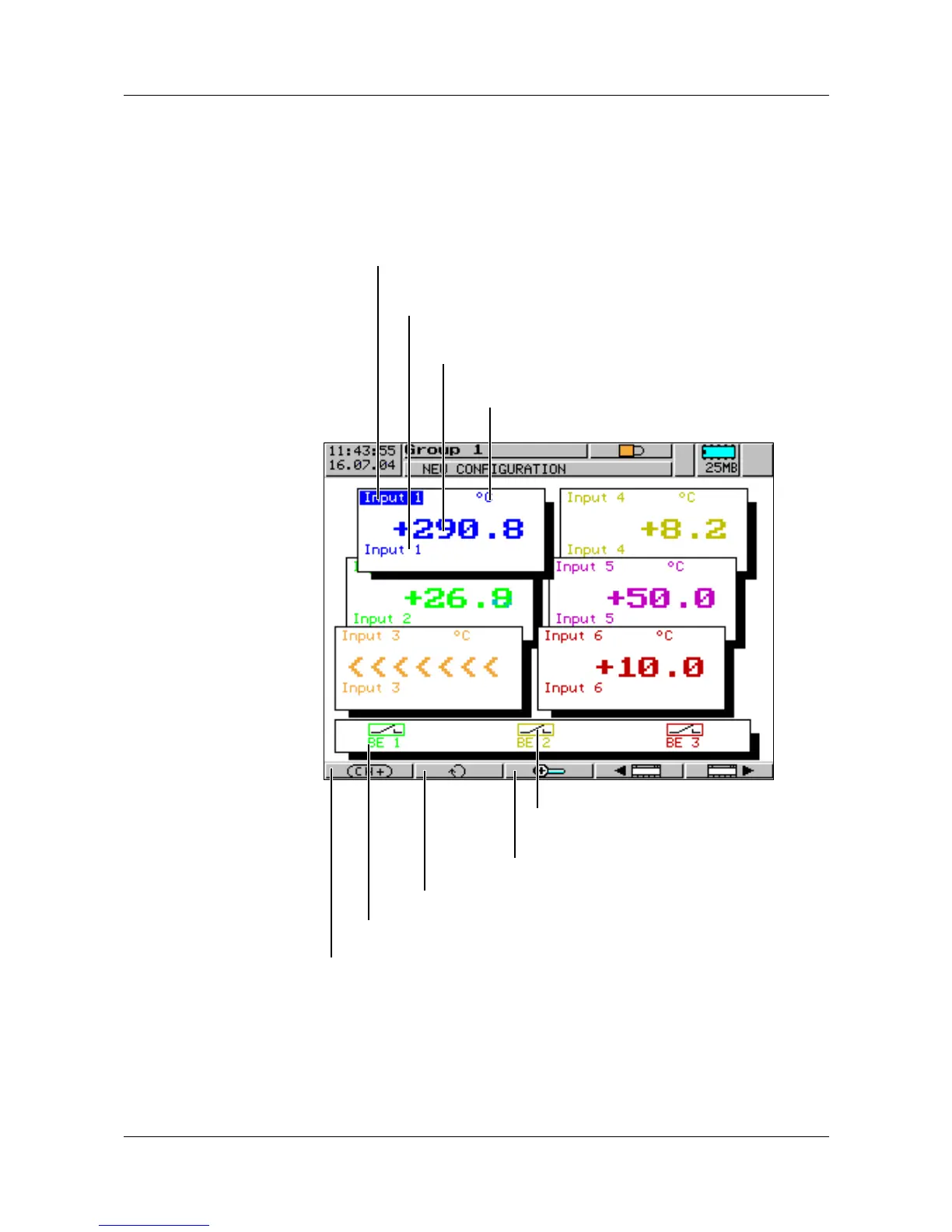

In numerical representation, the currently measured values of a group are
shown in large characters. The exact measurements can then be read easily
from a distance of several meters.
The window of the selected channel is in the foreground so that the channel
name, description and unit can be seen.
Channel name
Channel description
Latest measurement
Unit of measurement
Select next channel
Status indication of the digital channels
Name of the digital channel
Switch to the next active group
Numerical 1-channel representation of
the selected channel
