3.2.6 Numerical 1-channel representation
The numerical 1-channel representation is called up from the numerical
representation, via the softkey .

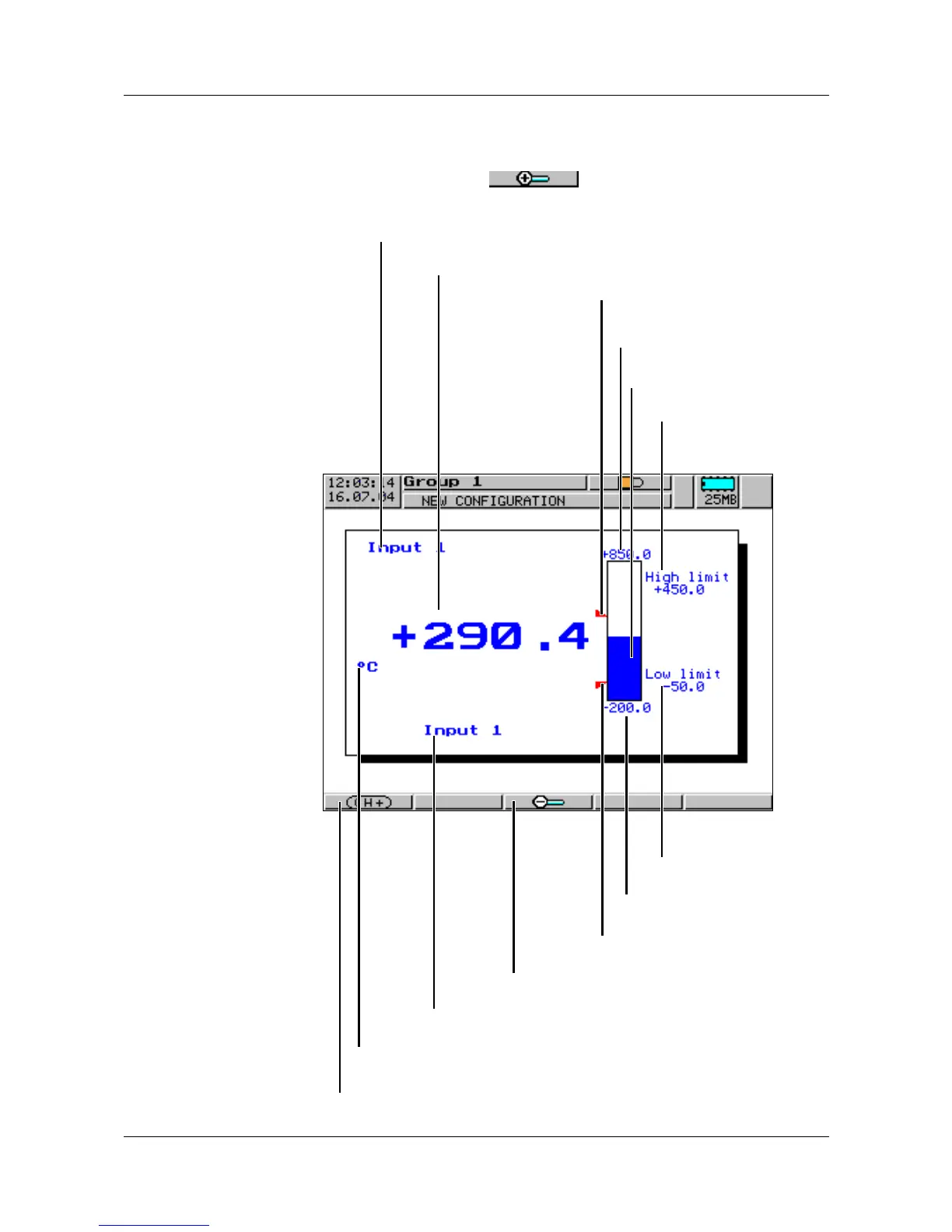

In the numerical 1-channel representation, the latest measurement of a
channel is shown in large letters both numerically and as a bar graph.
Channel name
Latest
measurement
Upper limit index
Scaling end
Latest measurement
Unit of measurement
Channel description (2 x 20 characters)
Low limit index
Scaling start
Low limit
High limit
Select next channel
Back to numerical display
