3 Operation and visualization
Freely definable
texts
146 texts belonging to the group of standard texts can be freely defined, up to
a length of 20 characters.
Supplementary
text
The recorder automatically supplements the texts by “ON” or “OFF” in order to
distinguish between the appearance and disappearance of the signal.
Example:
Interface text A text of up to 20 characters length can be entered in the event list via the
serial interface. For further information, please refer to the Interface
Description B 70.6570.2.0.

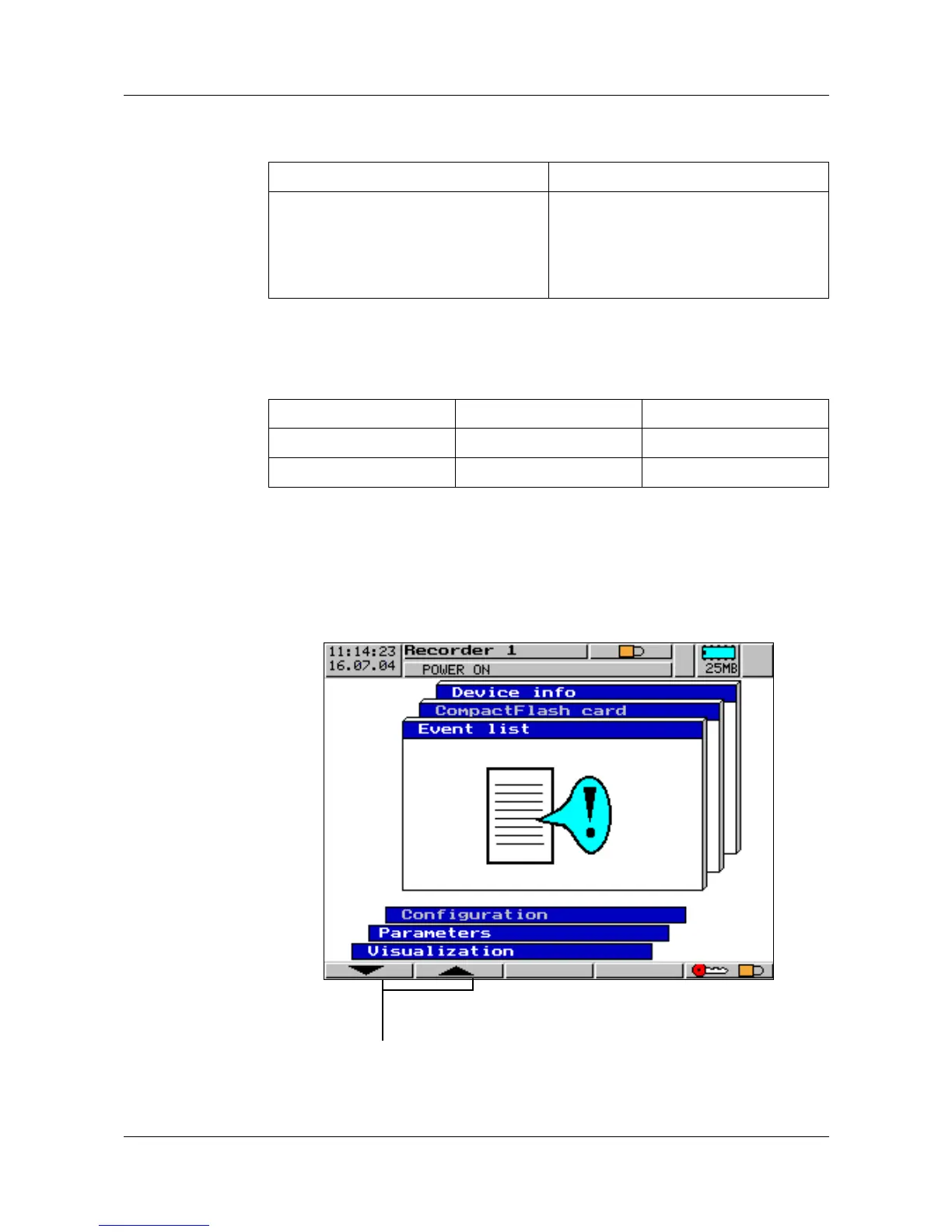

Start menu➔
Event list
The event list is called up via the start menu:
Standard text Comment
“Text 1 — 146”
In the case of logic signals and alarms,
the supplementary text “ON” or “OFF” is
added automatically, on counters the
current count is added.
146 freely definable texts
with 20 characters each
Standard text Supplementary text Entry in event list
Logic input 2 ON Logic input 2 ON
Logic input 2 OFF Logic input 2 OFF
h Select operating level Event list
h Enter selection with E
To Next Page
