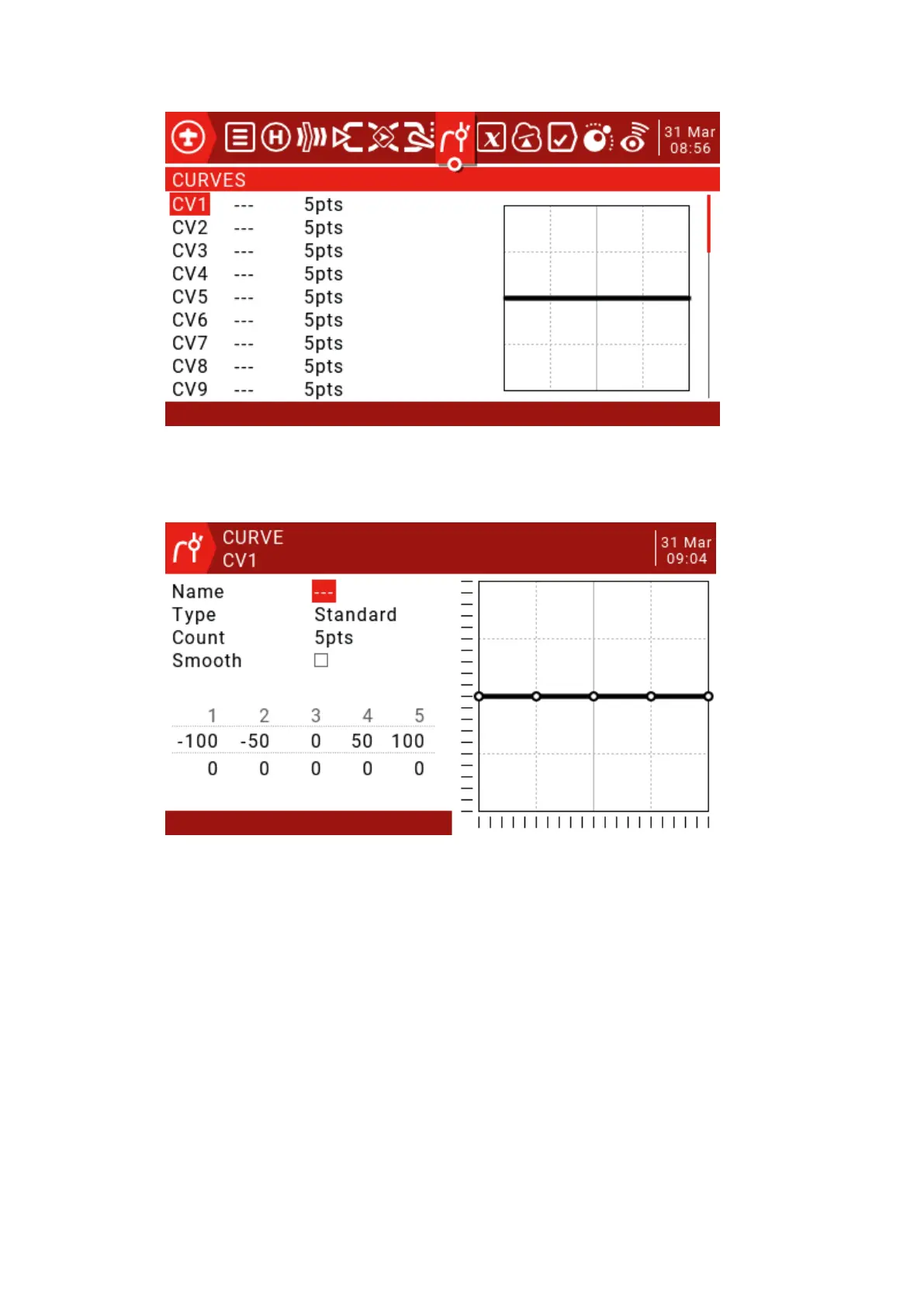

The curve can be between 2 and 17 points and can have a fixed or user definable x
coordinate.
The X value represents the input and the Y value represents the output.
Name: For convenience, you can name the curve.
Type:
Standard: Only Y points can be edited, ranging from -100 to 100.
Custom: Both X and Y points are editable, ranging from -100 to 100.
Count: The number of points on the curve, between 2 and 17.
Smooth: If checked, creates a smooth curve from all points.
Edit Coordinates: Moves the cursor to the X and Y coordinates.
Depending on the type selected above, this allows writing the X coordinate of the standard
curve, or the X and Y coordinates of the custom curve.
