7
2.2. Backup remote firmware
Before upgrading the remote control firmware, it is recommended to back up the firmware and
model configuration file of the current remote control to prevent loss.
Open the Companion software and set the remote control model to T16 in the setup menu.
Turn off the remote control or enter BOOTLOADER mode, connect the computer with a USB
cable.

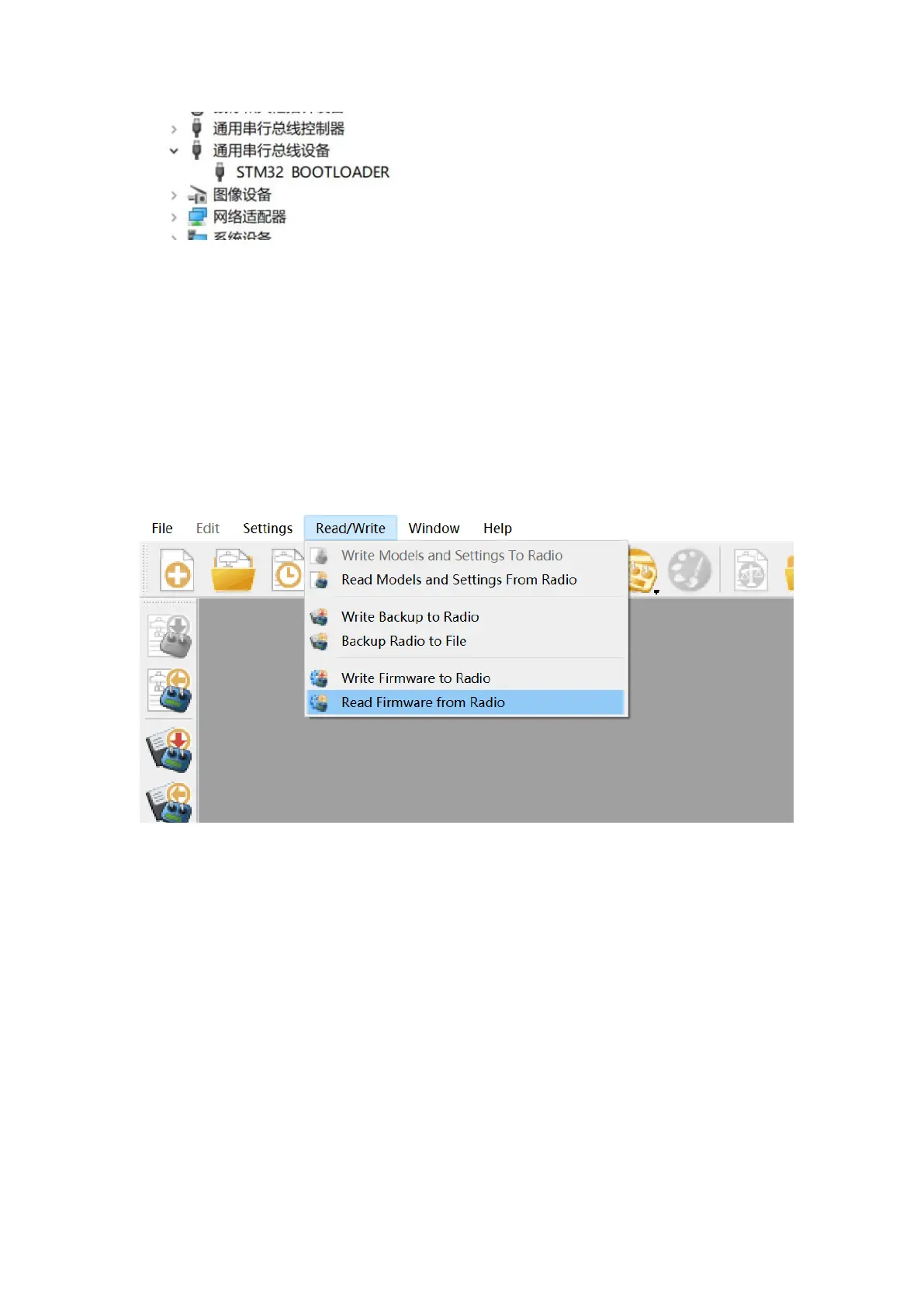

Click the read/write menu and select to read the firmware from the remote control (as shown
below)
In the pop-up dialog box, you can choose where to save the backup firmware and the file
name you want to save.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Jumper T16 and is the answer not in the manual?

Jumper T16 Specifications

General IconGeneral
Channels16
Operating SystemOpenTX
USB PortYes
External Module SupportYes
SD Card SlotYes
SpeakerYes
Vibration AlertYes
BacklightYes
GimbalsHall sensor
Module BayYes
Transmitter Frequency2.4GHz
Antenna Gain2dBi
Battery Capacity3000mAh
Operating Current200mA
Charging PortYes
Internal ModuleJP4-in-1 Multi-protocol Module
