C Transportation and commissioning

1 Transport

Depending on the overall height of the hoist frame and local conditions the on-site

transport can be carried out in one of three different ways:

– Standing, with hoist frame and load lifting device mounted

(for low height versions)

– Standing, with tilted hoist frame and dismounted load lifting device, resting on

transport frame

– Standing, with hoist frame and load lifting device dismounted

(for tall versions)

On-site assembly of the truck, commissioning, and instructing of operator must be

carried out by trained personnel of the manufacturer. Transport regulations and erec-

tion instructions must be observed!

2 Transportation by crane

Ensure that only lifting gear of adequate capacity is used (for weight of the truck refer

to the truck identification label. See chapter B).

– Park the truck and render it safe (refer to

chapter E).

– If the mast is mounted, the crane points

are at the top of the mast crosshead.

– If the mast is tilted, the lifting gear must

be mounted at the top of the mast cros-

shead and at the crosshead on the bot-

tom of the mast.

– If the truck is to be lifted by crane with til-

ted mast, the transportation parts must

be mounted.

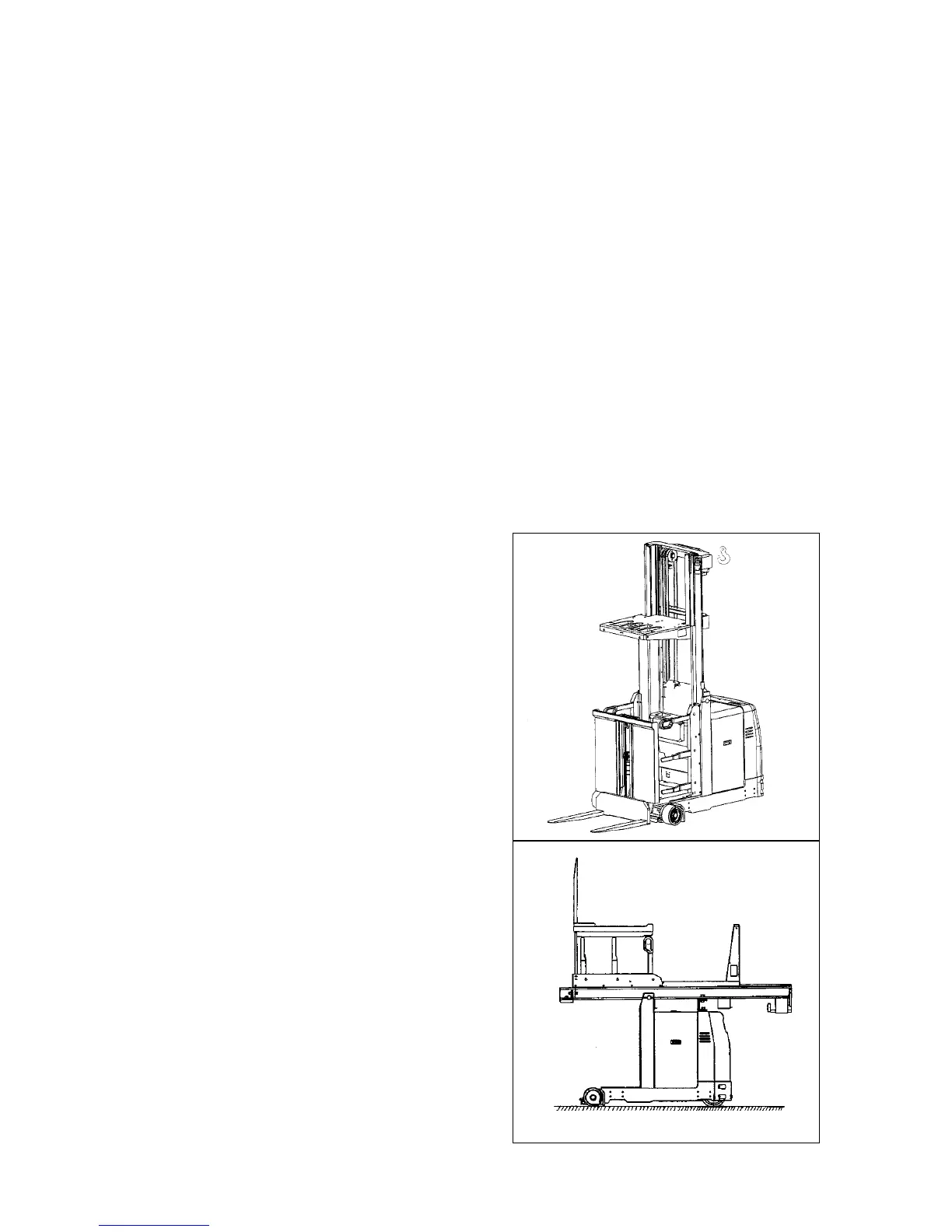

Secure the hoisting gear to the hoisting

points (1) ensuring that the hoisting gear

will not slip!

C 1
