Jungheinrich KMS 100 User Manual

F 13
1298.GB

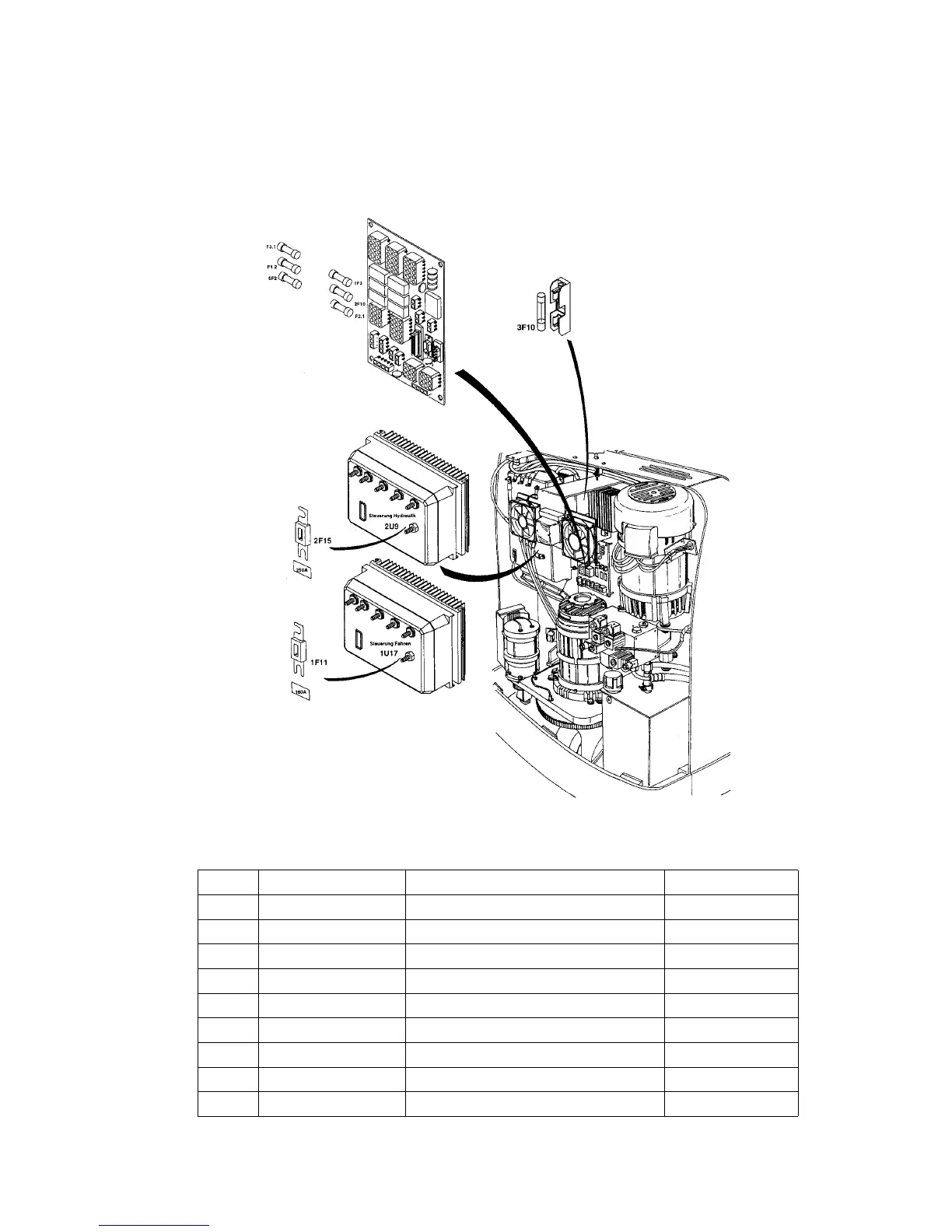

5.13 Checking the electric fuses
– Prepare the truck for the performance of servicing and maintenance operations (re-
fer to chapter F).
– Referring to the table, check all fuses for correct rating and replace, where required.
Item Description Protection of: Value
12 2F15 Hydraulic system 250 A
13 1F11 Driving 160 A
14 3F10 Steering system 30 A
15 F3.1 Control current 24 V / 10 A
16 F1.2 Converter U16 input 48 V / 3.15 A
17 5F2 Converter U16 output 6,3 A
18 F2.1 Control current 48 V / 10 V
19 1F3 Drive control 3.15 A
20 2F10 Hydraulic control 3.15 A
F 13
1298.GB
5.13 Checking the electric fuses
– Prepare the truck for the performance of servicing and maintenance operations (re-
fer to chapter F).
– Referring to the table, check all fuses for correct rating and replace, where required.
Item Description Protection of: Value
12 2F15 Hydraulic system 250 A
13 1F11 Driving 160 A
14 3F10 Steering system 30 A
15 F3.1 Control current 24 V / 10 A
16 F1.2 Converter U16 input 48 V / 3.15 A
17 5F2 Converter U16 output 6,3 A
18 F2.1 Control current 48 V / 10 V
19 1F3 Drive control 3.15 A
20 2F10 Hydraulic control 3.15 A
