Jungheinrich KMS 100 User Manual

1298.GB
E 14
5.6 Lifting and lowering outside and inside the shelf aisles
A
In elevated position the operator is not permitted to leave the operator's seat - it is
prohibited to climb onto building structures or other vehicles.

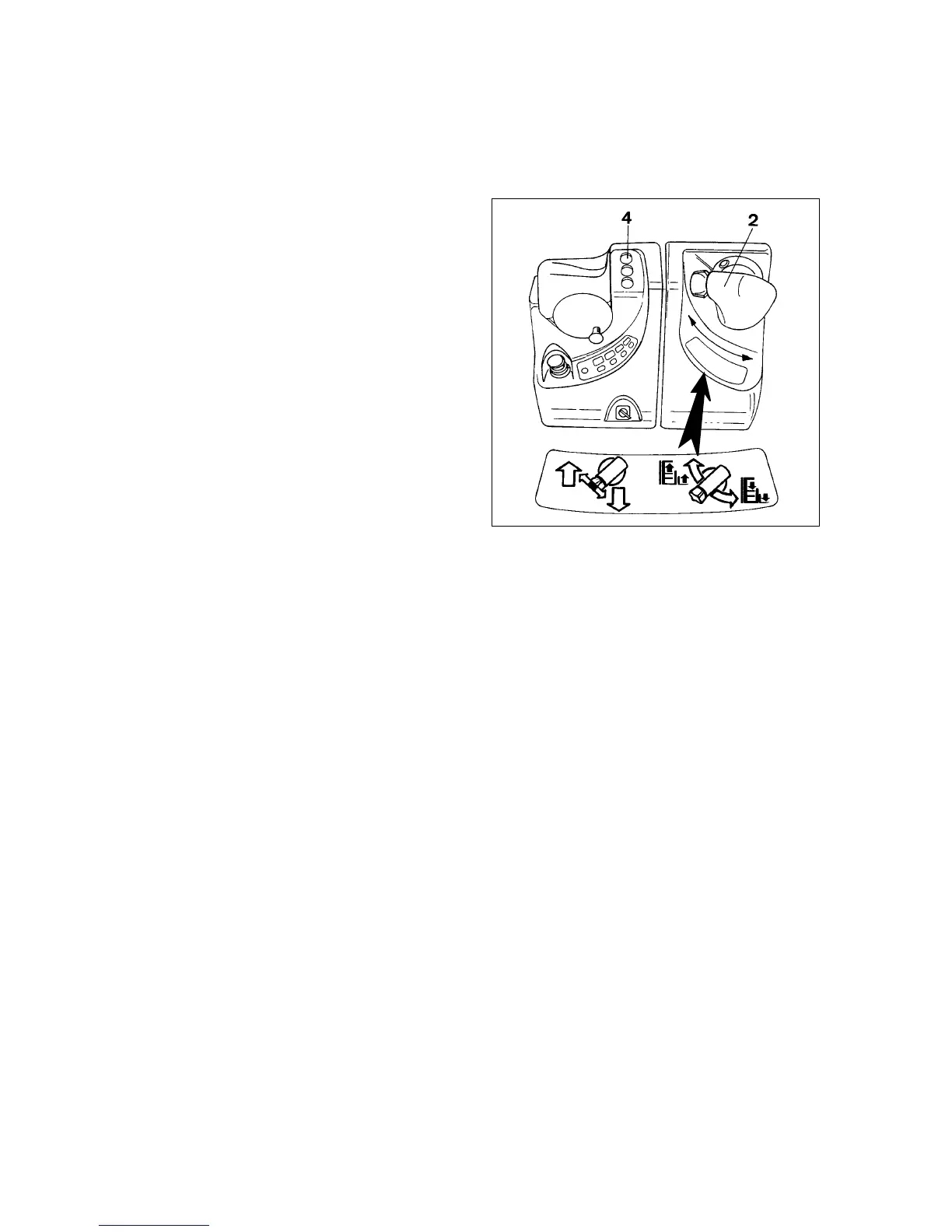

Lifting - lowering (main lifter)
– Step on the foot-operated button.
– Turn hydraulic control knob (2) simul-
taneously
Clockwise turn = lifting
Anti-clockwise turn = lowering
A
The lifting and lowering speeds are pro-
portional to the rotary motion of the hy-
draulic control knob.
If the line break safety device is activa-
ted, it can be unlocked by lifting it again.
Lifting - lowering (auxiliary lifter)
– Step on the foot-operated button.
– Press pushbutton (4) for auxiliary lifter.
– Turn hydraulic control knob (2) simultaneously
Clockwise turn = lifting
Anti-clockwise turn = lowering
The lifting and lowering speeds are proportional to the excursion of the hydraulic con-
trol knob.
1298.GB
E 14
5.6 Lifting and lowering outside and inside the shelf aisles
A
In elevated position the operator is not permitted to leave the operator's seat - it is
prohibited to climb onto building structures or other vehicles.
Lifting - lowering (main lifter)
– Step on the foot-operated button.
– Turn hydraulic control knob (2) simul-
taneously
Clockwise turn = lifting
Anti-clockwise turn = lowering
A
The lifting and lowering speeds are pro-
portional to the rotary motion of the hy-
draulic control knob.
If the line break safety device is activa-
ted, it can be unlocked by lifting it again.
Lifting - lowering (auxiliary lifter)
– Step on the foot-operated button.
– Press pushbutton (4) for auxiliary lifter.
– Turn hydraulic control knob (2) simultaneously
Clockwise turn = lifting
Anti-clockwise turn = lowering
The lifting and lowering speeds are proportional to the excursion of the hydraulic con-
trol knob.
