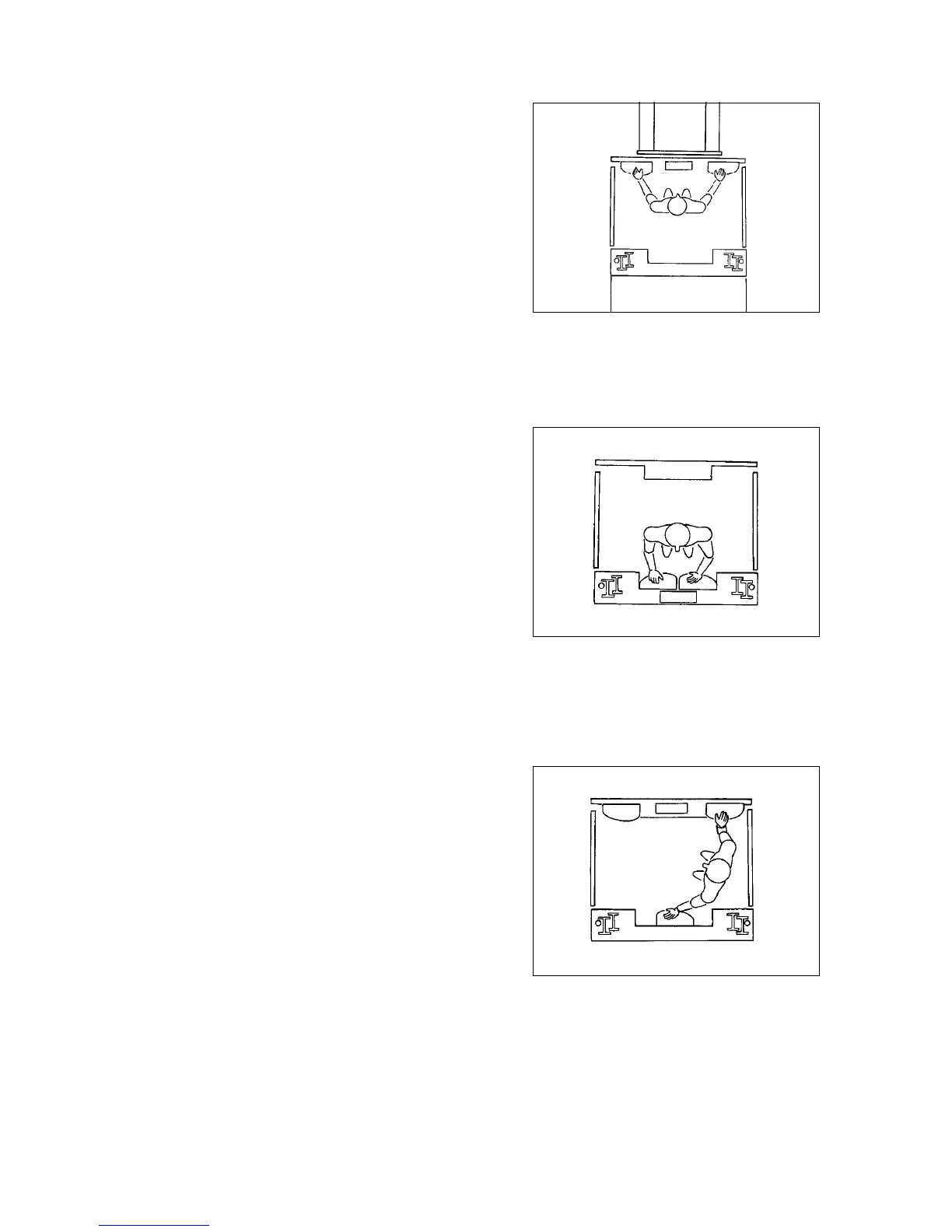

2 Operating panel arrangement variants

Variant I

In case of standard equipment the operating

panels are arranged at the front, i.e. in front of

the auxiliary lifter. Accordingly the information

display under the driver's overhead guard is

also arranged in load direction.

Variant II

The operating panel and the information dis-

play are arranged at the mast side. The infor-

mation display is arranged under the driver's

overhead guard.

Variant III

The operating controls are arranged diagonal-

ly. The driver is looking to the left in load direc-

tion.

The operating panel module "stearing" is ar-

ranged at the mast side and the "master pilot"

is arranged at the load side. The information

display is located at the load side under the

overhead guard of the driver. The auxiliary lif-

ter is operated at the load side.
