E 4
3 Description of controls and indicating instruments

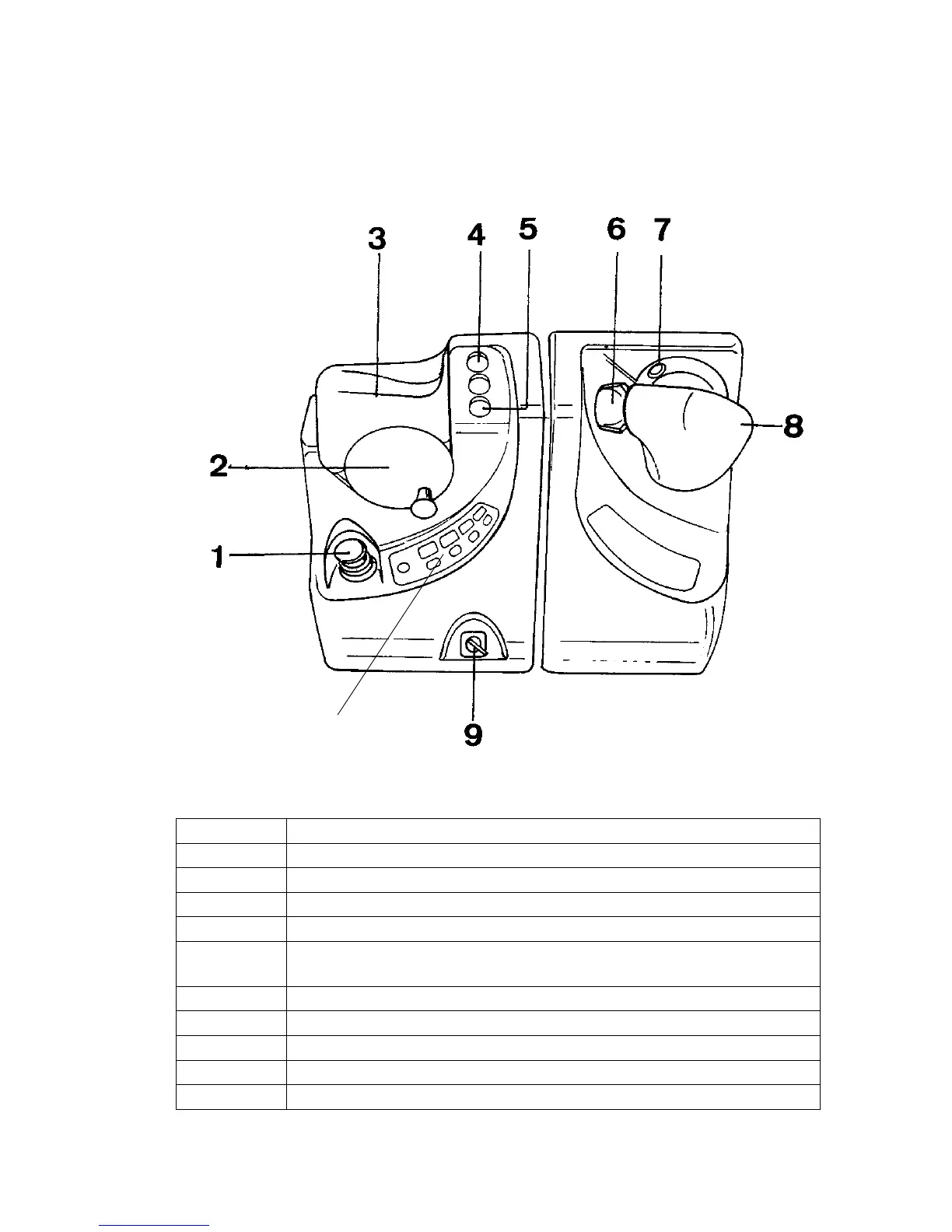

3.1 Operating controls and displays at the instrument panel
Pos. Function
1 Emergency stop master switch
2 Steering
3 Supporting strap (two-hand operation)
4 "Pushbutton“ lift switch-off
5 "Pushbutton“ track guidance = drive wheel in straight forward position
induction guide = induction guide on
6 Drive control knob
7Horn
8 Hydraulic control knob (two-hand operation)
9 Key switch
10 Optional function keys
