Jungheinrich KMS 100 User Manual

1298.GB
E 24
6.9 Recovering the truck from a narrow aisle
To recover the truck from the narrow aisle, disengage brakes.
m
Deactivating the brakes may only be carried out by authorized and trained personnel!
If the brakes are deactivated, the truck must be parked at even floor level, since there
is no braking action.
– Fully lower the driver’s cabin.
A
Ask for the help of a second person. The second person must be trained and familiar
with the recovery procedure.

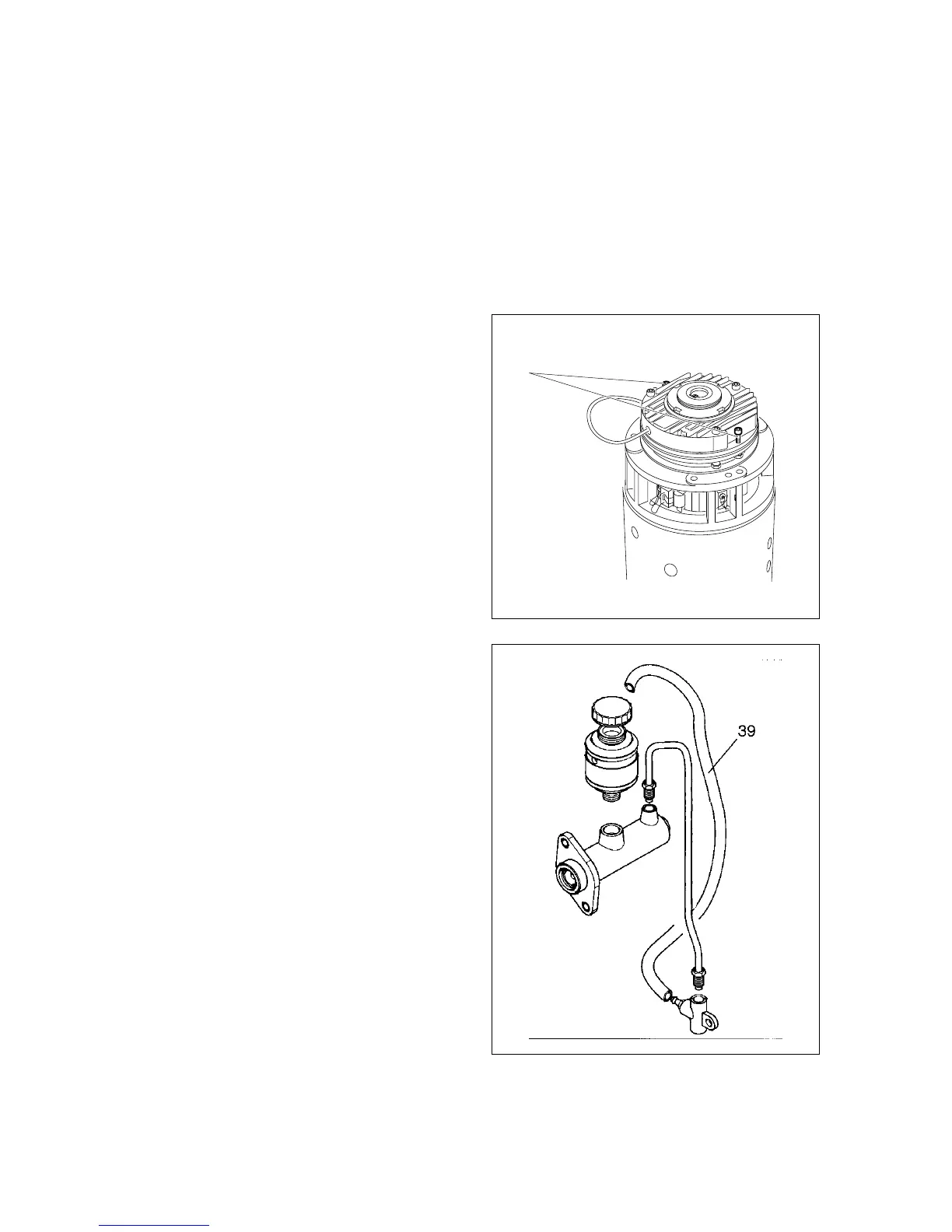

Loosen brake of the drive wheel
– Dismount the cover of the rear electro-
nics compartment.
– Screw in set screws (40) at the ma-
gnetic brake located above the drive
motor in order to loosen it.
Loosen brake of the drive wheel
Push tube (39) onto vent connection and
insert the other end of the tube into the
brake fluid reservoir located above.
f
Brake fluid is under pressure.
Danger of causticization!
– Open vent valve and allow emerging
brake fluid to drain into the brake fluid
reservoir.
– Close vent valve and brake fluid reser-
voir.
– The operatability of the brake system
is restored after restoring power and
after operating the foot switch several
times.
– Secure the tow rope to the rear weight
and carefully pull truck out of the nar-
row aisle.
m
Check braking deceleration value when
recommissioning the truck.
This work must only be carried out by
authorized service personnel.
40
1298.GB
E 24
6.9 Recovering the truck from a narrow aisle
To recover the truck from the narrow aisle, disengage brakes.
m
Deactivating the brakes may only be carried out by authorized and trained personnel!
If the brakes are deactivated, the truck must be parked at even floor level, since there
is no braking action.
– Fully lower the driver’s cabin.
A
Ask for the help of a second person. The second person must be trained and familiar
with the recovery procedure.
Loosen brake of the drive wheel
– Dismount the cover of the rear electro-
nics compartment.
– Screw in set screws (40) at the ma-
gnetic brake located above the drive
motor in order to loosen it.
Loosen brake of the drive wheel
Push tube (39) onto vent connection and
insert the other end of the tube into the
brake fluid reservoir located above.
f
Brake fluid is under pressure.
Danger of causticization!
– Open vent valve and allow emerging
brake fluid to drain into the brake fluid
reservoir.
– Close vent valve and brake fluid reser-
voir.
– The operatability of the brake system
is restored after restoring power and
after operating the foot switch several
times.
– Secure the tow rope to the rear weight
and carefully pull truck out of the nar-
row aisle.
m
Check braking deceleration value when
recommissioning the truck.
This work must only be carried out by
authorized service personnel.
40
