Jungheinrich TFG 320s User Manual

05.10 EN
16
2 Assemblies and Functional Description

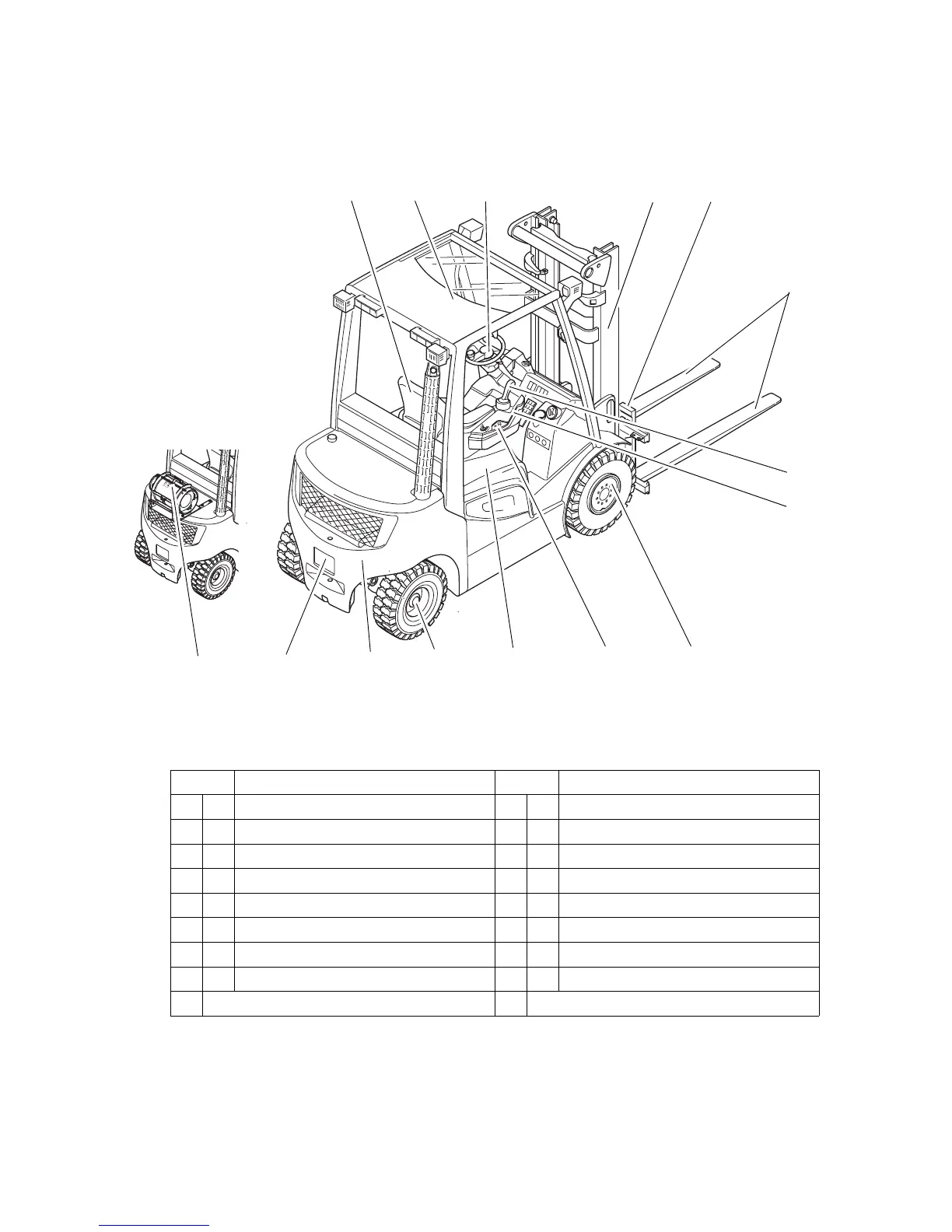

2.1 Assembly Overview
S
T
A
R
T
1
7
8
10
6
9
12
14
13
11
15
23 45
Item Description Item Description
1 t Driver's seat 9 t Drive
2 t Overhead guard 10 t Emergency Disconnect switch
3 t Steering wheel 11 t Engine bonnet
4 t Mast 12 t Steer axle
5 t Fork carriage 13 t Counterweight
6 t Fork tines 14 t Trailer coupling
7 t Lift mechanism control 15 t LPG bottle (TFG only)
8 t Control / display unit
t= Standard equipment o= Optional equipment
