05.10 EN
98

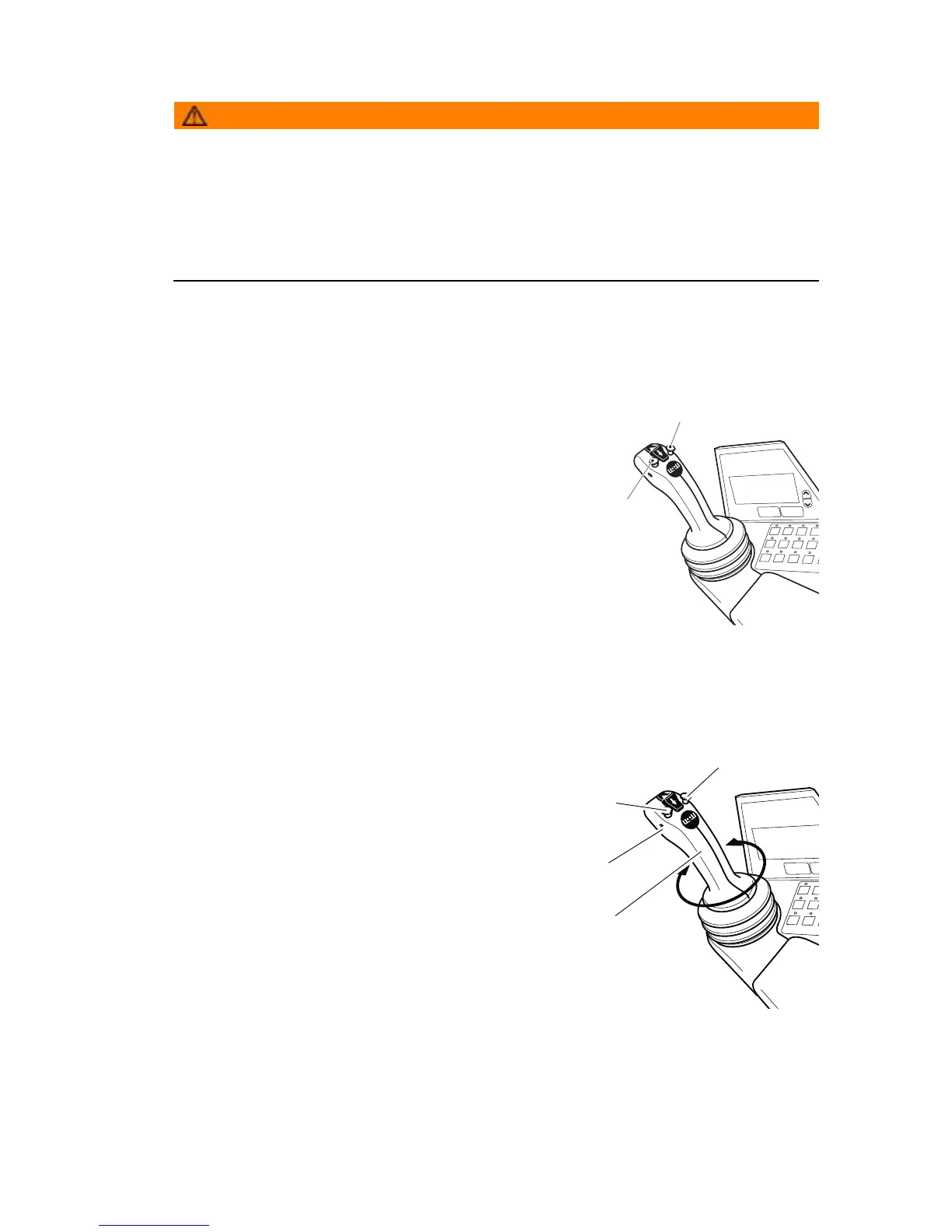

4.15 Operating additional attachments for the Multi Pilot
WARNING!
Incorrect symbols can cause accidents
Symbols on controls that do not depict the function of the attachments can cause
accidents.
XMark the controls with symbols that indicate their function.
XSpecify the attachments’ direction of movement in accordance with ISO 3691-1 so
that they match the controls’ direction of movement.
4.15.1 Multi Pilot with control of ZH1 hydraulic port
Z Depending on the attachments used the
buttons (148, 149) are assigned the function of
the attachment. Levers that are not required are
void. For connections (see "Assembly and
hydraulic ports of additional attachments" on
page 100).
Procedure
• Operating the hydraulic port ZH1:
Press button (148) or button (149).
The attachment’s function is performed.
4.15.2 Multi Pilot with control of ZH1 and ZH2 hydraulic ports
Z Depending on the attachments used the
buttons (148, 149) and the lever (75) are
assigned the function of the attachment. Levers
that are not required are void. For connections
(see "Assembly and hydraulic ports of additional
attachments" on page 100).
Procedure
• Operating hydraulic port ZH1:
Press button (148) or button (149).
• Operating hydraulic port ZH2:
Set the MULTI-PILOT (75) to neutral and then
turn it clockwise or anti-clockwise while at the
same time pressing the button (83).
The attachment performs its operation.
148
149
148
149
75
83
