6 Maintenance and repairs
6.1 Preparing the truck for maintenance and repairs
All necessary safety measures must be taken to avoid accidents when carrying out
maintenance and repairs. The following preparations must be made:
Procedure
• Park the truck securely, (see "Parking the truck
securely" on page 76).
• Fully lower the load handler.

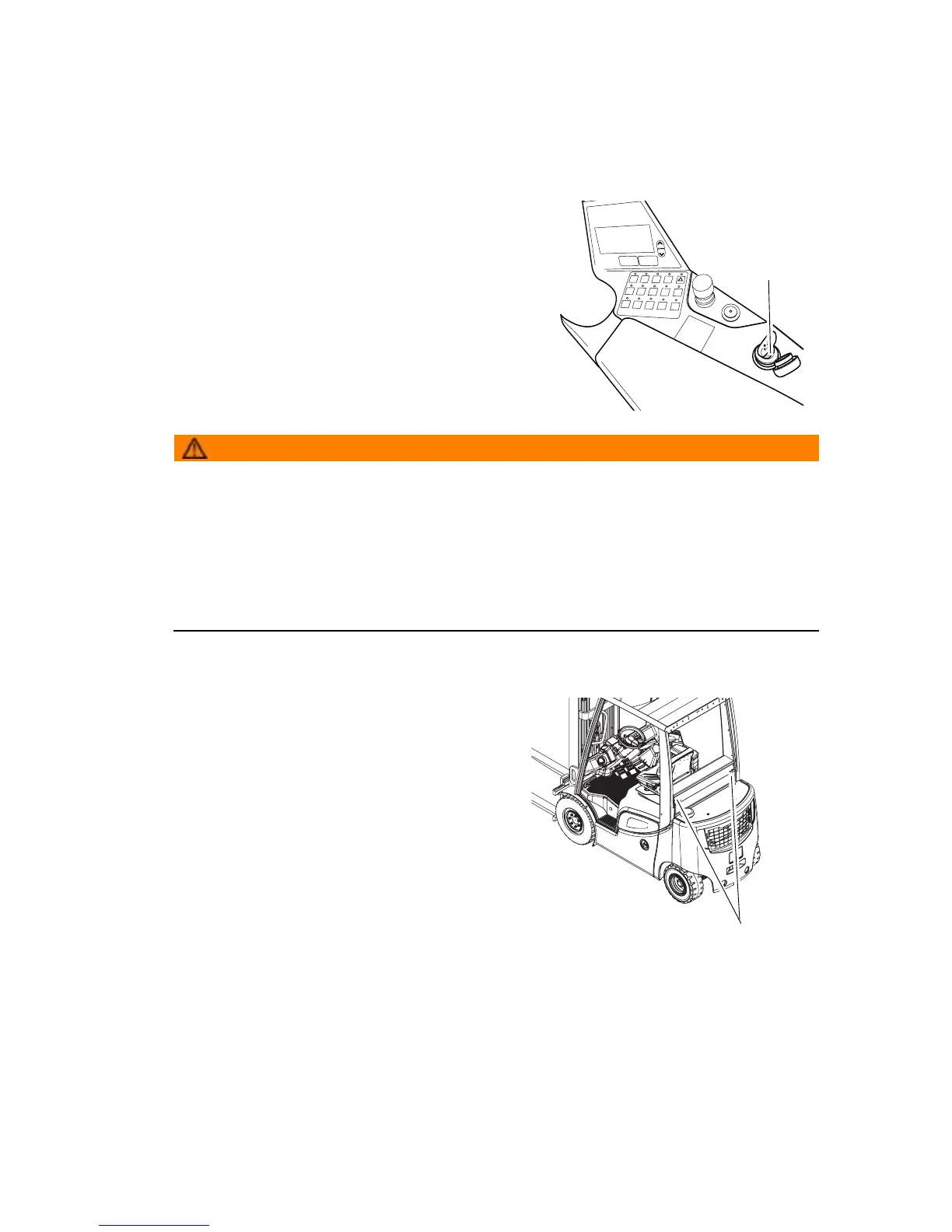

• Remove the key from the key switch (79) to
prevent the truck from being switched on
accidentally.
WARNING!
Risk of accidents when working under the load handler, driver's cab and lift
truck
XWhen working under a raised load handler, driver's cab or a raised truck, secure
them to prevent the truck from from lowering, tipping or sliding away.
XWhen raising the truck, follow the instructions, (see "Lifting the truck by crane" on
page 34). When working on the parking brake, prevent the truck from accidentally
rolling away (e.g. with wedges).
6.2 Opening the rear panel
Opening the panel
Requirements
– Prepare the truck for maintenance and
repairs ((see "Preparing the truck for
maintenance and repairs" on page 151)).
Procedure
• Undo the two quick release fasteners (191).
• Pull the rear panel back and remove it
The rear panel is now open. The fuses and
other electrical components can now be
reached.
S
T
A
R
T
79
191
